| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-26 |
| Minimum Order Quantity: | negotiable |
| Price: | 29-299 USD/PCS |
| Packaging Details: | Paper gift box, 8 PCS/Carton |
| Delivery Time: | 14 Days |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Voltage Related: | 12/24V DC; 24V DC (PTC) | Stroke: | 25~600mm |
|---|---|---|---|
| Max Load: | 6,000N (push); 3,500N (pull) | Max. Speed At Max. Load: | 3mm/s |
| Max. Speed At No Load: | 30.2mm/s | IP Rating: | IP66W |
| Warranty: | 1 Year | Customization: | Available |
| Highlight: | 6000N Electric Linear Actuator,3mm/s Electric Linear Actuator,24V DC Electric Linear Actuator |
||

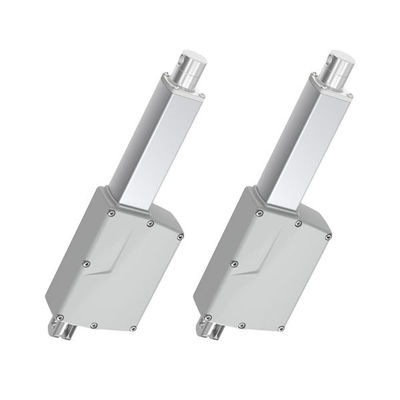

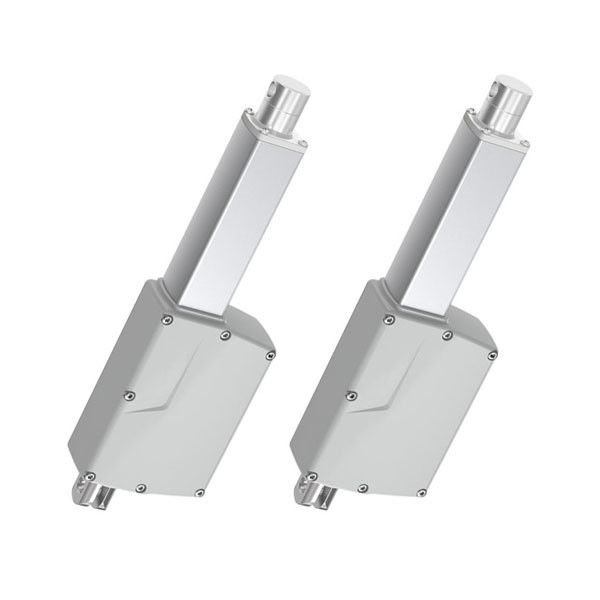

The LS-PAT-26 electric linear actuator is one of our new generation medical DC linear actuators, which can lift up to 6000N, yet has a small installation dimension. In addition to this, its IP rating is up to IP66W. The LS-PAT-26 is highly recommended for various medical applications that require a short retracted length, yet need to support a large force, such as the leg adjustment or sling angle actuator on the patient hoist system.
| Linear Actuator | LS-PAT-26 |
| Voltage of motor | 12/24V DC; 12/24V DC (PTC) |
| Stroke | 25-600mm |
| Maximum load | 6,000N (push); 3,500N (pull) |
| Maximum speed at full load |
3mm/s |
| Retracted length | ≥ 178mm (depending on chosen options) |
| Options | Hall sensors, POT |
|
Operational temperature range |
5℃-45℃ |
Applications:
Highly recommended for various medical applications that require a short retracted length, yet need to support a large force, such as the leg adjustment or sling angle actuator on the patient hoist system.
Drawing Of Electric Linear Actuator
Standard Dimensions (mm)
