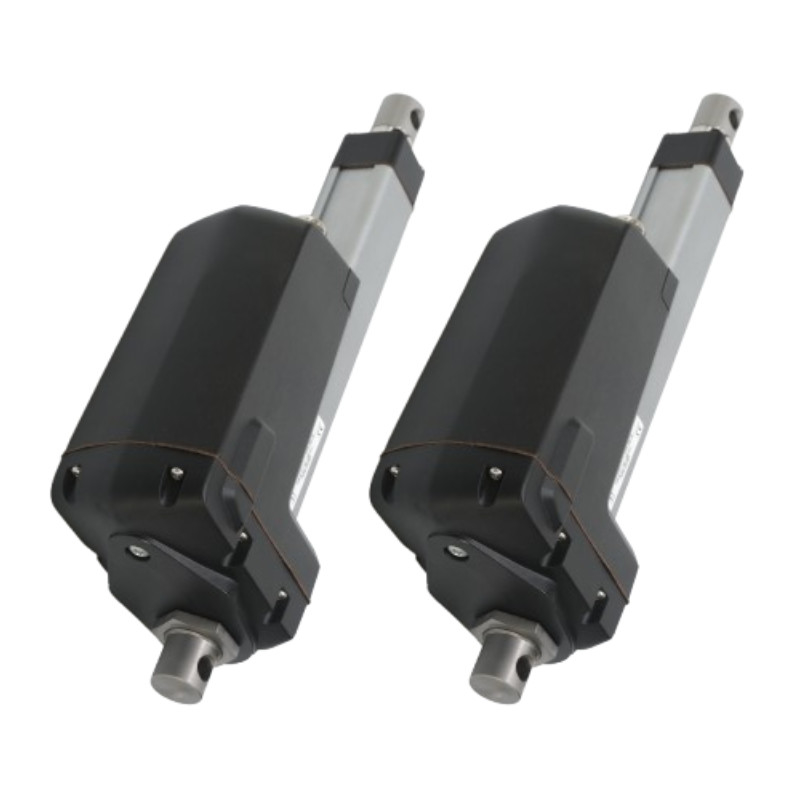

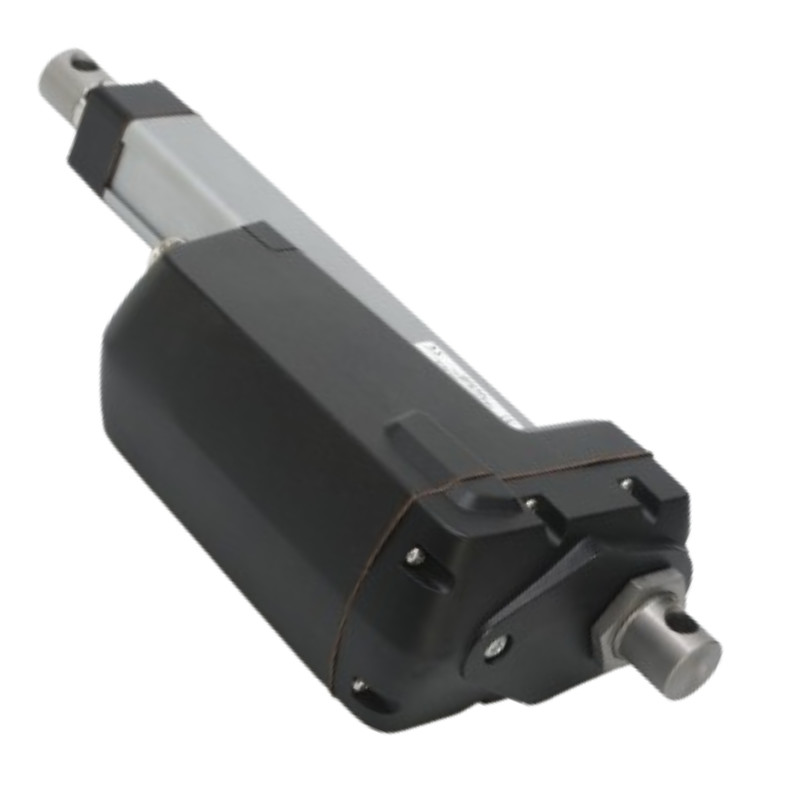

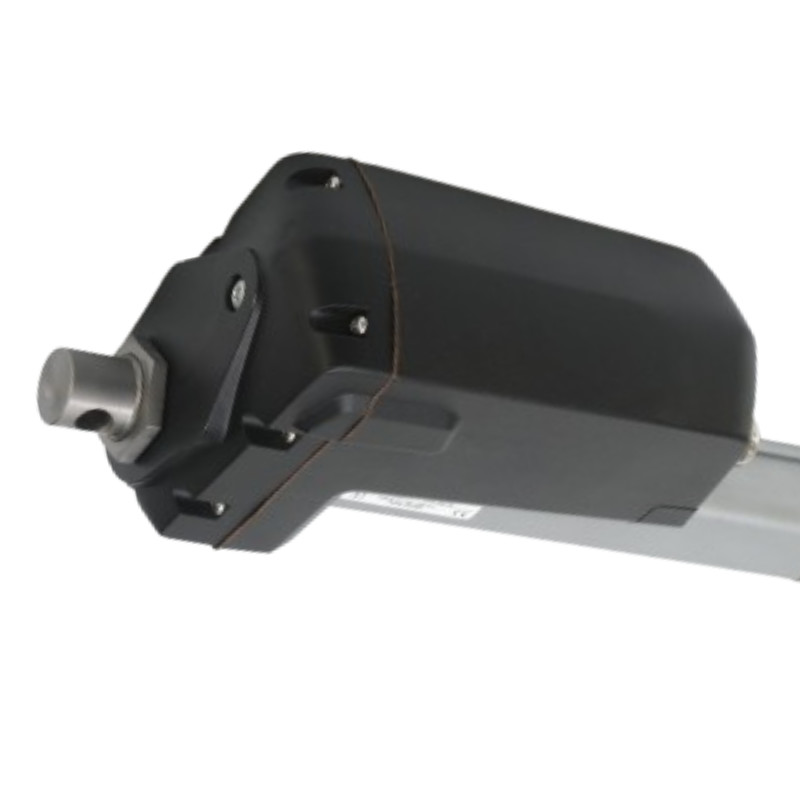

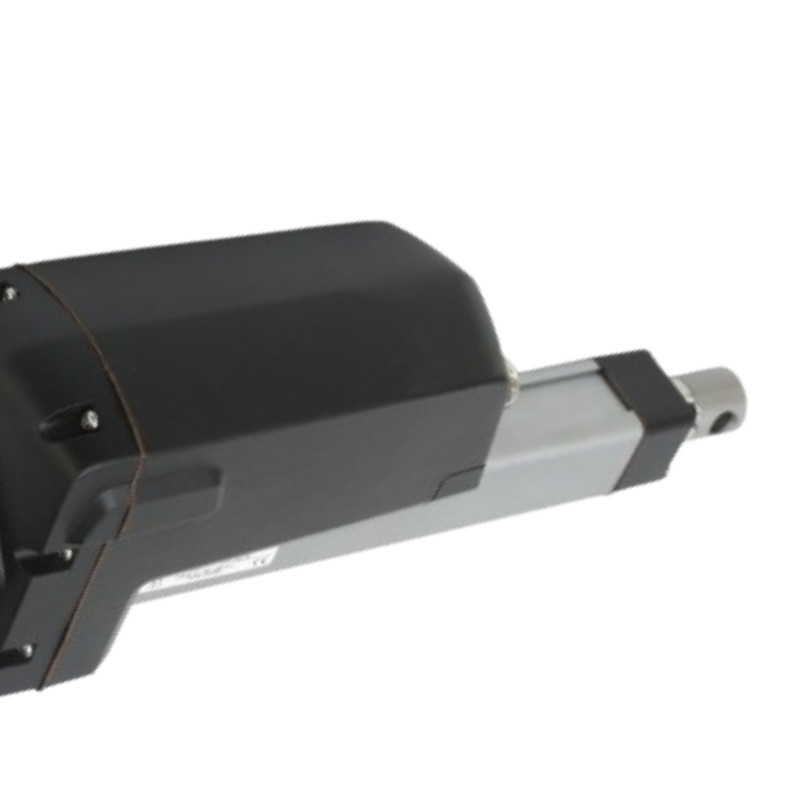

Heavy-duty Actuator 12V/24V DC 2640lb Load Force Waterproof IP66 Industrial Application

Basic Information

Place of Origin:	China
Brand Name:	Linsheng Auto II MaxM
Model Number:	LS-PAT-HD3

Minimum Order Quantity:	1 piece
Price:	20~399USD/PC
Packaging Details:	Carton
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T, PayPal
Supply Ability:	1000pcs/month

Get Best Price Contact Now

Voltage:	12V/24V DC	Max.load:	12000N
Max. Speed At Max. Load:	4.5mm/s	Limit Switch:	Built-in
IP Rating:	IP66	Output Signal:	Hall/Pot
Stroke:	50~1000mm	Feature:	Overload Clutch Protection
Max. Current Of Cnotroller:	16.5A	Frequency:	433.92MHz
Remote Range:	50meters	Highlight Of Controller 1:	Synchronize Two Hall Actuators In Any Situation
Highlight Of Controller 2:	4 Position Programmable And Storagable	Customization:	Support
Highlight:	12V/24V DC Linear Actuator , Remote Control Kit Linear Actuator , Motorized Tv Lift Cabinet Linear Actuator

Heavy-duty Actuator 12V/24V DC 2640lb Load Force Waterproof IP66 Industrial Application

Description:

Linsheng Auto Heavy-duty actuator LS-HD3 is a powerful linear actuator designed for high-load applications, delivering a robust pushing force of up to 12,000N (2640lb). With a customizable stroke range from 50mm to 1000mm and a durable IP66-rated housing for reliable waterproof and dustproof protection.Ideal for industrial machinery, special vehicles, and other heavy-duty applications.

Main Features:

1. Heavy-duty linear actuators with high loading force up to 12000N (push)

2. Stroke range from 50~1000mm

3. Waterproof and dustproof housing, IP rate is IP66

4. Electronic Protection

5. Widely applied to industry equipment, special vehicles and high load output cases

Specifications:

Model	LS-HD3
Voltage	12V/24V DC
Max. Loading force	12000N (push)
Max. speed at max. load	4.5mm/s
Stroke range	50~1000mm
Limit switch	Built-in
Waterproof rating	IP 66
Output signals	Hall/ POT
Overload protection	Electronic Protection
Duty cycle	25%
Working temperature	-40℃-65℃
Noise level	≦65dB

Application:

Heavy machinery such as construction machinery, mining machinery, agriculture machinery

Heavy-duty Actuator 12V/24V DC 2640lb Load Force Waterproof IP66 Industrial Application 0

Heavy-duty Actuator 12V/24V DC 2640lb Load Force Waterproof IP66 Industrial Application 2
