QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE,FCC by SGS |
| Model Number: | LS-RSK-6s+LS-PAT-HD2 |
| Minimum Order Quantity: | 1 piece |
| Price: | 20~399USD/PC |
| Packaging Details: | Plain box |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24V DC | Max.load: | 12000N |
|---|---|---|---|
| Max. Speed At Max. Load: | 4.5mm/s | Limit Switch: | Built-in |
| IP Rating: | IP65 | Output Signal: | Hall/Pot |
| Stroke: | 50~1000mm | Feature: | Overload Clutch Protection |
| Max. Current Of Cnotroller: | 16.5A | Frequency: | 433.92MHz |
| Remote Range: | 50meters | Highlight Of Controller 1: | Synchronize Two Hall Actuators In Any Situation |
| Highlight Of Controller 2: | 4 Position Programmable And Storagable | Customization: | Support |
| Highlight: | 12V/24V DC Linear Actuator,Remote Control Kit Linear Actuator,Motorized Tv Lift Cabinet Linear Actuator |
||
Heavy Duty Linear Actuator 12V/24V DC Remote Control Kit For Motorized Tv Lift Cabinet
Description:
With Linsheng Linear Actuator Remote control Kit, you can upgrade your operations to automation easily where power, precision, and protection converge for unparalleled performance. The DC 12V~28V compact control unit is compatible with most electric actuators no matter they with or without limit switch.
Main Features:

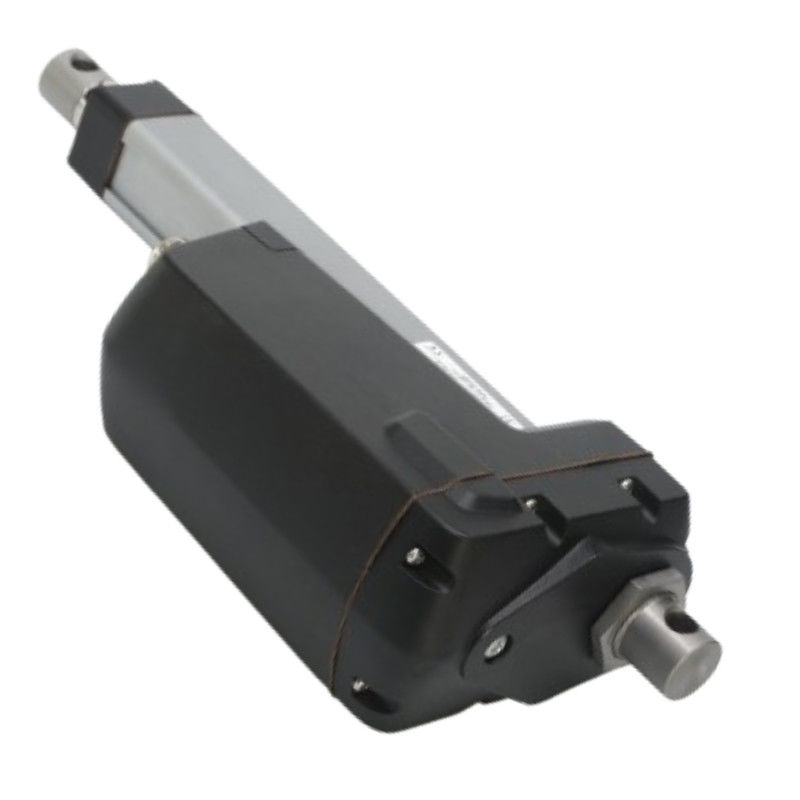

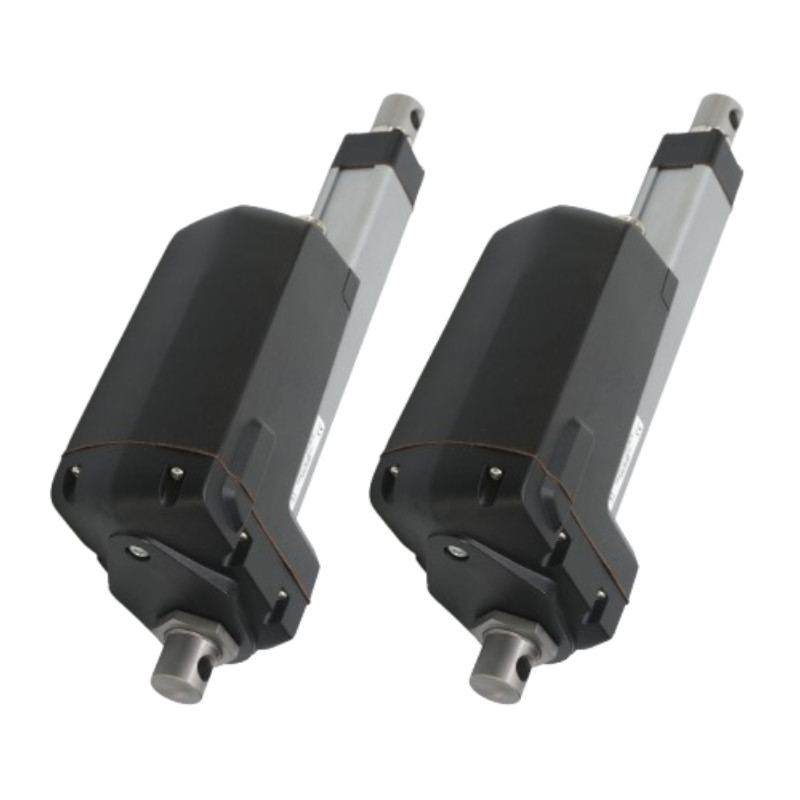

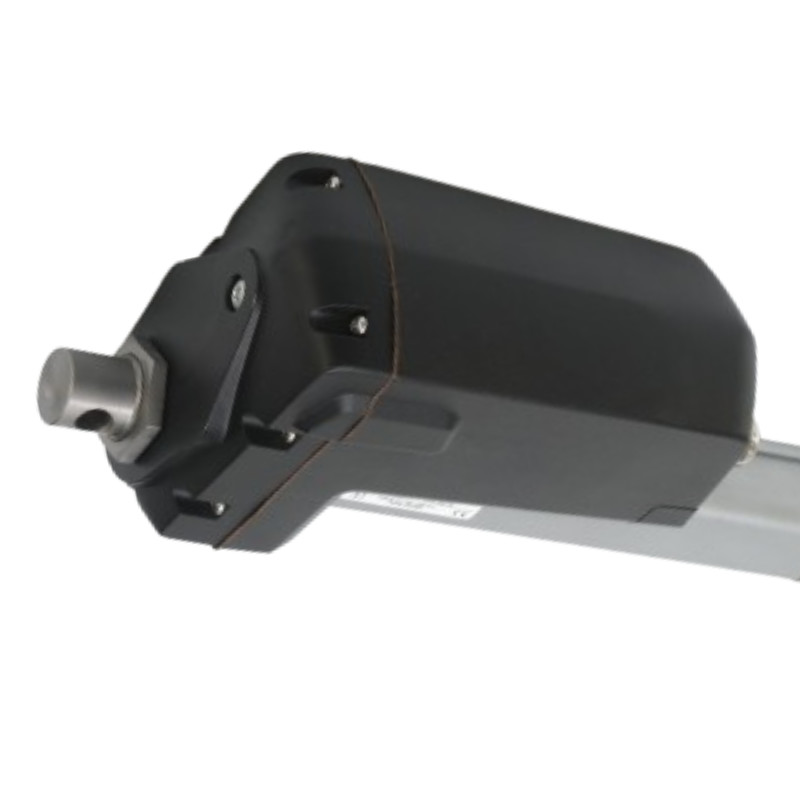

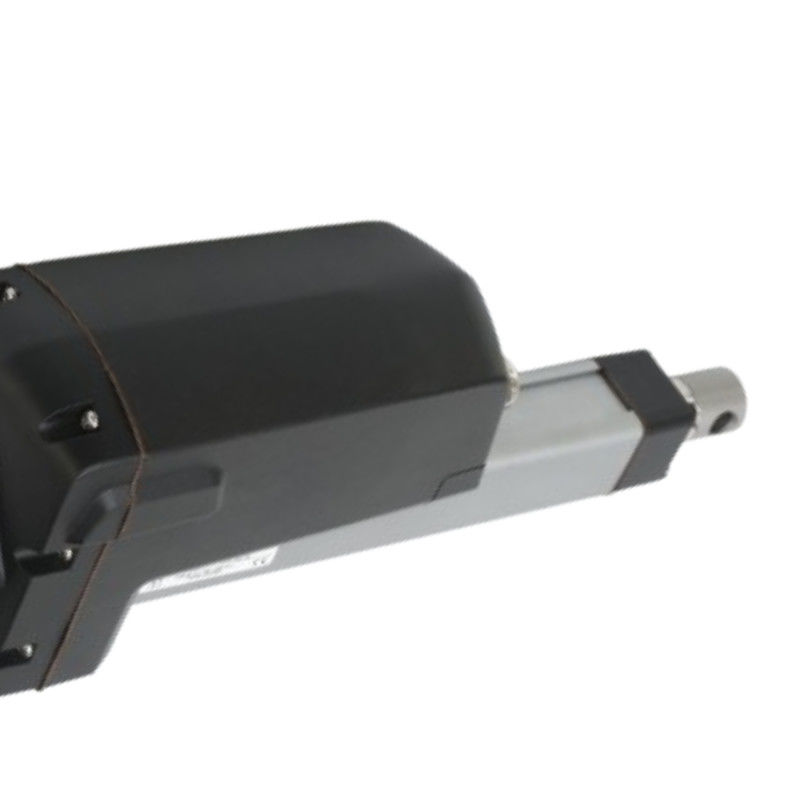

Electric Actuators
1. Heavy-duty linear actuators with high loading force up to 12000N (push)
2. Stroke range from 50~1000mm
3. Waterproof and dustproof housing, IP rate is IP65
4. Overload cluth protection
5. Widely applied to industry equipment, special vehicles and high load output cases
Actuators controller:
| Parameters | Linear actuators | Control Unit |
| Voltage | 12V/24V DC | 12V~28V DC |
| Max. Loading force | 12000N (push) | / |
| Max. speed at max. load | 4.5mm/s | / |
| Stroke range | 50~1000mm | / |
| Limit switch | Built-in | / |
| Waterproof rating | IP 65 | / |
| Output signals | Hall/ POT | Hall |
| Max. current | / | 16.5A |
| Remot range | / | 50meters |
| Frequency | / | 433.92MHz |
| Certification | CE | CE,FCC by SGS |
Application:
DIY motorized TV lift cabinet; Smart Kitchen; Door Opener
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
