QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-2 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 20~299/PC |
| Packaging Details: | Carton box |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | DC Power Supply 12V / 24V | Stroke: | 1''~ 39'' ( Customized) |
|---|---|---|---|
| Max. Load: | 100KG | Max. Speed At Max. Load: | 7.6mm/s |
| Max. Speed At No Load: | 67.5mm/s | Retracted Length: | ≥ Stroke + 4.13'' (without Output Signals) |
| IP Rating: | IP66M | Output Signals: | POT / Hall (Optional) |
| Color: | Silver | Working Temperature: | -25˚C~+65˚C |
| Highlight: | DC 12V Electric Actuators,Outdoor Electric Actuators,24V Electric Actuators |
||

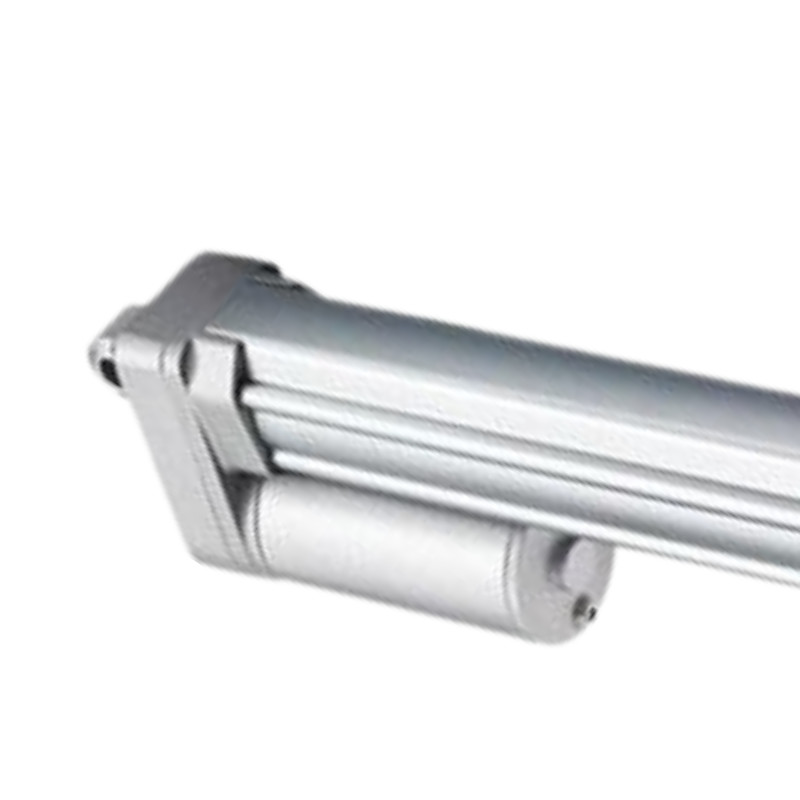

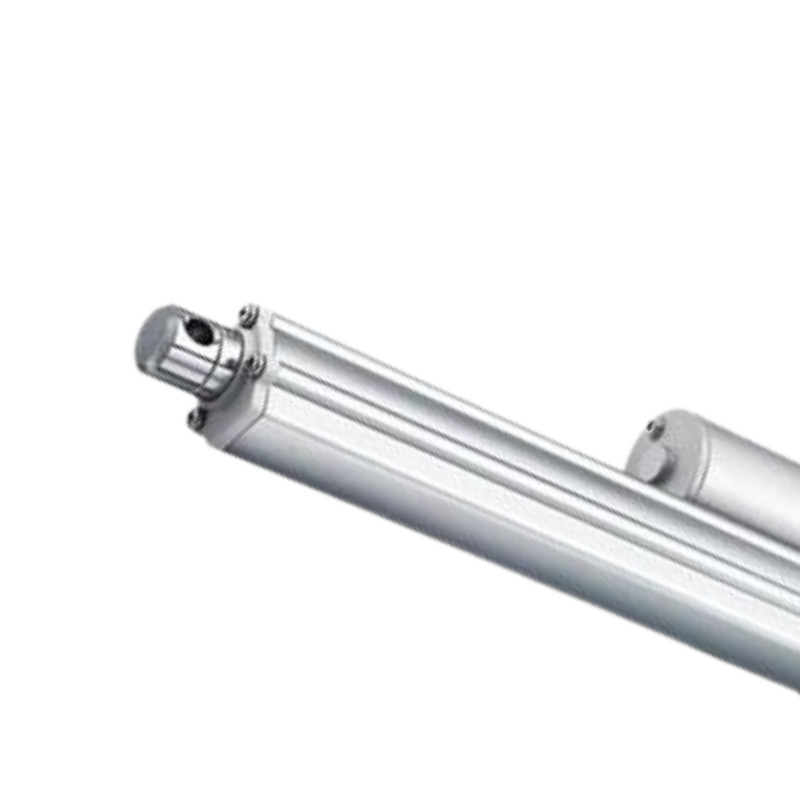

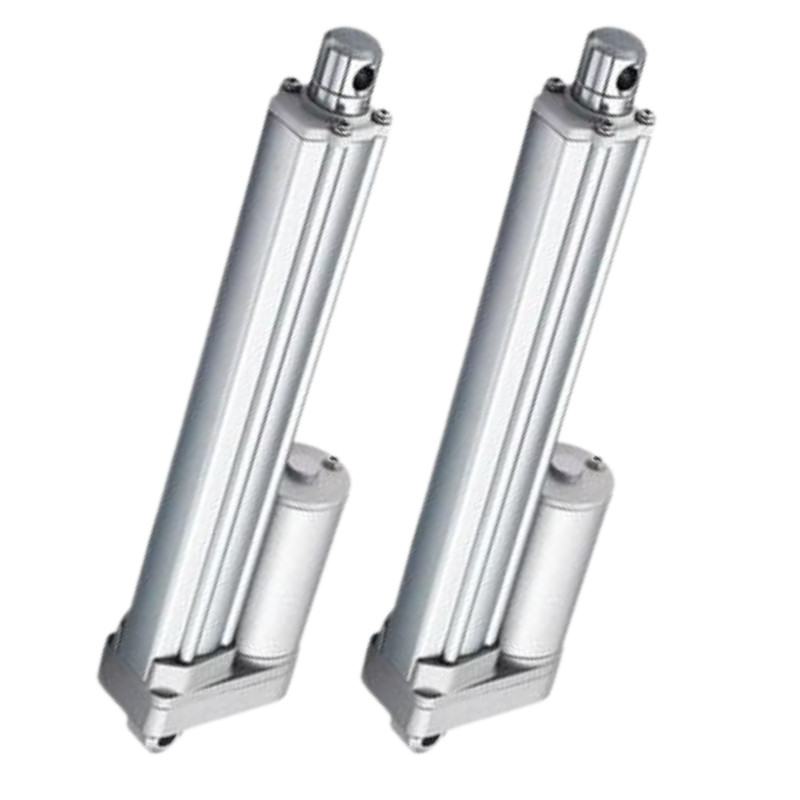

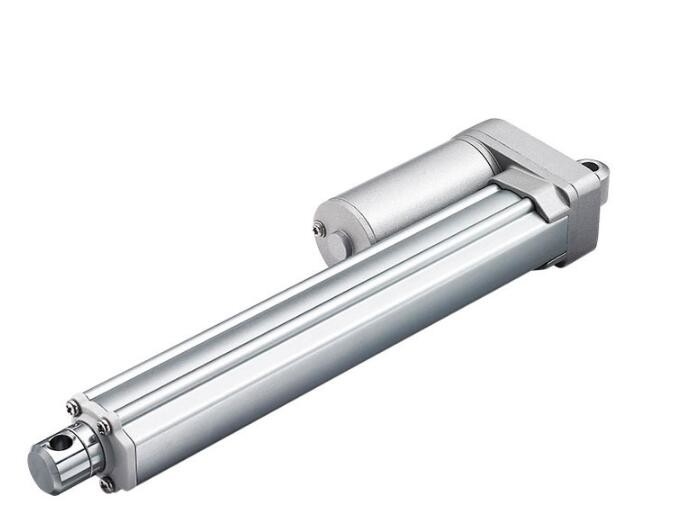

DC 12V 24V Compact Electric Actuators Hall Sensor Built-in Waterproof Outdoor
The LS-PAT-2 electric linear actuator epitomizes a blend of sleek design and durability, engineered to excel in outdoor environments. Tailored for tight spaces demanding robust strength and high performance, it features versatile enhancements including feedback sensors, limit switches, and a convenient 90-degree clevis mounting option.
Specification:
Features:

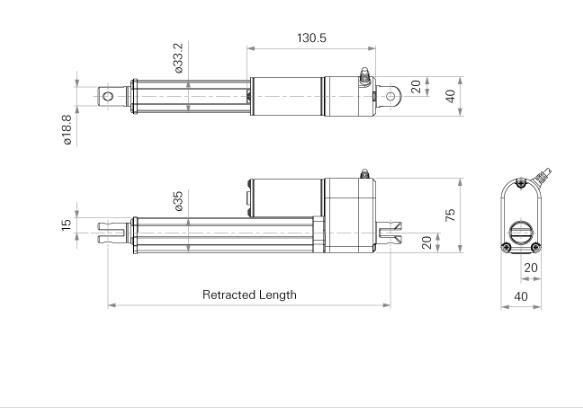

Standard diamension with signal output (mm)
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
