2 Channel Electric Actuator Controller 12V 24V DC Wired Switch Remote Control

2 Channel Electric Actuator Controller 12V 24V DC Wired Switch Remote Control

Linsheng Dual Actuator Control Box LS-RSK-H1 works with a wide range voltage from 12V DC to 28V DC, also it supports wireless remote control as well as wired hard switch operation. With its overloading safety protection function, your actuators and controller will be protected well no matter which actuator is overloading. If you need a device to synchronize two heavy-duty actuators, it will be your best match.

Specifications:

• Model : Synchronous controller- LS-RSK-H1
• Working Voltage:  Wide range from 12V ~28V
• Max. current: 12.5 / Channel)
• Frequency: 433.92MHz
• Remote range: 100 ft
• New remotes; Programmable
• Control way: Wired rocker switch & Wireless remote control
• Remote option: press once  / keep pressing and hold on
• Certification: CE, FCC

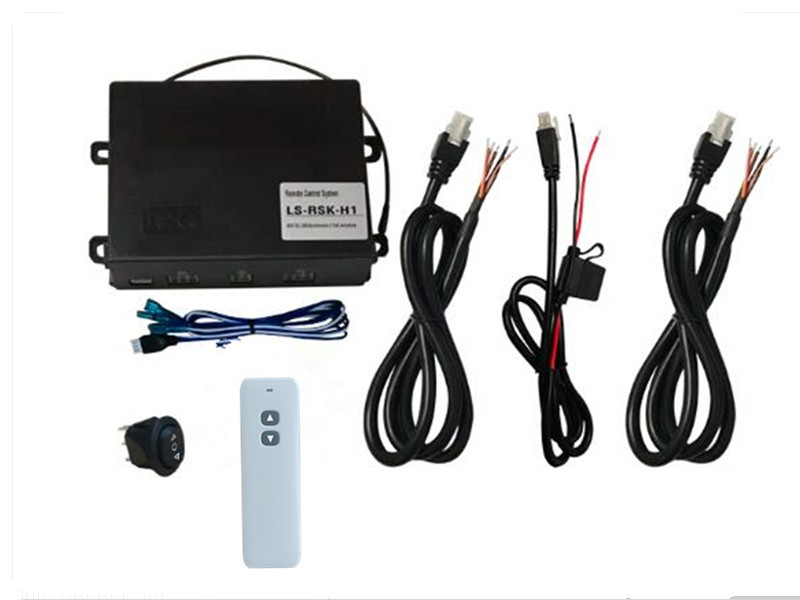

• Package: 1 * controller + 1 * power cable+ 2* remote control + 1* rocker switch + wiring harness

Features:

• Support industrial actuators, the max. current up to 25A in total
• Wired and wireless operation method for your choice
• Overloading safety built-in and the Amps value is ajustable/ customized
• DC 12V~28V wide working voltages in one mini box
• Easy to setup, play and play

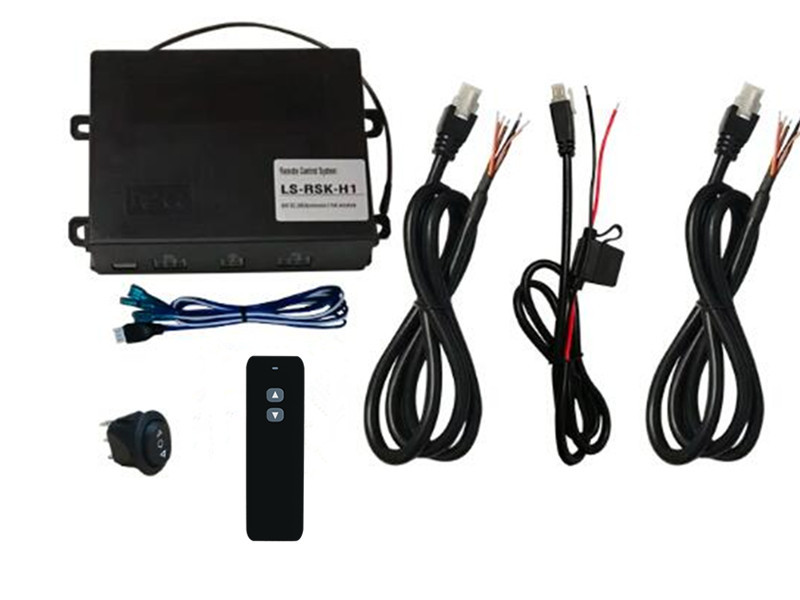

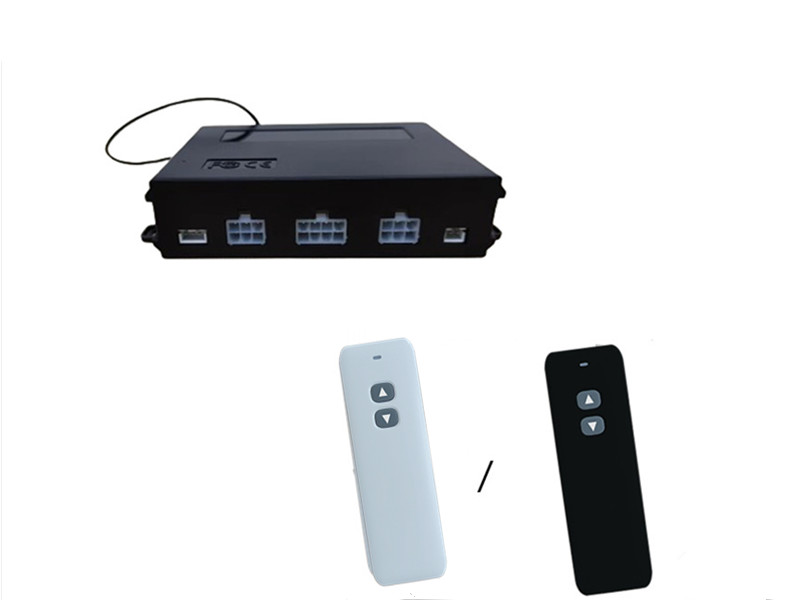

More photos:

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
