QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-81 |
| Minimum Order Quantity: | 1 piece |
| Price: | $179~$399/pc |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24VDC | Stroke: | 100~1000mm |
|---|---|---|---|

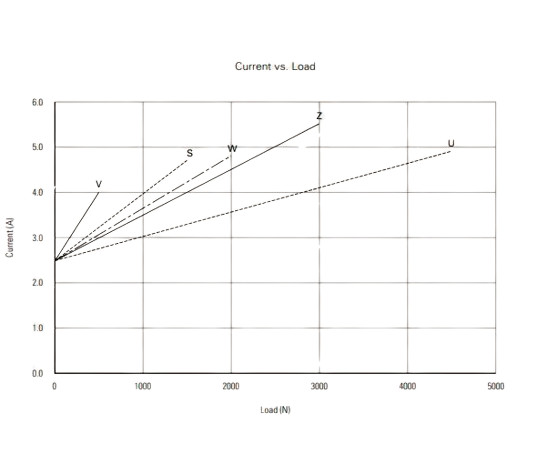

| Loading: | 500N/1500N/2000N/3000N/4500N | Current: | Less Than 6A At Max. Load |
| Max. Speed: | 6.6mm/s (max. Load); 45mm/s (no Load） | Retracted Length: | ≥ Stroke+147mm |
| Signal Output: | Hall Sensor | Applications: | Workstations / Stands / TV Lifts |
| Highlight: | Synchronized Control System Electric Lifting Columns,Hall Effect Electric Lifting Columns,Telescopic Electric Lifting Columns |
||

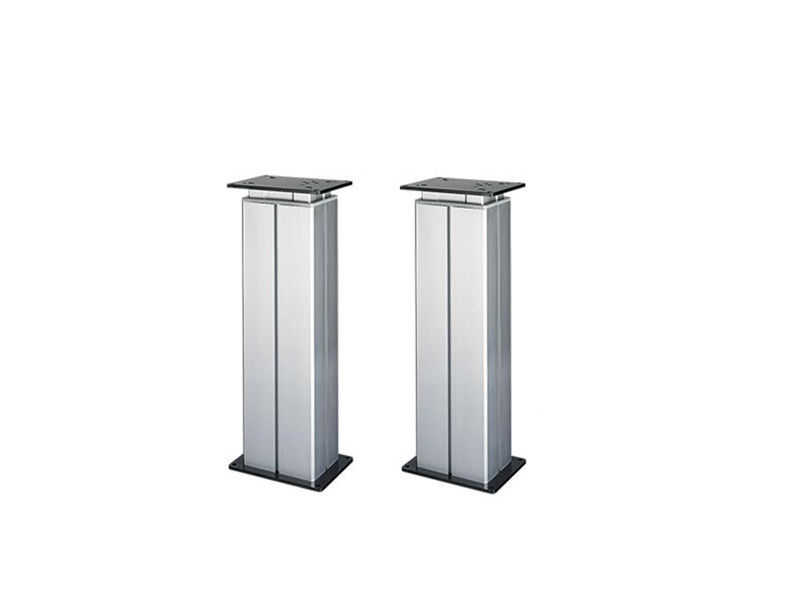

Telescopic Electric Lifting Columns Hall Effect Synchronized Control System
Engineered for medical use, this electric telescopic column is ideal for devices like ophthalmological tools and X-ray machines, along with industrial workstations. The column's extruded aluminum rectangular structure combines high load capacity with affordability, delivering consistent vertical lifting performance.
Note:
The lifting columns are tailored products, the price and specification for reference only.
We have different kinds of controllers that can work with the electric lifting columns, feel free to reach out for more information.
Features:
- Impressive Load Support: Designed to handle weights of up to 4500N, ensuring reliable performance for demanding applications.
- Robust Build Quality: Constructed from durable extruded aluminum, these lifting columns offer exceptional strength and resilience.
- Versatile Height Adjustability: Features a flexible height range, allowing users to easily customize the elevation to suit their specific needs.
- Minimal Upkeep: With a design focused on efficiency, these electric lifting columns require little maintenance, saving time and reducing operational costs.
Applications:
- Home Automation:
Adjustable kitchen countertops and islands
Home office furniture for ergonomic setups
- Theater and Event Equipment:
Adjustable stages and platforms
Audio/visual equipment stands
Specifications:
| Models | LS-PAT-81 ( 2-stage lifting columns) |
| Voltage | DC 12V/24V |
| Loading | 50KG /150KG /200KG /300KG/ 450KG |
| Stroke | 100mm~1000mm |

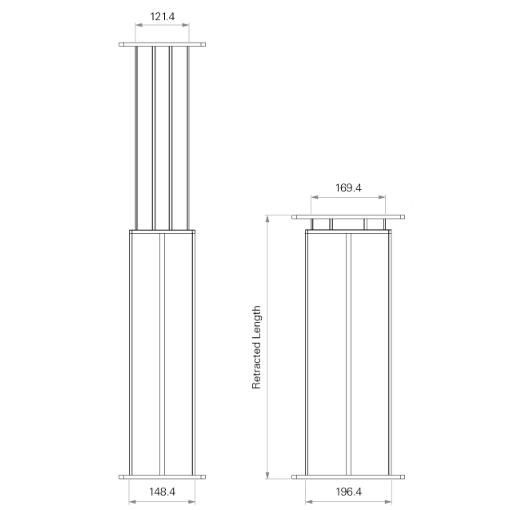

| Mini. installation (Retracted length) | ≧Stroke+147mm |

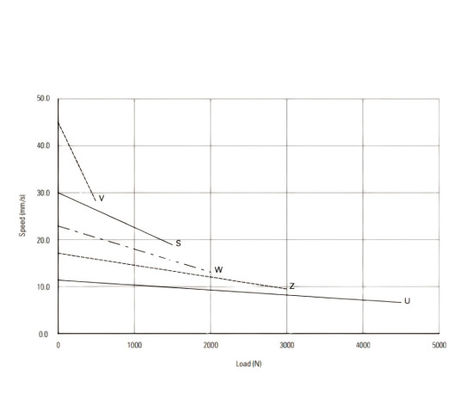

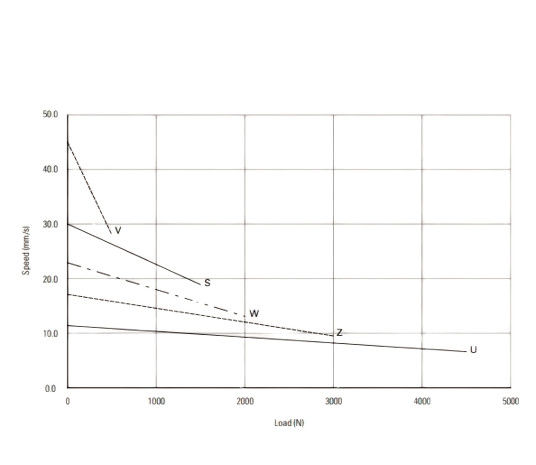

| Max. speed at max. load | 6.6mm/s |
| Max. speed at no load | 45mm/s |
| Signal output | Hall sensor |
| Color | Black / Silver |
| Options |
1. Small/big plate for up/bottom plates 2. Bottom side cable / up side cable exits 3. Different length of the cable |

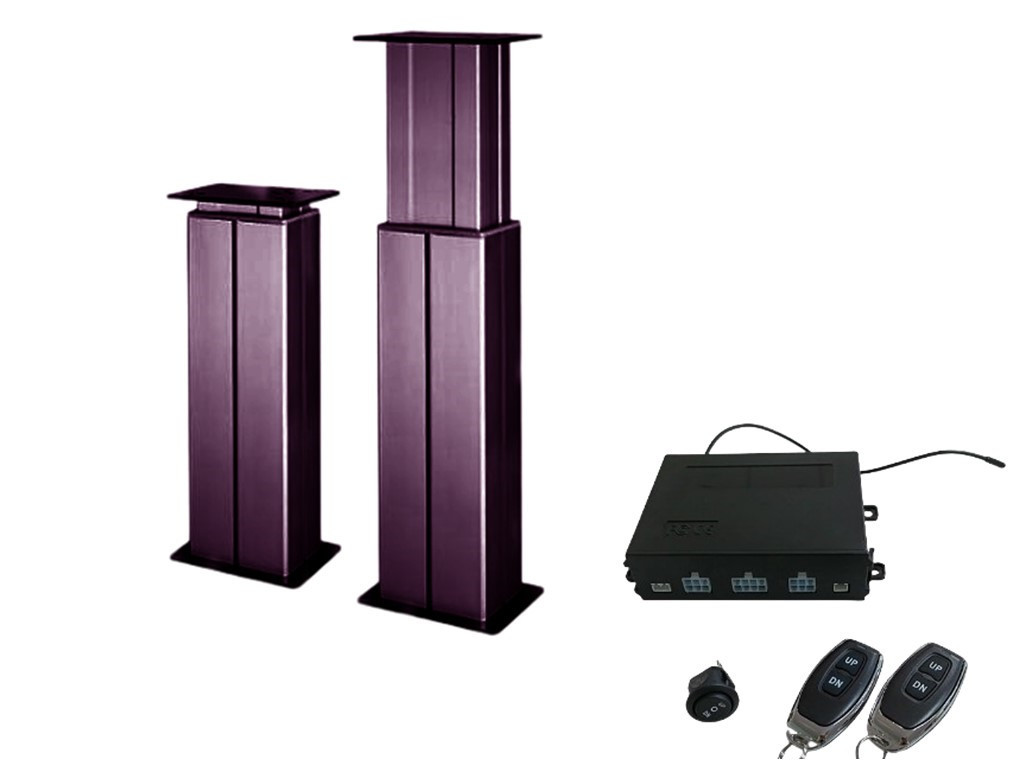

Compatible with LINSHENG 2CH Hall effect synchronized controller LS-RSK-H1, you can operate them easily!
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
