| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-30 |
| Minimum Order Quantity: | 1 |
| Price: | US$199~US$499/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Working Voltage: | 12VDC / 24VDC | Loading Force: | 4000N (Push) |
|---|---|---|---|
| Self-locking Force: | 4000N | Max. Speed: | 13.7mm/s (at Full Load); 45mm/s (at No Load) |
| Retracted Length: | ≧Stroke/2 + 150mm | Out Tube Size: | Outer Profile: 177.4*150.7mm （rectangular） |
| Stroke: | 250~1200mm | Color: | Black / Silver |
| Output Signals: | Hall Sensors | ||
| Highlight: | DC 12V Lifting columns,900lb Loading Lifting columns,3-Stage Lifting columns |
||

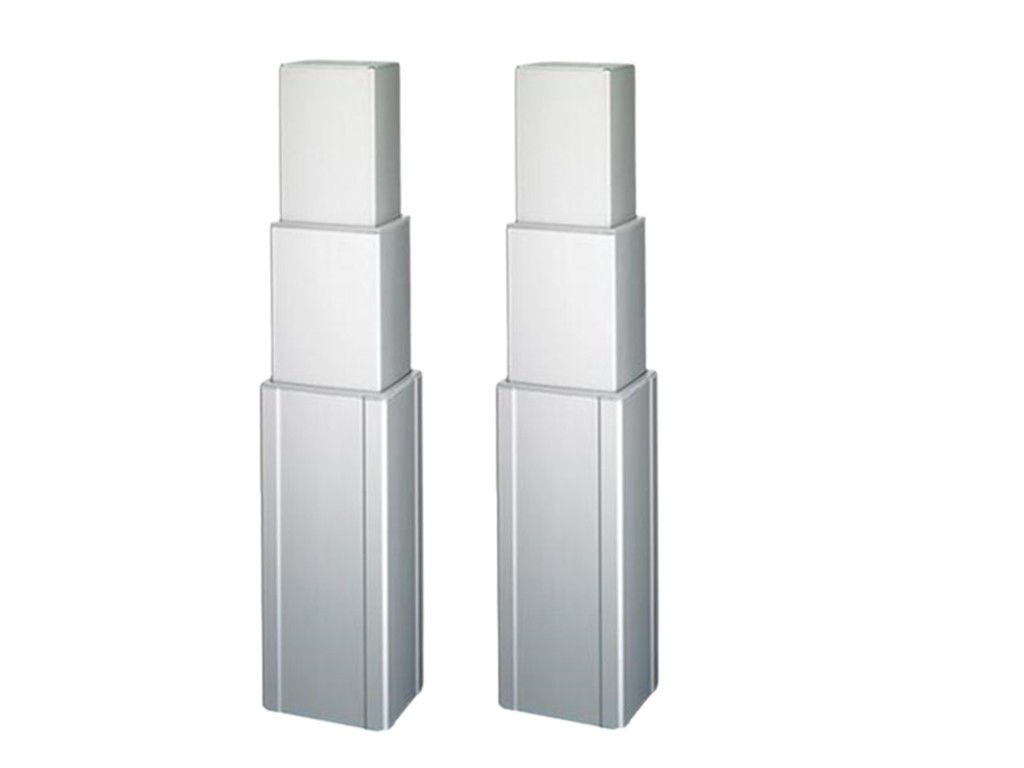

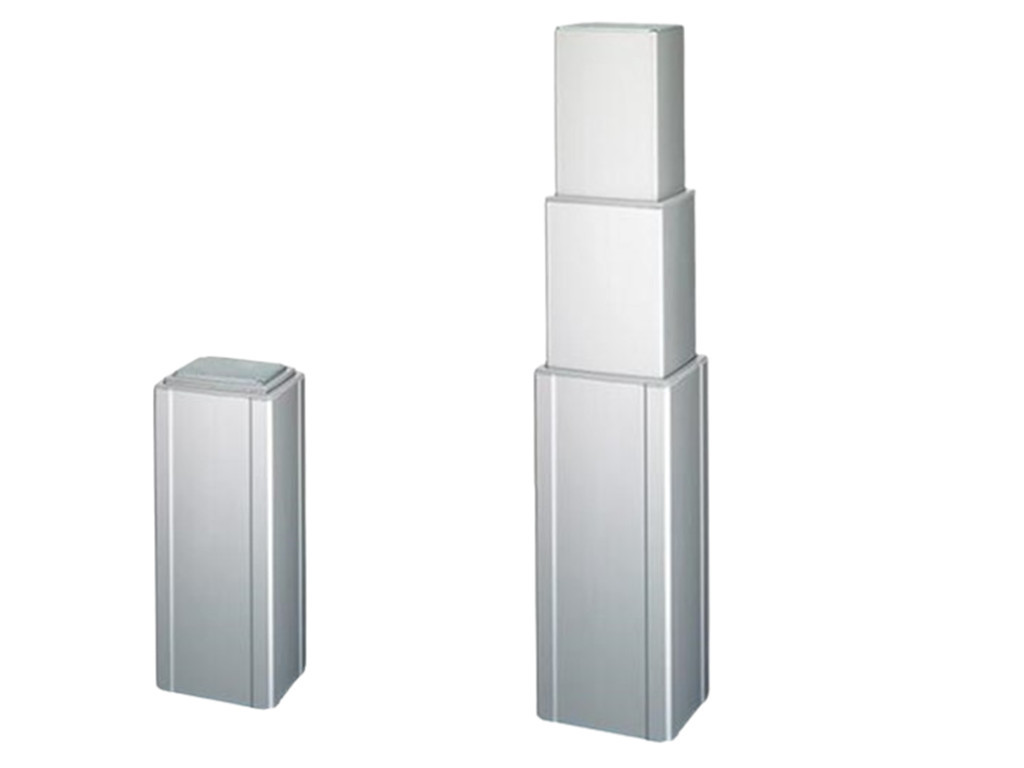

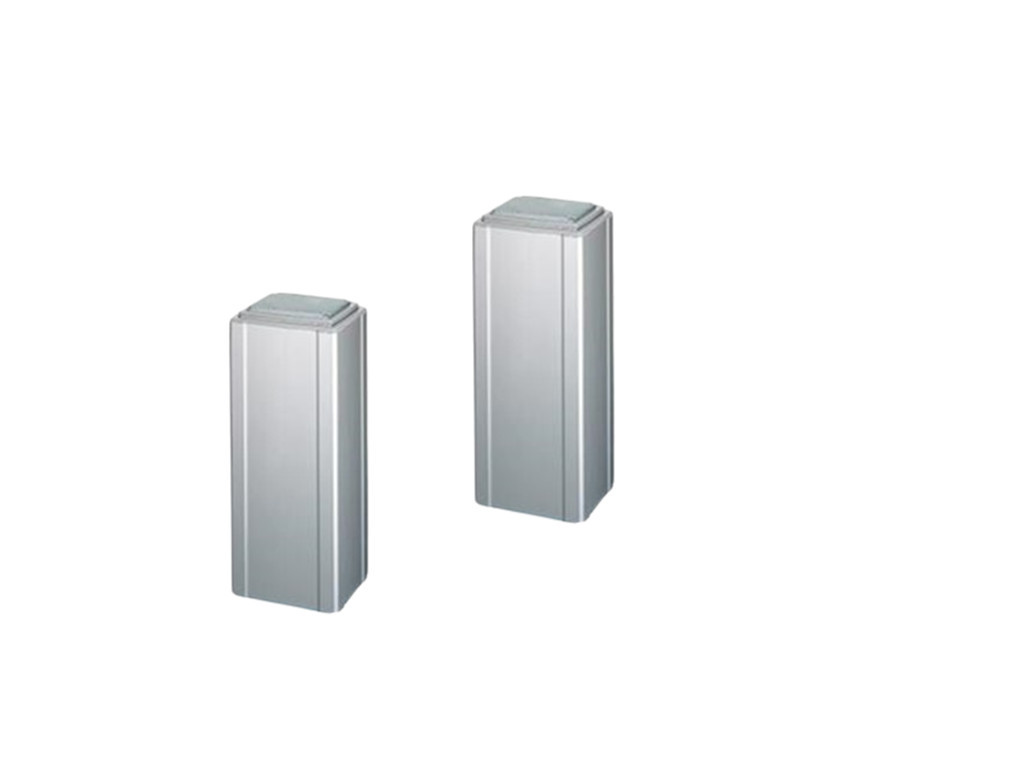

Electric Workstation Lifting columns 3-Stage DC 12V 900lb Loading
These electric telescopic columns consist of three rectangular extruded aluminum tubes, providing excellent stability and a significant lifting range while minimizing retracted length. This electric lifting column seamlessly integrates into various height-adjustable workstation setups, including exam chairs in the healthcare sector.
NOTE:
The lifting columns are tailored products, so the price and specifications are for reference only.
Please tell us the parameters of the lifting columns you need, we can recommend one that suits you best.
Specifications:
| Models | 3-stage lifting column actuators LS-PAT-30 |
| Working voltage | 12V DC |
| Thurst | 1000N / 2000N / 4000N |
| Stroke | 250mm~ 1200mm |
| Retracted length | ≧Stroke/2 + 150mm |
| Signal output | Hall sensors feedback |
| Color | Black / Silver |
| Cable exit | Bottom side cable / Top side cable |
Main features:

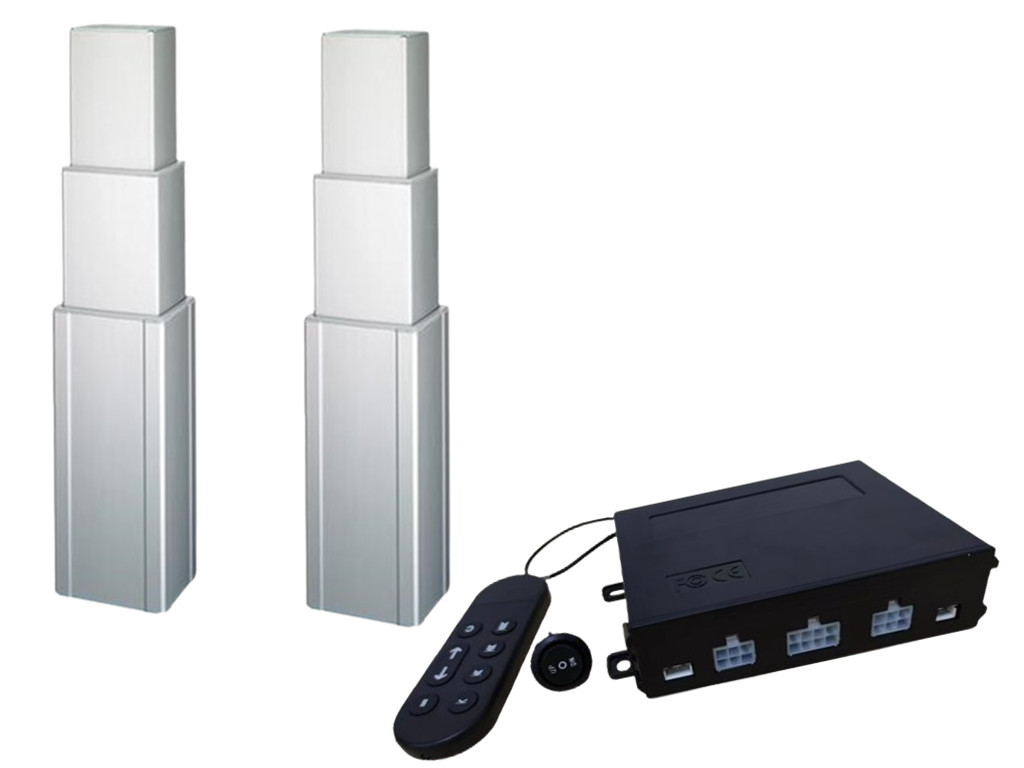

Compatible synchronous controllers from LINSHENG AUTO:
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
