QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-INLA-6 |
| Minimum Order Quantity: | Negotiable |
| Price: | 20-299 USD/PCS |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Product: | DC Wateproof Actuator | Working Volts: | 12/24V DC |
|---|---|---|---|
| Max. Thrust: | 3000N (push/pull) | Stroke: | 25~1000mm |
| Retracted Length: | ≥ Stroke + 227mm | Max. Speed: | 3.5mm/s (full Load): 8.5mm/s(no Load) |
| Waterproof: | Up To IP69K (optional) | Output Signal: | Hall Sensor |
| Customization: | YES | ||
| Highlight: | IP69K Inline DC Actuators,24V Inline DC Actuators,Outdoor Motor Inline DC Actuators |
||

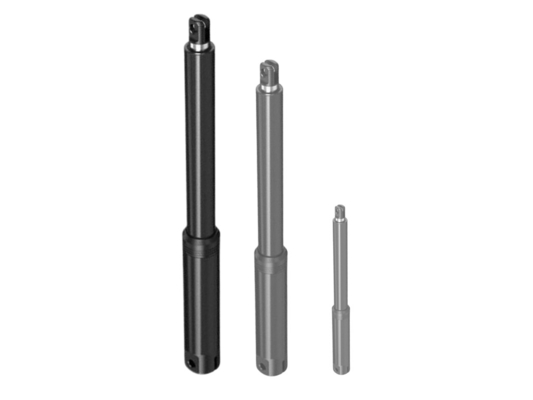

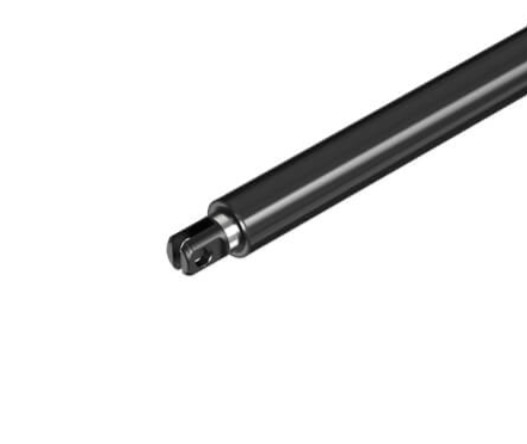

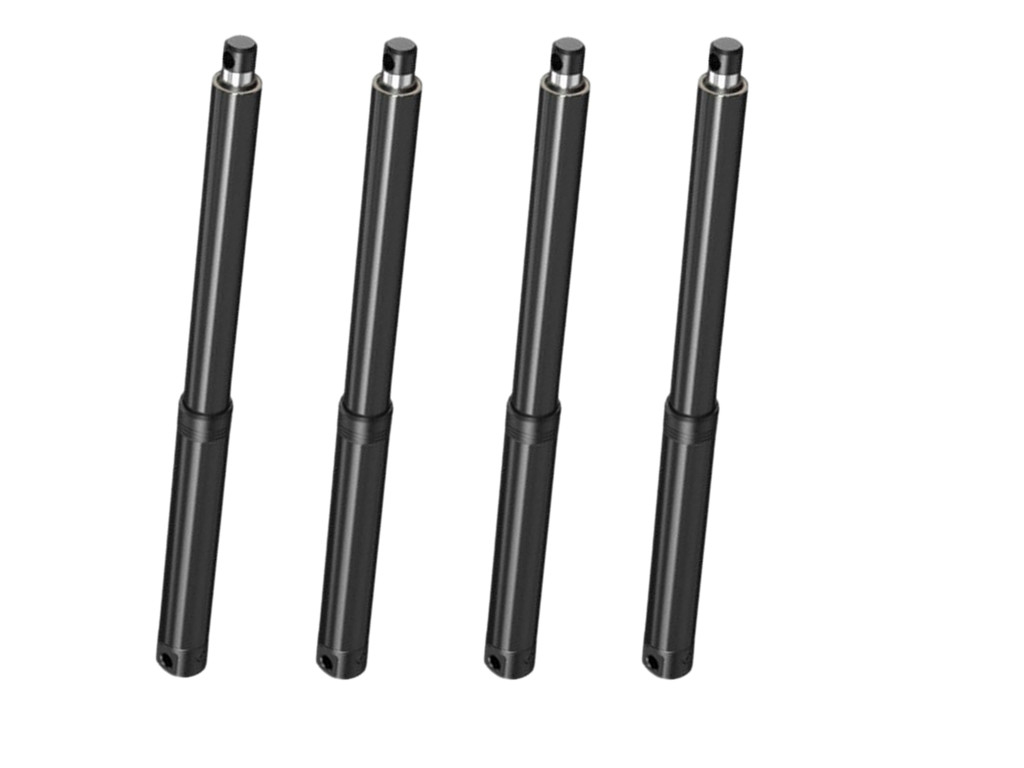

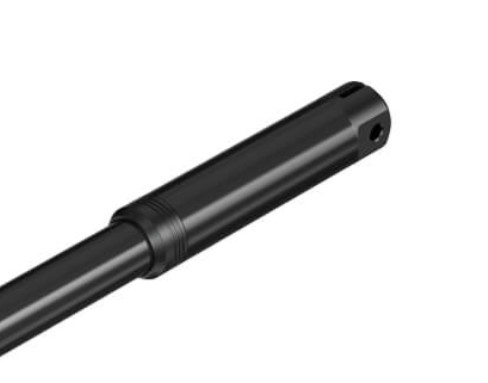

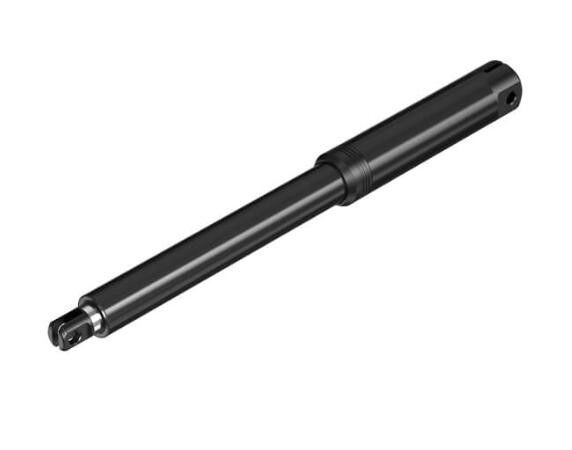

Inline DC Actuators 24V 675lb IP69K Outdoor Motor Adjustable Stroke
Designed for low-load industrial applications, this tubular linear actuator supports up to 330 pounds, making it perfect for installations where space is at a premium. With an IP rating of IP69K, it provides exceptional protection against dust and water, ensuring reliable performance in harsh environments.
NOTE:
1. The products are tailored items, so the price and specification for reference only
2. Please provide us with the specifications of the actuators you need, we can give you some recommendations
Specifications:
| Working voltage | 12V / 24V |
| Max. thrust | 3000N /675lb |
| Max. speed | 3.5mm/s (full load) ; 8.5mm/s ( no load) |
| Stroke | 25mm~ 1000mm |
| Retracted length | ≧Stroke+227mm |
| Diameter | 42mm ( Outer tube) |
| Limit switch | Built in |
| Output signals | Hall sensors |
| Applications | Windows / Doors / Pergola |
Load vs. Speed vs. Current ( 10% Duty cycle; 24V)
| Loading force | Current w/load | Current w/o load | Speed w/ load | Speed w/o load |
| 1000N | 1.5A | 1.0A | 7.5mm/s | 8.5mm/s |
| 2000N | 2.1A | 1.0A | 5.0mm/s | 6.0mm/s |
| 3000N | 2.5A | 1.0A | 3.5mm/s | 5.5mm/s |
Features:

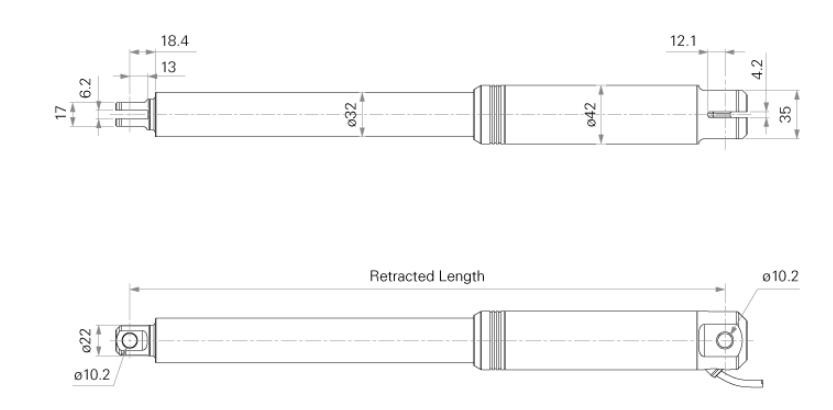

Standard size (mm)
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
