QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-HD3 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 69~299/PC |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V / 24V DC | Max. Load Force: | 12000N |
|---|---|---|---|
| Stroke: | 50mm ~ 1000mm | Retracted Length: | ≧ Stroke + 200mm |
| IP Rating: | IP66 | Duty Cycle: | 25% |
| Motor Type: | Brushed DC | Limit Switch: | Built In |
| Signal Output: | Hall Sensor / Potentiometer | Customization: | Support |
| Highlight: | 12000N Industrial Linear Actuator,24V DC Industrial Linear Actuator,IP66 Industrial Linear Actuator |
||

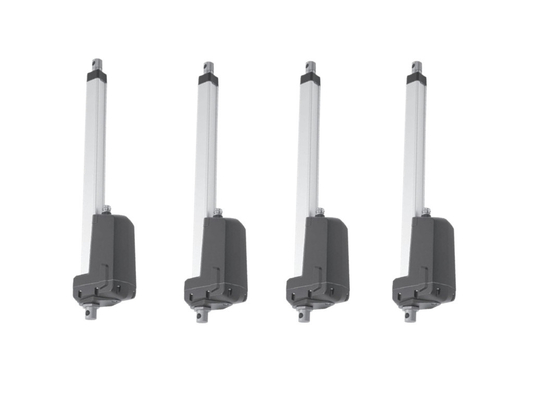

High Force Industrial Linear Actuator 12000N 24V DC Electric Motor IP66
Engineered for industrial use, this electric actuator delivers a powerful 12000N load capacity. It includes a built-in limit switch for accurate operation and offers an optional hall sensor signal output for precise position monitoring. Perfect for challenging environments where durability and performance are paramount.
Specifications:
| Working voltage | 12VDC / 24VDC |
| Max. load force | 12000N / 2700LB |
| Stroke | 50mm ~ 10000mm |
| Retracted length | ≧ Stroke + 200mm |
| Limit switch | Built in |
| Signal output | Hall sensor / Potentiometer |
| Duty cycle | 25% |
| IP rating | IP66 |
Features:
Variable Speed & Stroke: Speed options from 6mm/s to 37 mm/s and stroke lengths ranging from 50mm to 1,000 mm.
Durable Construction: Rated IP66 for outdoor and industrial environments, with a 25% duty cycle.
Dual Mode: Features both electric operation and manual override for added flexibility.
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
