| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-HD2 |
| Minimum Order Quantity: | negotiable |
| Price: | 29-299 USD/PCS |
| Packaging Details: | Paper gift box |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Name: | Heavy Duty Linear Actuator | Working Voltage: | 12V /24V DC |
|---|---|---|---|
| Max. Speed At Full Load: | 4mm/s | Max. Speed At No Load: | 6mm/s |
| Max.. Thrust: | 12000N | Stroke: | 50mm~1000mm |
| Motor Type: | Brushed DC | IP Grade: | IP66 |
| Highlight: | Overload Protection High Force Electric Actuator,High Force Electric Actuator 200mm,Linear Actuator With Potentiometer Feedback |
||

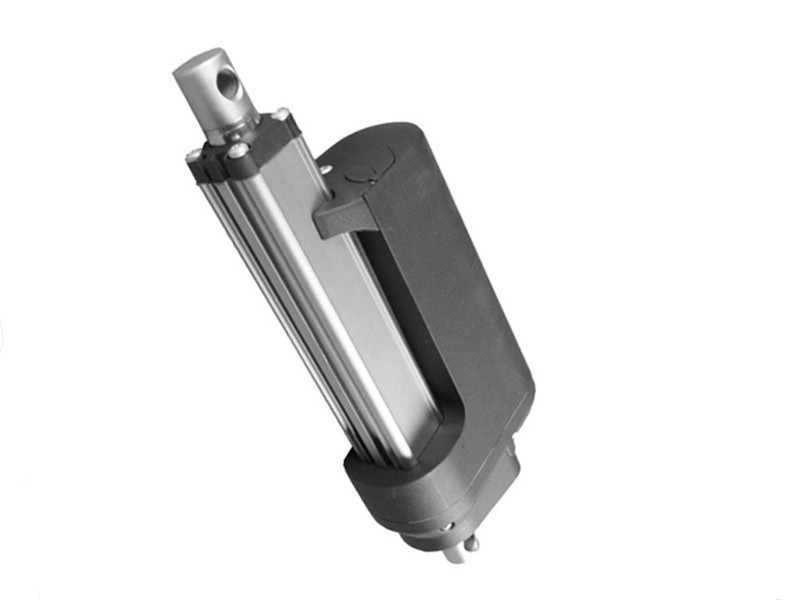

The DC12V/24V heavy-duty electric linear actuators deliver a maximum thrust of 16,000N, making them ideal for powerful and demanding applications. Featuring an IP66-rated housing, these actuators offer excellent protection against dust and water ingress, ensuring reliable performance in harsh environments. Their robust design guarantees durability and consistent operation, even under significant loads. It also offers multiple choice of the position feedback from limit switch, Hall,POT and reed switch.
12V / 24V DC permanent magnet motor,firm structure,durable.
Hall or Potentiometer Effect for option
Overload clutch protection
IP66 housing case for waterproof and dustproof
| Voltage of Motor | 12V DC/ 24V DC |
| Maximum load | 12000N in push |
| Maximum load | 12000N in pull |
| Stand stroke | 20---5000mm |
| Speed | 6.5mm/s---38mm/s as requested. |
| Minium installation dimension | Stroke+250mm |
| IP rating | Up to IP65 |
| Operational temperature range | -40 ℃ -- +65 ℃ |
| Options | Limite switch/HALL/POT/Reed switch |
| Duty Cycle | 20% full load in normal tempreture. |
Options: Widely used in various industry equipment, special Vehicle and the high load output extremely harsh conditions
Price and description for reference only as the actautors are tailored product. For more information, feel free to contact us anytime~
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance test
Q: Is the product ready to be dispatched?
A: No, the actuators are tailored products, so we need to produce the items per your request.
Q: How long can I get my order, what's the lead time?
A: It usually takes about 10~15 working days to produce samples. But it may vary from time and real situation sometimes.
Q: Do you have after-sale service?
A: Yes. We offer technical support and fast after-sales service. Feel free to contact us if you encounter any questions.
Q: What is your payment?
A: We accept TT, LC, Paypal
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
