QUALITY IS EVERYTHING
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE, RoHS |
| Model Number: | LS-PE8-b |
| Minimum Order Quantity: | negotiable |
| Price: | 10-100 USD/PCS |
| Packaging Details: | Paper gift box, 20PCS/Carton |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Name: | Aftermarket Reverse Sensor | Sensor Frequency: | 40k HZ |
|---|---|---|---|
| Sensor Type: | Passive Sensor | Working Voltage: | 10.5--16.0V DC |
| Rated Voltage: | 12 V | Customized Request | Rated Current: | 170mA |
| Sensor: | 2 Or 4 For Option | Customization: | Available |
| High Light: | Passive Aftermarket Front Parking Sensors,Aftermarket Front Parking Sensors 40KHz,Aftermarket Rear Parking Sensors IP67 |
||

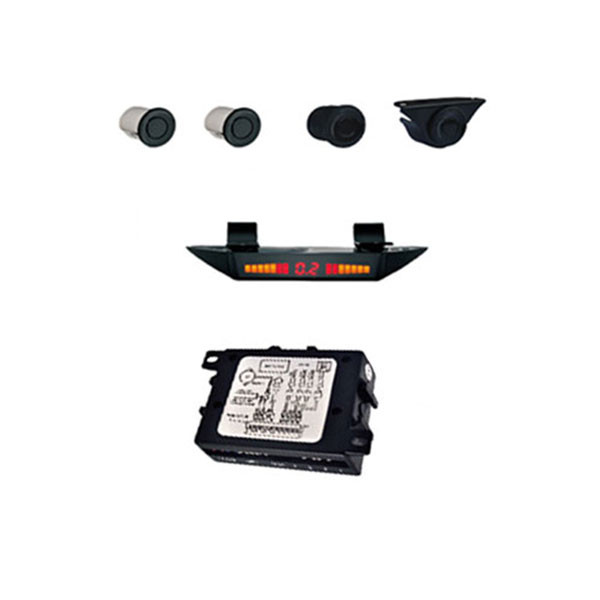

1. LED display, three mouting position for option
2. 6m or 15m display cable, 4.5m or 8.0m sensors cable for option
3. Universal for most of pickups and middle size trucks
4. Self-checking function, trucks body bumper bar ignoration automatic
5. Robust rubber grommet for metal bumper, brackets available
6. 2 or 4 sensor for option
LS-PE8-b Main Data Sheet:
| Working voltage | 10.5--16V DC |
| Rated voltage | 12V DC |
| Rated current | 170mA Max |
| Sensor frequency | 40kHZ |
| Sensor type | Passive sensor |
| Sensor quantity | 2 or 4 for option |
| Working temp | -30°C~+80°C |
| Waterproof Grade | ECU: IP40 / Sensor: IP67 |
| Warranty | 3 Year |
