NTSC 7 Inch Reversing Camera System 50ft Night Vision / 125° Backup Camera Infrared

NTSC 7 Inch Reversing Camera System 50ft Night Vision / 125° Backup Camera Infrared
NTSC 7 Inch Reversing Camera System 50ft Night Vision / 125° Backup Camera Infrared NTSC 7 Inch Reversing Camera System 50ft Night Vision / 125° Backup Camera Infrared NTSC 7 Inch Reversing Camera System 50ft Night Vision / 125° Backup Camera Infrared
Basic Information
Place of Origin: CHINA
Brand Name: Linsheng Auto II MaxM
Certification: CE
Model Number: LS-RVC-08
Minimum Order Quantity: negotiable
Price: 10-59USD/PCS
Packaging Details: Paper gift box
Delivery Time: 7 Days
Payment Terms: L/C, T/T, PayPal
Supply Ability: 10000 PCS per month
Get Best Price Contact Now
Model NO.: LS-RVC-08 Definition: 420TVL
Chip: CCD Waterproof Grade: IP68
TV System: NTSC Or PAL Specification: CE
Trademark: Linsheng Auto HS Code: 8525801390
Supply Ability: 20000PCS/Month Applicable Model: Car, SUV, Truck
Shell Material: Metal Housing Case Probe Number: 1
Display Type: LCD Matrix Interface: S-Video
Function: Night Vision Customization: Available | Customized Request
High Light:

NTSC 7 Inch Reversing Camera System

,

7 Inch Reversing Camera System 50ft

,

125° Backup Camera Infrared

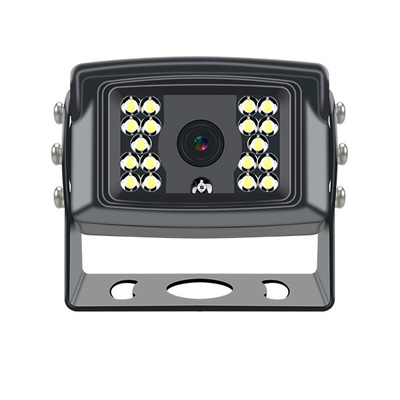

125° Back Camera Camera With 18 Infrared Illuminator




1. Special designed camera for bus and truck outdoor use
2. IP68 water resistance


Camera Main Specification​
1/3" Sharp Color CCD Camera
125° Ultra Wide Range Viewing Angle
18 Infrared Lights - 50ft of Night Vision
Completely Waterproof - IP68 Rating


Scanning system:

1.  NTSC: 525 lines, 60 field/sec
2.  PAL: 625 lines, 50 field/sec
3.  Sync system: internal synchronization
4.  Gamma characteristic: 0.45
5.  S/N ratio: ≥48dB (AGC off)
6.   Electronic shutter time on: NTSC 1/60-1/100,000sec, PAL 1/50-1/100,000sec
7.   Off: NTSC 1/60sec, PAL 1/50sec
8.   Usable illuminations: 1 lux (F:2.0), 0 lux with built-in IR LED
9.   IR project distance: 15 meters (18 units infrared LED)
10. IR status: under 10 lux by CDS
11. IR power on: CDS auto control
12. Lens: board lens 3.6mm/F2.0 (optional)
13. Video output: 1.0Vp-p, 75ohms
14. Gain control (AGC): auto
15. Cable: BNC jack
16. Water resistance: IP68
17. Operating temperature: -20°C-70°C, 95% RH max
18. Storage temperature: -30°C-80°C, 95% RH max
19. Power supply: DC12V±10%, 600mA/24V DC for option


NTSC 7 Inch Reversing Camera System 50ft Night Vision / 125° Backup Camera Infrared 0
