Built-in Safety Protection 4 Channel Lifting Column Actuators Synchronous Controller

Built-in Safety Protection 4 Channel Lifting Column Actuators Synchronous Controller
Built-in Safety Protection 4 Channel Lifting Column Actuators Synchronous Controller Built-in Safety Protection 4 Channel Lifting Column Actuators Synchronous Controller Built-in Safety Protection 4 Channel Lifting Column Actuators Synchronous Controller
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Certification: CE, FCC
Model Number: LS-RSK-H4
Minimum Order Quantity: 1 Unit
Price: USD20~299/Unit
Packaging Details: Neutral Box
Delivery Time: 2 Weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000 Unit/Month
Get Best Price Contact Now
Color: Black Working Voltage: 12~28V DC
Max. Current: 25A Frequency: 433.92MHz
Remote Range: 50 Meters Working Temperature: -30~+80℃
Remote Option: Momentary / Non-momentary Learning Code: Programmable
Highlight 1: Synchronize 4/3/2 Linear Actuators Highlight 2: Wireless Control And 2 Wired Switch
Highlight 3: Built-in Safety Protection Highlight 4: Control 4 Actuators At The Same Time OR Control 2 Separately
Highlight:

Synchronous Controller Lifting Column Actuators

,

4 Channel Lifting Column Actuators



Description:

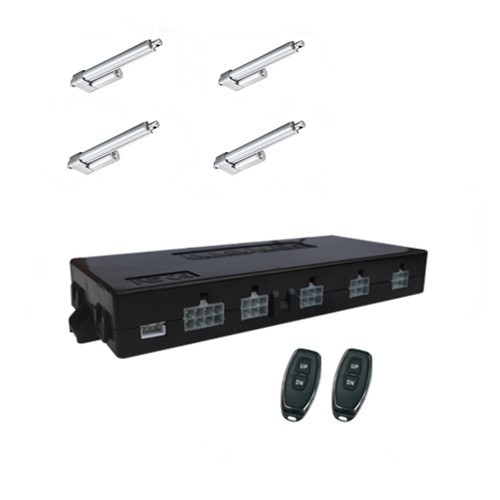

4 Channel Lifting Column Actuators Synchronous Controller



Linsheng-Auo updated 4-channel synchronous controller LS-RSK-H4 serves as a central control device for coordinating the movement of multiple lifting column actuators simultaneously. It features dual operation, built-in overloading protection, and also offers versatile control capabilities for various applications that require synchronized movement of more actuators, enchancing function, safety and user experience.




Features:
1. Wide working voltage range from 12V to 28V DC
2. Synchronize multiple actuators (2/3/4) with or without built-in limit switch
3. Built-in overloading safety protection to protect the device ( overcurrent Amps value is adjustable)
4. Wired control & Wireless control to suitable for various application



Specifications:
Name Linear Actuator Controller
Voltage 12V~28V DC power supply
Max. Current 25A (12.5A/ Channel)
Remote Range 50 meters (164ft)
Working temperature -30~+80℃
Certification CE,FCC by SGS
Control method 2-wired switch and wireless remote control
Warranty One-year



Application:
Height adjustable display fixtures and shelving system
Automative workstations for tasks such as vehicle inspection, assembly or repair
Rehabilitation and therapy equipment, such as treatment tables, chairs



Built-in Safety Protection 4 Channel Lifting Column Actuators Synchronous Controller 0





About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is located in Guangzhou, a beatiful city in the south of China. We specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.

Mainly of our products are remote control systems with different features for electric actuators, which are widely used in the automotive, construction, furniture, agriculture, transportation. Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. We offer a one-year warranty and good & fast after-sale service.
With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects. Additionally, both software and hardware technicians always working in the meanwhile will speed up your projects and ensure they perform well.





Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box. If you have any questions or need assistance, please don't hesitate to contact us. Our team is always here to help.





Packing and Shipping:
All our products are tested strictly and packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer. Tracking information is provided upon request.
