Wheelchair Fold-out Ramp Linear Actuator Remote Controller 12VDC 433.92MHz

Wheelchair Fold-out Ramp Linear Actuator Remote Controller 12VDC 433.92MHz
Wheelchair Fold-out Ramp Linear Actuator Remote Controller 12VDC 433.92MHz Wheelchair Fold-out Ramp Linear Actuator Remote Controller 12VDC 433.92MHz Wheelchair Fold-out Ramp Linear Actuator Remote Controller 12VDC 433.92MHz
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Certification: CE, FCC by SGS
Model Number: LS-RSK-W1
Minimum Order Quantity: 1 Unit
Price: USD9~99/Unit
Packaging Details: Plain Box
Delivery Time: 2 Weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000 Unit/month
Get Best Price Contact Now
Highlight:

433.92MHz Linear Actuator Remote Controller

,

12VDC Linear Actuator Remote Controller

Description:

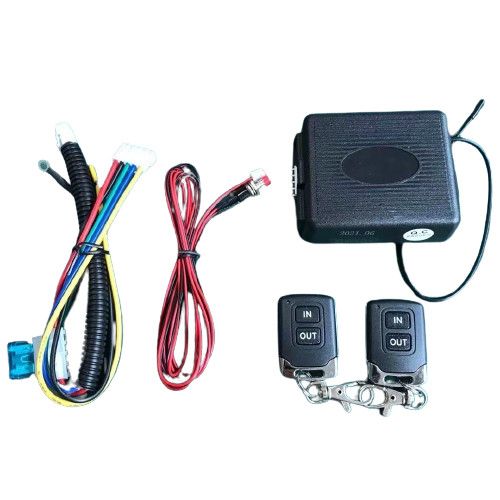

Wheelchair Fold-out Ramp Linear Actuator Remote Controller



Linear actuator controller LS-RSK-W1 is mainly designed to facilitate the deployment and retraction of wheelchair ramps. It operates using a 12V DC power supply and is controlled remotely via a 433.92 MHz frequency signal. The linear actuator mechanism ensures smooth and efficient motion, making it easy to fold out or retract the ramp with the push of a button on the remote controller. This system enhances accessibility and independence for wheelchair users by providing a reliable and convenient ramp operation solution.







Features:

1.Remote control wheellchair vans ramps in/out.

2.Remote button keep pressing for operation.

3.Remote button press once and timed output (optional)

4.Remote learning code, new remotes programmable

5.CE,FCC by SGS and come with one-year warranty







Specification:

Working voltage 12V DC
Max. current 10A
Frequency 433.92MHz
Remote range 30 meters
Working temperature -30~+80℃
Guarantee One year







Operation:

Pressing and holding on the "UP" or "DN" button to control the actuators moving out or retracking back.  The actuators will not working if you not keep your finger pressing onto the button.
Button-up : Pressing "UP", the Green wire will output: "-"/Negative 12V DC
Button-down: Pressing "DN", the Blue wire will output: "-"/Negative 12V DC
Code Learning/Programming:  Make the yellow wire connect to "+" 12V DC; press the reset switch once, then press any button once of the transmitter immediately.  (4pcs transmitters available at most at meanwhile).






Application:

Automotive / Wheelchair Ramp remote contro;  Home Automation




About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.




Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.




Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
