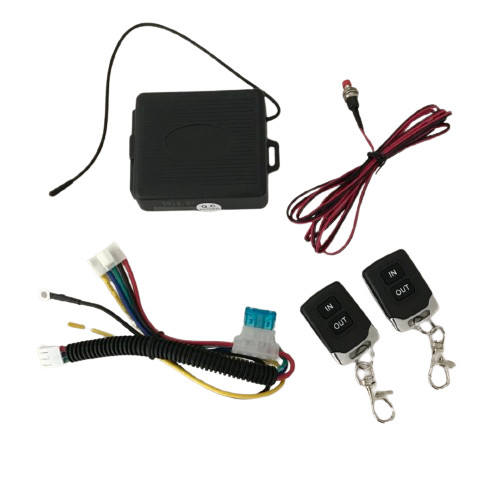

Vehicle Wheelchair Van Ramp / Lifts Electric Linear Actuator Remote Controller CE

Vehicle Wheelchair Van Ramp / Lifts Electric Linear Actuator Remote Controller CE
Vehicle Wheelchair Van Ramp / Lifts Electric Linear Actuator Remote Controller CE Vehicle Wheelchair Van Ramp / Lifts Electric Linear Actuator Remote Controller CE Vehicle Wheelchair Van Ramp / Lifts Electric Linear Actuator Remote Controller CE
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Certification: CE, FCC by SGS
Model Number: LS-RSK-W1
Minimum Order Quantity: 1 Unit
Price: USD9~99/Unit
Packaging Details: Plain Box
Delivery Time: 2 Weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000 Unit/month
Get Best Price Contact Now
Voltage: 12V Power Type: DC Power Supply
Warranty: 1 Year Item No: LS-RSK-W1
Operation Way: Remote Control Remote Range: 30m
Max. Current: 10A Customization: -30--80 ℃
Code Learning: Programmable Guarantee: One Year
Highlight:

Electric Linear Actuator Remote Controller

,

CE Linear Actuator Remote Controller

,

Vehicle Wheelchair Van Ramp Remote Controller

Description:

Remote control ramp/lifts for a wheelchair van



Linsheng-atuo LS-RSK-W1 linear actuator controller, powered by 12V DC and remotely operated at 433.92 MHz, enables smooth, remote-controlled deployment and retraction of wheelchair van ramps/lifts, enhancing accessibility and independence for users. The remote ramp operation improves access to vehicles, making transportation easier and more inclusive.







Features:

1.Wheellchair vans ramps in/out can be operated remotely via a small fob remote

2.Pressing and holding on the "UP" or "DN" button to control the actuators moving out or retracking back.

3.Code type is remote and programmable

4.One-year guarantee and CE,FCC ceritfied by SGS







Specification:

Working voltage 12V DC
Max. current 10A
Frequency 433.92MHz
Remote range 30 meters
Working temperature -30~+80℃
Guarantee One year







Operation:

Pressing and holding on the "UP" or "DN" button to control the actuators moving out or retracking back.  The actuators will not working if you don't keep your finger pressing onto the button.
Button-up : Pressing "UP", the Green wire will output: "-"/Negative 12V DC
Button-down: Pressing "DN", the Blue wire will output: "-"/Negative 12V DC
Code Learning/Programming:  Make the yellow wire connect to "+" 12V DC; press the reset switch once, then press any button once of the transmitter immediately.  (4pcs transmitters available at most at meanwhile).






Application:

Vehicle / Wheelchair Van Ramps/ Lifts control remotely




About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.




Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.




Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
