QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE, FCC |
| Model Number: | LS-RSK-6s |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD20~299/Unit |
| Packaging Details: | Plain Box |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000 Unit/month |
| Voltage: | DC 12V | Max. Current: | 25A |
|---|---|---|---|
| Frequency: | 433.92MHz | Remote Range: | 50 Meters |
| Working Temperature: | -30~+80℃ | Color: | Black |
| Control Type: | Remote Control W/ Wired Switch | Remote Option: | Momentary, Non-momentary |
| Guarantee: | 1 Year | Feature: | Any 4 Position Can Be Programmed And Saved Via A Remote Control |
Description:

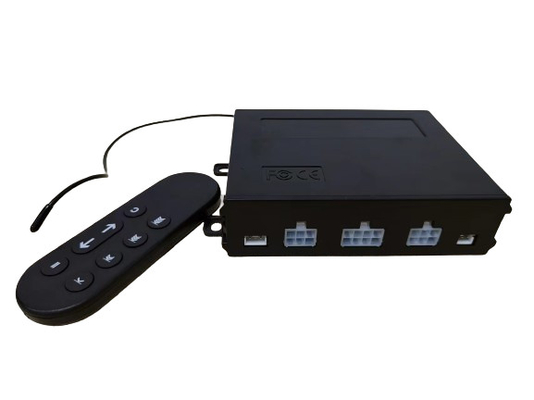

Actuator control box with positions programmable
The Linsheng linear actuator positional controller allows you to program and store up to four positions with an RF remote control operating at 433.92MHz. Compatible with a 12V DC power supply, it enables two actuators to move in parallel synchronously, ensuring accurate positioning under any circumstances. This functionality facilitates rapid and hassle-free adjustment to preset positions, saving time and effort compared to manual adjustments.
Features:
| Remote Control Adjustment | Use the remote control to adjust 2 Hall/POT actuators to any of 4 programmable positions. |
| Synchronous Parallel Movement | Ensures synchronous parallel movement of two actuators. |
| Programmable Positions | Program and store up to 4 positions using a single remote control. |
| Remote Control Options | Offers both momentary and non-momentary remote control options. |
| Certification | Certified by SGS for FCC and CE compliance. |
| Warranty and After-Sales Service | Comes with a one-year warranty and excellent after-sales service. |
Specifications:
| Product | Linear actuators controller |
| Model | LS-RSK-6s |
| Voltage | 12V DC |
| Max. current | 25A |
| Frequency | 433.92MHz |
| Remote range | 50 meters |
| Working temperature | -30~80℃ |
| Remote code | Programmable |
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
