QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE,FCC by SGS |
| Model Number: | LS-RSK-H1s+LS-PAT-HD2 |
| Minimum Order Quantity: | 1 piece |
| Price: | 20~399USD/PC |
| Packaging Details: | Plain box |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24V DC | Max.load: | 12000N |
|---|---|---|---|
| Max. Speed At Max. Load: | 4.5mm/s | Limit Switch: | Built-in |
| IP Rating: | IP65 | Output Signal: | Hall/Pot |
| Stroke: | 50~1000mm | Feature: | Overload Clutch Protection |
| Max. Current Of Cnotroller: | 16.5A | Frequency: | 433.92MHz |

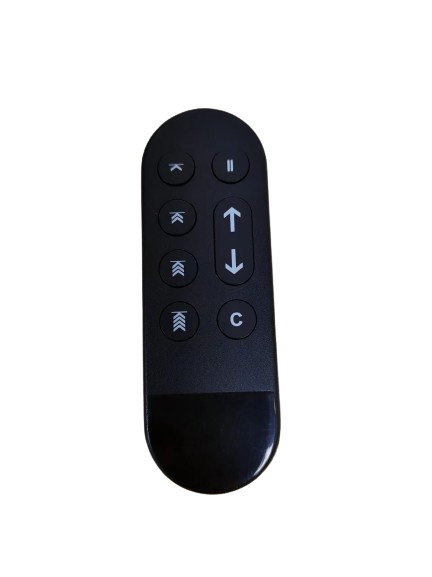

| Remote Range: | 50meters | Highlight Of Controller 1: | Synchronize Two Hall Actuators In Any Situation |
| Highlight Of Controller 2: | 4 Position Programmable And Storagable | Customization: | Support |
| Highlight: | Position Programmable Electric Actuators,DC Motor Electric Actuators,12V~28V Electric Actuators |
||

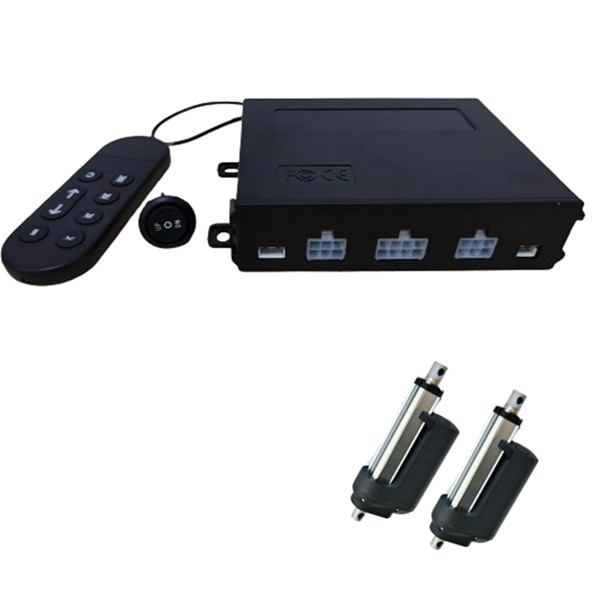

Electric Actuators DC Motor Synchronization Control System 12V~28V Position Programmable
Description:
Elevate your operations to effortless automation with the Linsheng Linear Actuator Remote Control Kit. Experience the seamless fusion of power, precision, and protection for unparalleled performance. Our compact control unit, compatible with electric actuators ranging from DC 12V to 28V, ensures versatility without compromise, whether your actuators have limit switches or not.
Main Features:

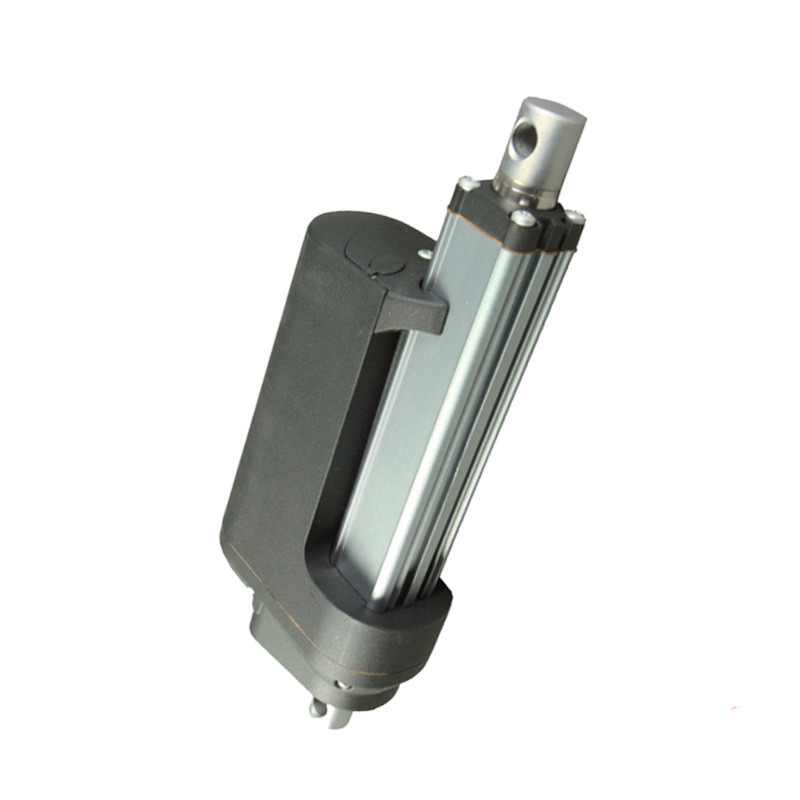

Electric Actuators

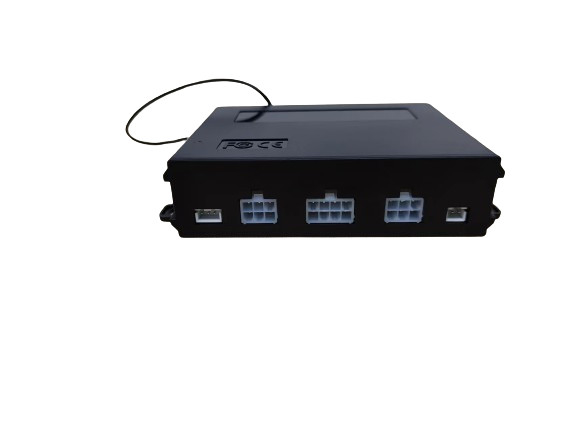

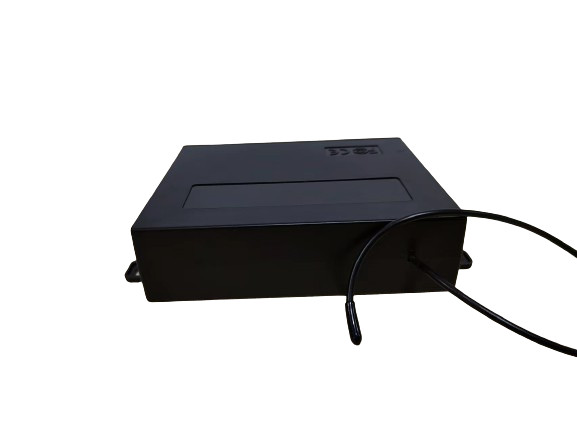

Actuators controller:
| Parameters | Linear actuators | Control Unit |
| Voltage | 12V/24V DC | 12V~28V DC |
| Max. Loading force | 12000N (push) | / |
| Max. speed at max. load | 4.5mm/s | / |
| Stroke range | 50~1000mm | / |
| Limit switch | Built-in | / |
| Waterproof rating | IP 65 | / |
| Output signals | Hall/ POT | Hall |
| Max. current | / | 16.5A |
| Remot range | / | 50meters |
| Frequency | / | 433.92MHz |
| Certification | CE | CE,FCC by SGS |
Application:
Swim Spa cover; Hot tub cover; Truck lid auto cover; Chicken coop door opener ; motorized canopy
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
