| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-INLA-1 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 20~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Volts: | DC 12V/24V | Max. Load: | 4,500N (push); 3,000N (pull) |
|---|---|---|---|
| Max. Speed At Full Load: | 2.5mm/s | Max. Speed At No Load: | 27.5mm/s |
| Installation Distance: | ≥ Stroke + 289mm | Ip Rating: | IP69K （optional） |
| Stroke Range: | 20~1000mm | Output Signals: | Hall Sensors |
| Color: | Black / Grey | Working Temperature: | -5°C~+65°C |
| Application: | Industrial Application | ||
| Highlight: | 1000mm DC Linear Inline Actuators,Wheelchairs DC Linear Inline Actuators,24V DC Linear Inline Actuators |
||

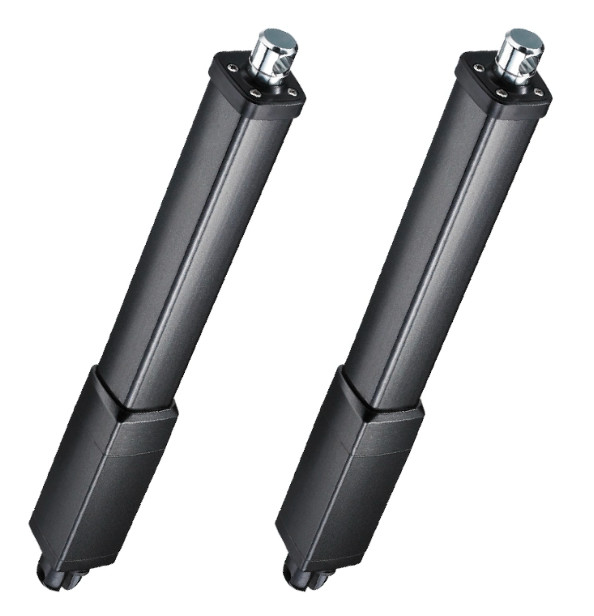

12V/24V DC Linear Inline Actuators Stroke 20~1000mm for Wheelchairs Recline Sofa
DC electric actuator LS-INLA-1 is built to withstand the harshest environments with an IP69K rating, ensuring protection against powerful jets of water and dust. It features compact design allows for versatile and space-efficient installation in various industrial applications. This actuator is suitable for demanding industrial tasks requiring high load capacities and fast operation speeds.
Specifications:
Working volts: 12V/24V DC
Max. load: 4,500N (push); 3,000N (pull) 991lb /660lb
Max. speed at max. load: 2.5mm/s
Max. speed at no load: 27.5mm/s
Installation distance: ≥ Stroke + 289mm /11.37”
IP rating: IP69K (optional)
Stroke range: 20~1000mm (0.8”~39”)
Output signals: Hall sensors ( for synchronization and position feedback)
Color: Black / Grey
Working temperature: -5°C~+65°C
Features:
High waterproof rating IP up to IP69K
Dustproof, robust housing
Compact Installation design
Widely applied to industrial application (higher load and speed)
Applications:
motorized furniture such as adjustable beds, recliners, and ergonomic office chairs, also widely applied to wheelchair
It works with our actuator control box: LS-RSK-H1, LS-RSK-H4, LS-RSK-6s
Standard size:
