Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform

Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform
Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform
Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Certification: CE
Model Number: LS-PAT-81
Minimum Order Quantity: 1 piece
Price: USD 29~299/PC
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 500pcs/month
Get Best Price Contact Now
Voltage: 12V/24V DC Max. Loading Force: 4500N/450Kg
Retracted Length: ≥Stroke+147mm Max. Dynamic Bending Moment: 250Nm
Max. Static Bending Moment: 500Nm Max. Speed At Max. Load: 6.6mm/s
Max. Speed At No Load: 45mm/s Outer Diamension: 196.4*148.4mm
Stroke: 100~1000mm Output Signals: Hall Sensors
Highlight:

2-Stage Telescopic Pillars Actuators

,

DC12V Telescopic Pillars Actuators

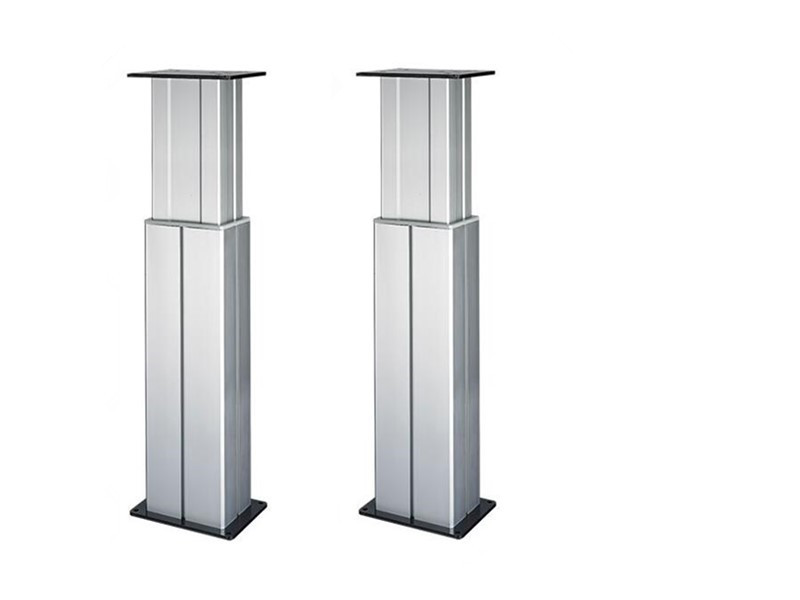

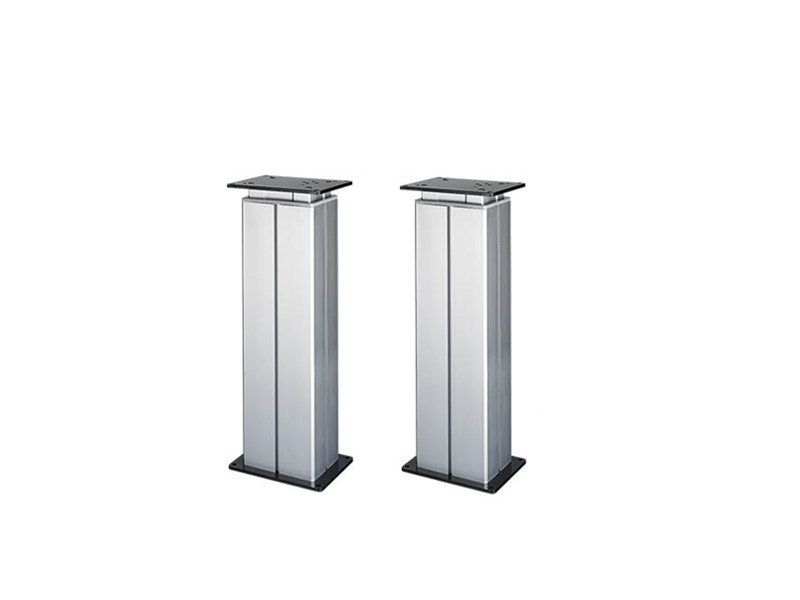

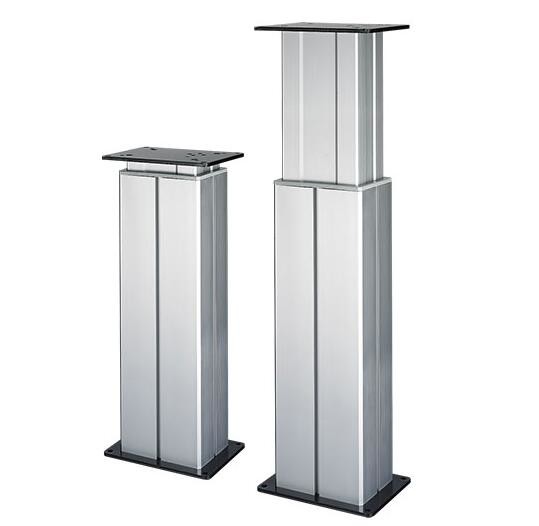

Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform







Featuring a stylish rectangular design, the LS-PAT-81 Lifting Column offers adaptable 2-stage performance with choices for small or large top and bottom plates. Its stroke range of 100mm to 2000mm and availability in 12V/24VDC meet a broad range of needs. With a built-in Hall sensor for consistent and stable lifting, this actuator is ideal for flexible lifting stands, exam devices, and workstations, delivering reliable performance for diverse applications.







Features:

  • 2-stage rectangular compact shape
  • Extruded aluminum makes the robust housing
  • Built-in high quality Hall sensor provides stable signal output
  • 100mm ~ 1000mm stroke range for your option

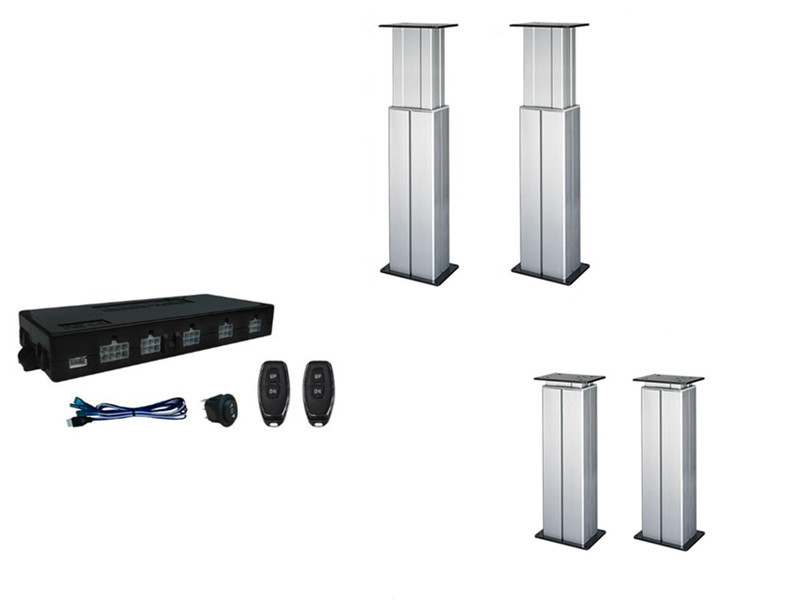

  • Works well with our 4CH Actuators Synchronized Controller LS-RSK-H4
  • Best choice for height adjustable tables; lifting platforms; exam stands, workstations





Specifications:

  • Working voltage: DC 12V~24V
  • Max. loading force: 450KG / 4500N
  • Max. speed at max. load: 6.6mm/s
  • Max. speed at no load: 45mm/s
  • Installation distance: ≥ stroke+147mm
  • Stroke: 100~1000mm
  • Output signals: Hall sensor

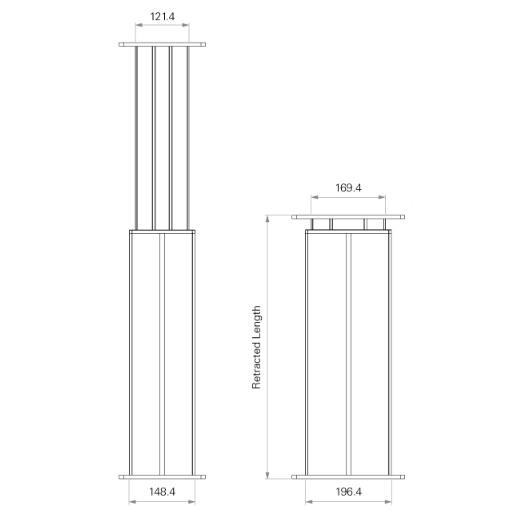

  • Overall size: 196.4*148.4mm (2 stages)
  • Working temperature: 5℃~45℃

Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform 0Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform 1

Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform 2Telescopic Pillars Actuators 2-Stage DC12V 4500N for Flexible Lifting Stands Platform 3



About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
