High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke

High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke
High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke
High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Certification: CE
Model Number: LS-PAT-8
Minimum Order Quantity: 1 piece
Price: USD 155~255/piece
Packaging Details: Carton box
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month
Get Best Price Contact Now
Voltage: 12V DC / 24V DC Max. Loading Force: 800Kg(push); 400Kg(pull)
Max. Speed At Full Load: 5.1mm/s Retracted Length: ≥ Stroke+131mm
Stroke: 1''~39'' IP Rating: IP69K
Output Signal: POT / Hall
Highlight:

Waterproof DC Linear Actuators

,

1000mm Stroke DC Linear Actuators

,

Robust DC Linear Actuators





High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke







With a high load capacity of 1800 lb and a top speed of 40 mm/s at a 225 lb load, the LS-PAT-8 DC electric actuator is designed for challenging environments, offering reliable heavy-duty construction and durability.







Specifications:

  • Model: LS-PAT-8
  • Voltage: 12V DC / 24V DC
  • Max. loadind force: 800Kg (push); 400Kg (pull)
  • Max. speed at max. load: 5.1mm/s
  • Max. speed at no load: 52.5mm/s
  • Mini. installation distance: ≥ Stroke + 131mm
  • IP rating: IP66, IP69K(optional)
  • Stroke: 25~1000mm ( 1'' ~39'')
  • Output signals: POT / Hall
  • Micro switch: Built-in
  • Operational temperature range: -40˚C ~ +85˚C
  • Operational temperature range at full performance: +5°C~+45°C
  • Manual drive





Features:

  • Robust Load Capacity: Designed to support substantial weights, ensuring reliable performance under high-load conditions.
  • Quick and Strong: Achieves a moving speed of 40 mm/s with a load capacity of 225 lb for rapid and powerful performance.
  • Tailored Solutions: Customizable options for stroke length, signal output, and voltage to fit your unique operational needs
  • Sturdy and Lightweight: Constructed from robust aluminum for a balance of strength and lightweight performance.
  • Waterproof and Dustproof: Offers top-tier IP69K protection for reliable performance in harsh, wet, or dusty conditions

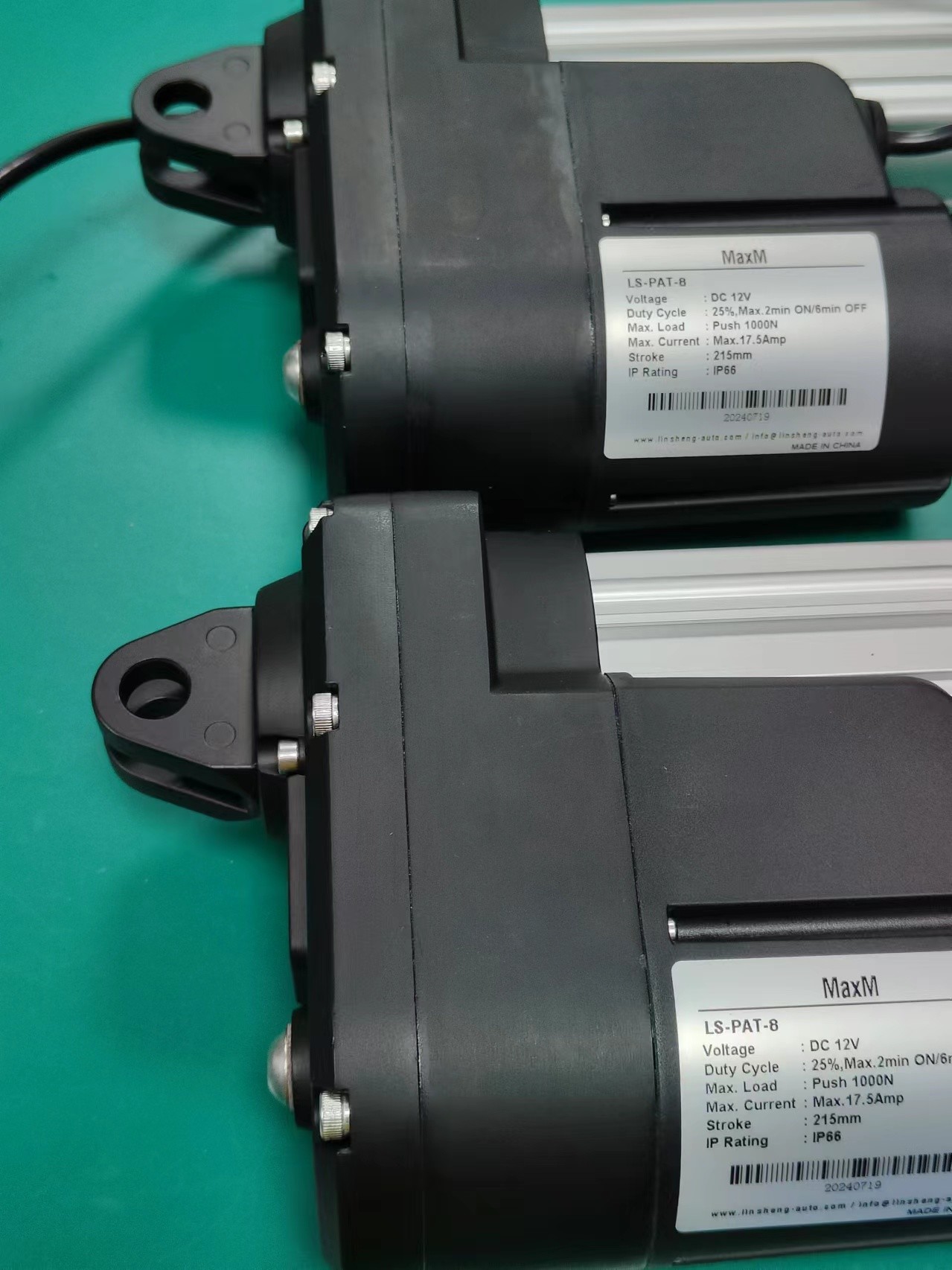

High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke 0

High-Speed Robust DC Linear Actuators Waterproof 20~1000mm Stroke 1









About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.

Tag:

Limit Switch Linear Actuator,

High Force Linear Actuator,

Linear Actuator Heavy Duty
