IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application

IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application
IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Certification: CE
Model Number: LS-PAT-41
Minimum Order Quantity: Negotiable
Price: 29USD~299USD/PC
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000pcs/month
Get Best Price Contact Now
Voltage: 12V DC / 24V DC Max. Thrust: 3500N (push); 2000N (pull)
Max. Speed: 2.4mm/s(max. Load); 56.5mm/s (no Load) Stroke: 20mm~1000mm
Retracted Length: ≥ 200mm (depending On Chosen Options) IOutput SignalP Rating: IP69K
Output Signal: POT / HALL Options: Grease Chamber
Highlight:

3500N Motorised Linear Actuator

,

IP69K Motorised Linear Actuator

,

Agricultural Equipment Motorised Linear Actuator

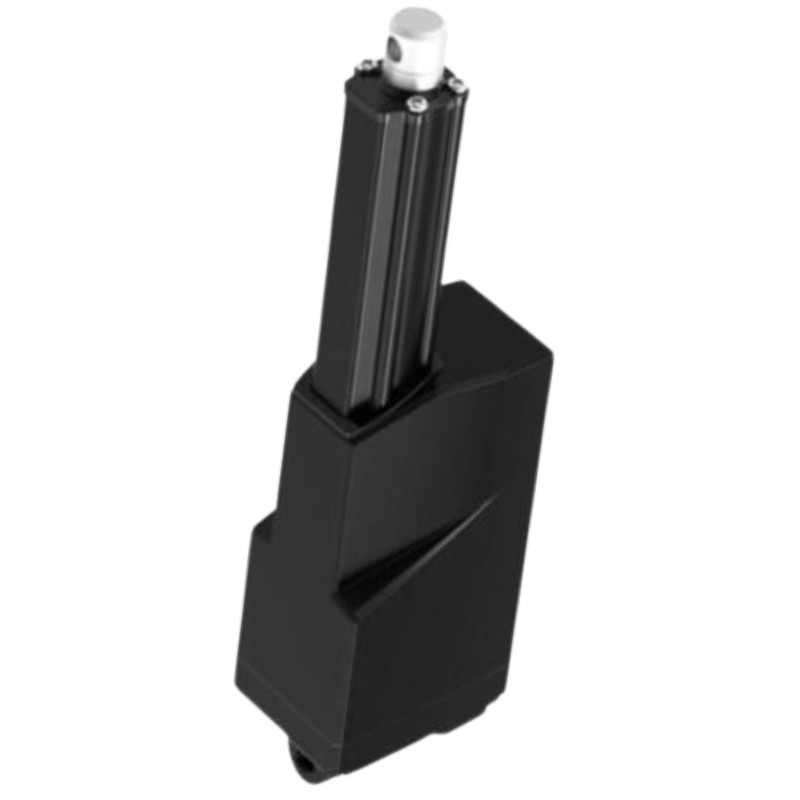

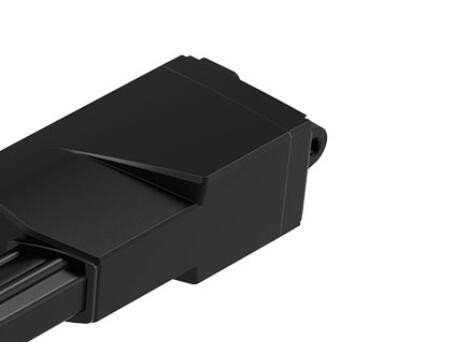

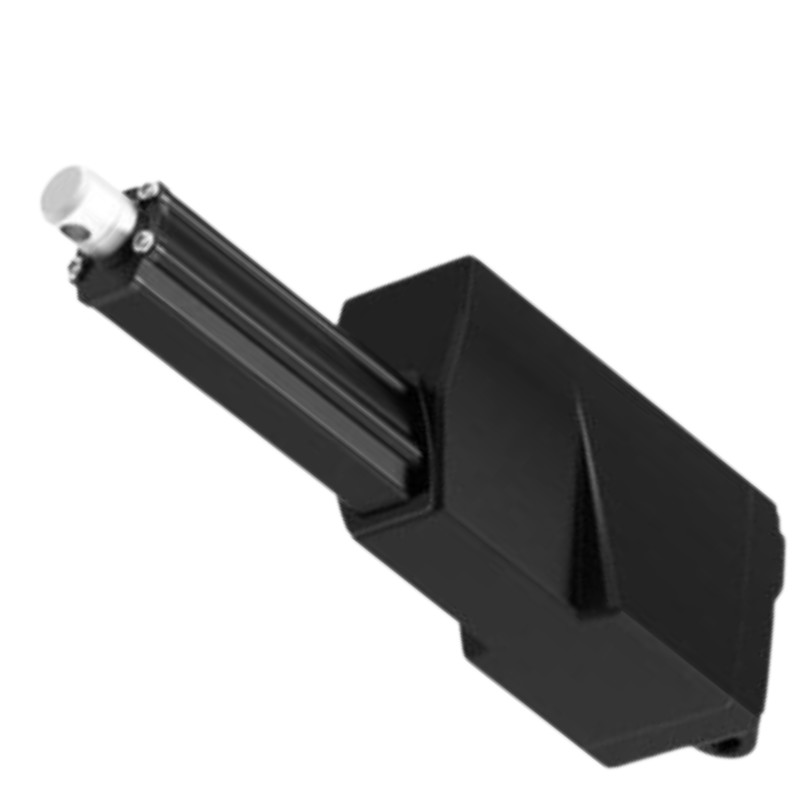

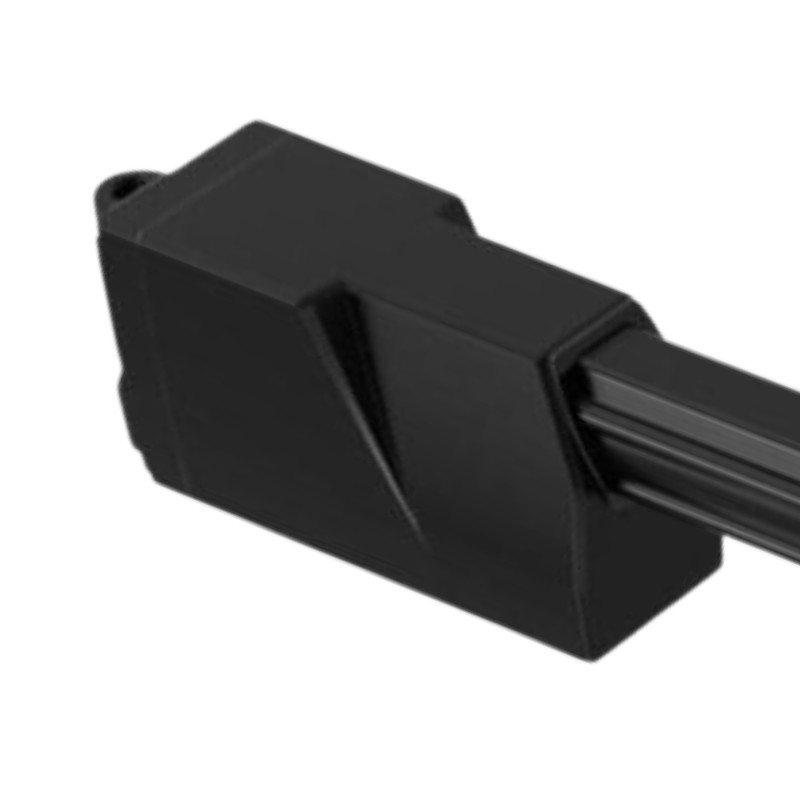

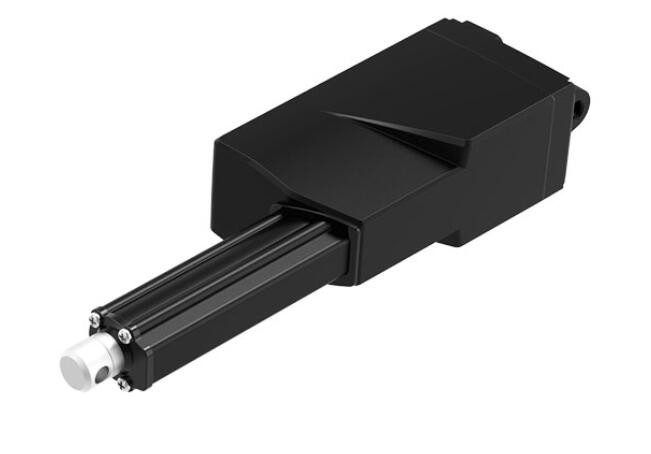

IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application





This durable DC actuator is engineered for high-performance and rugged reliability in agricultural equipment. These actuators are designed to withstand extreme environmental conditions, offering exceptional durability and protection against dust and high-pressure water jets. Ideal for applications requiring robust linear motion, they ensure dependable operation and enhanced longevity in demanding agricultural settings.







Specifications:

  • Voltage: DC 12V/24V
  • Max. loading force: 3500N (push); 2000N (pull)
  • Max. speed: 2.4mm/s(full load); 56.5mm/s (no load)
  • Stroke: 20~1000mm
  • Retracted length: ≥200mm (denpending on chosen options)
  • IP grade: IP69K
  • Output signals: POT / HALL







Features:

  • IP69K for harsh working environments
  • Ruggedness and durability
  • Adjustable Stroke to meet your different needs
  • Built-in Limit switch
  • Max. thrust up to 350Kg
  • Grease chamber is an option to increase the protection degree and life cycle



Applications:

valves, spreaders, harvesters, and grain handlers





Load and speed --Motor Speed (5200RPM,duty cycle 25%)

Load (N) Self locking force(N) Typical Current(A) /24V DC Typical speed(mm/s)/ 24V DC
push pull   no load with load no load with load
250 250 250 1.2 2.3 43.0 36.0
500 500 500 1.1 2.3 25.8 23.0
1000 1000 1000 1.1 2.3 14.0 11.8
1500 1500 1500 1.0 2.2 9.0 8.0
2000 2000 2000 1.0 2.2 7.1 6.2
500 500 500 1.3 5.0 54.0 35.0











IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application 0IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application 1

Standard size (mm)

IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application 2

Standard size  with grease chamber (mm)

IP69K Motorised Actuator 3500N 787lb Force 0.8Inch-39Inch Stroke Agricultural Application 3
