QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-34 |
| Minimum Order Quantity: | 1 piece |
| Price: | 20-299 USD/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 24VDC | Max. Load: | 4000N (push/pull) |
|---|---|---|---|
| Max. Speed: | 12.1mm/s (No Load); 2.5mm/s (max. Load) | Stroke: | 20~300mm |
| Retracted Length: | ≥ Stroke + 100mm | Color: | Black Or Grey |
| Limit Switch: | Built-in | Output Signal (Optional): | Hall Sensors |
| Duty Cycle: | 10% | Customize: | Support |
| Highlight: | 24V Kitchen Cabinets Motorise DC Actuators,300mm Kitchen Cabinets Motorise DC Actuators,4000N Kitchen Cabinets Motorise DC Actuators |
||

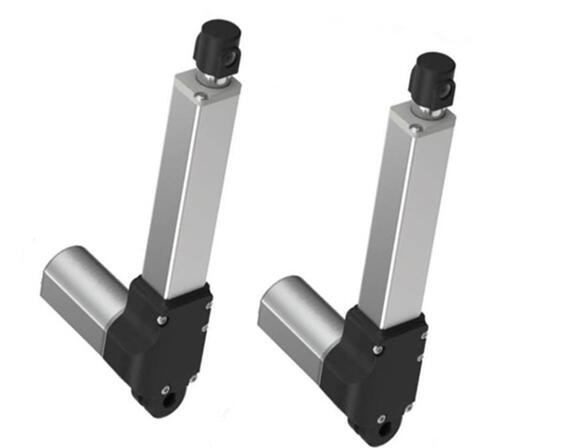

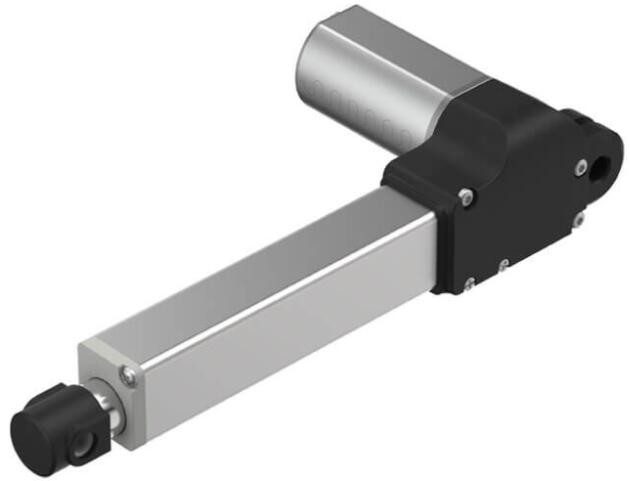

Kitchen Cabinets Motorise DC Actuators 4000N 24V 300mm
This actuator is ideal for manufacturers requiring minimal installation space, delivering impressive force despite its compact dimensions. With a streamlined design of only 100mm and a stroke length up to 300mm, it is capable of withstanding pressures of up to 4000N. For a kitchen automation, such as sink , countops lift up/ down, you will like it.
Features:
-Small size, big force
-Seek design for culinary space

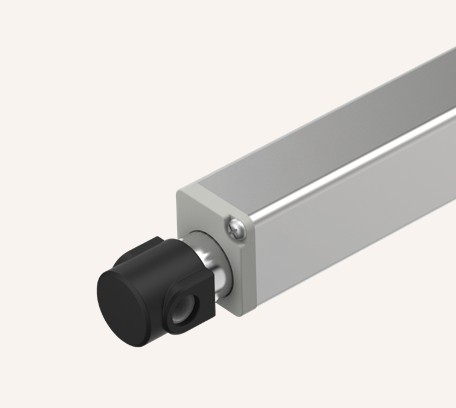

-Varies of front/rear attachments for different application
-Max. thrust can reach 4000N
The actuators are customized products, so the price and description for reference only.
For more information, feel free to contact us. We have all kinds of controllers for this actuator also.
Specifications:
| Working voltage | 24VDC |
| Max. Thrust | 4000N (Push/Pull) |
| Max. speed | 12.1mm/s (at no load); 2.5mm/s( at max. load) |
| Current drawing | 3.1A (max. load) |
| Limite switch | Built-in |
| Stroke | 20mm~300mm |
| Retracted length | ≥Stroke+100mm |
| Color | Black or Grey |
| Output signals (Optional) | Hall sensor |
Load vs. Speed vs. Current:
| Loading (N) | Self locking force (N) | Typical current (A) | Speed (mm/s) | |
| Motor Speed | 3000 | 3000 | 2.7 | 3.6 |
| (4100RPM, Duty Cycle 10%) | 2000 | 2000 | 2.7 | 5.4 |
| Motor Speed | 4000 | 4000 | 3.1 | 2.5 |
| (4500RPM, Duty Cycle 10%) | 3000 | 3000 | 3.1 | 5.0 |

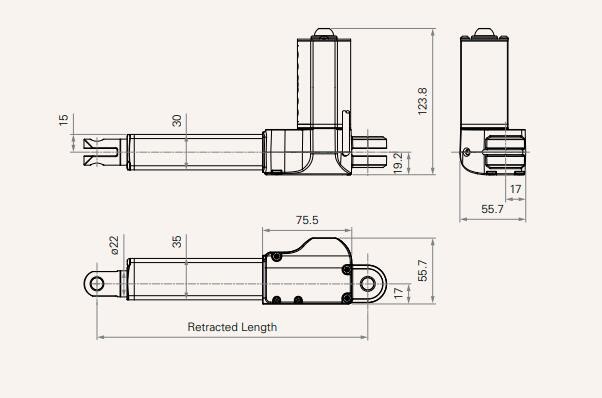

Standard size : ( Mini. Installation length : ≥ Stroke + 100mm )
it can work with our Hall sensor actuators 4CH synchronizd controller LS-RSK-H4:
12~28VDC in one box
Built-in overloading safety protection
Max. current max.25A
Duaul operation are avaialble

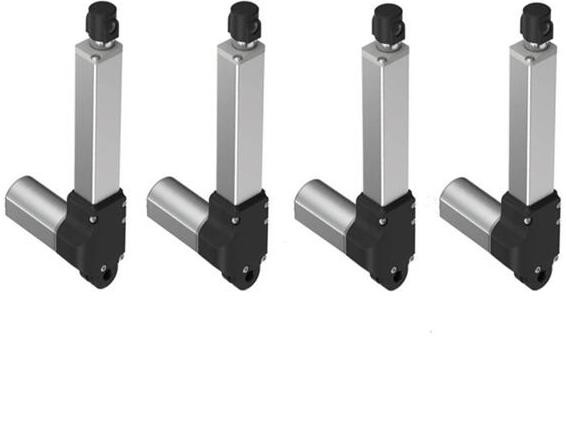

Control 2/3/4 actuators moving in synch 100% in any situatioin
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance test
Q: Is the product ready to be dispatched?
A: No, the actuators are tailored products, so we need to produce the items per your request.
Q: How long can I get my order, what's the lead time?
A: It usually takes about 10~15 working days to produce samples. But it may vary from time and real situation sometimes.
Q: Do you have after-sale service?
A: Yes. We offer technical support and fast after-sales service. Feel free to contact us if you encounter any questions.
Q: What is your payment?
A: We accept TT, LC, Paypal
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
