QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-51 |
| Minimum Order Quantity: | 1 |
| Price: | USD 29~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 24V DC | Max. Thrust: | 6000N (600Kg) |
|---|---|---|---|
| Max. Speed At Max. Load: | 8.6mm/s | Max. Speed At No Load: | 26.2mm/s |
| Retracted Length: | ≥ Stroke/2 + 180mm / ≥ Stroke/2 + 240mm | Stroke: | 220~1000mm |
| IP Rating: | IPX4 | Output Signals: | Hall Sensors |
| Color: | Matte Silver, Black | Limit Switch: | Built-in |
| Highlight: | 6000N Telescopic Electric Actuator,26mm/s Telescopic Electric Actuator,Healthcare Industry Telescopic Electric Actuator |
||

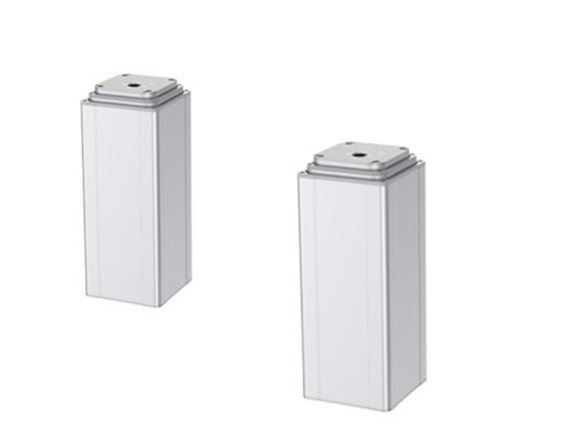

DC Motor Telescopic Electric Actuator 6000N 26mm/s Healthcare Industry
This electric column is ideal for height-adjustable medical equipment , healthcare and industrial applications. It features a 3-stage telescopic design for stability and offers multiple cable exit options from the top or sides.
Specification:
| Voltage | 24VDC |
| Max. loading force | 6000N/ 600kg |
| Max. speed | 8.6mm/s (Full load); 26.2mm/s ( No load) |
| Retracted length | ≧ S/2+180mm ; ≧S/2+240 |
| Stroke | 220mm~1000mm |
| IP rating | IPX4 |
| Stages | 3- stage |
| Output signals | Hall sensors |
| Color | Matte Silver; Black |
Features:
- 3 stage, long adjustable stroke for your choice
- High loading force, max up to 6000N
- 2 retracted length (mini. installation length) for option
- Muiltiple cable exit option to meet your needs
Applications:
Hospital beds, Examination tables, Ophthalmic equipment, Practitioner's seats, Nurses' stations, Dentist's chairs and other height adjustable stands
With LINSHENG ACTUATOR CONTROLLER LS-RSK-H4, you can build your own stair lift like Flexstep
- All controllers are CE, FCC certificated by SGS
- Wired switch and wireless remote control dual operation
- Control 4 Hall actuators at the same time or control 2 acuators separately
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
