| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE |
| Model Number: | LS-PAT-83S |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 29~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | DC24V | Max. Load: | 700N |
|---|---|---|---|
| Max. Speed: | 35mm/s (at Max. Load) ; 44mm/s (at No Load) | Retracted Length: | 490mm |
| Stroke: | 650mm | Shape: | 2-stage, Upside Down, Inline |
| Output Signals: | Hall Sensors | Color: | Black / Grey / White |
| Highlight: | 24V Lifting Furniture Column DC Motor,Inverted Inline Column DC Motor,2-Stage Column DC Motor |
||

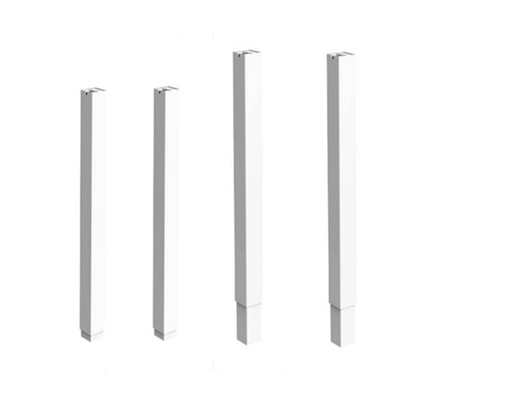

2-Stage Inverted Inline Column DC Motor 24V for Lifting Furniture
These 2-stage Inline electric lifting columns boast a sleek design without compromising stability. With no external motor housing, they are perfect for ergonomic monitor stands, side tables, or stylish lifting furniture that demands a clean and refined look.
Specifications:
| Voltage | 24VDC |
| Max. thrust | 700N (70kg) |
| Max. speed | 35mm/s (max. load); 44mm/s (no load) |
| Retracted length | 590mm |
| Stroke | 650mm |
| Current drawing | ≤5.5A (with load) ; ≤2.5A (no load) ; |
| Design | 2 stages; Inline; Upside down |
| Output signals | Hall sensors |
| Weight | 5.5KG/ Column |
Features:
- Inline shape, two stage
- Multiple colors for your choice
- Widely applied to height-adjustable stands, side tables and other smart lifting household.
With LINSHENG controller LS-RSK-6, you can control two actuators move in parallel remotely.
- All control box are CE, FCC certificated
- 4 Positions are programmable
- Max. current up to 25A
