QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Certification: | CE,FCC |
| Model Number: | LS-RSK-4+LS-PAT-32 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 50~199/PC |
| Packaging Details: | Box |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12VDC | Loading Force: | 10000N (push); 4000N (pull) |
|---|---|---|---|
| Max. Speed: | 3.2mm/s(max. Load); 39mm/s(no Load) | Stroke: | 25~1000mm |
| Retracted Length: | ≥ Stroke + 163mm | IP Rating: | IP66W |
| Max. Current (Controller): | 30A | Frequency: | 433.92MHz |
| Highlight: | High Force Linear Actuators,IP66 Linear Actuators,Remote Control Linear Actuators |
||
High Force Linear Actuators IP66 Speed Adjustable Remote Control System
These actuators are designed for durability and resistance to dust and water, they are ideal for both indoor and outdoor use, ensuring efficient performance in demanding environments. Compatible with LINSHENG speed-adjustable remote control system, they are perfect for automation in industrial settings, they offer flexibility and convenience with adjustable speed settings tailored to specific operational needs.
Specifications:
-Actuator speed-adjustable controller LS-RSK-4
| Working voltage | 12VDC |
| Max. current | 25A |
| Frequency | 433.92MHz |
| Remote range | 50 meters |
| New remotes | Porgrammable |
| Features |
1. Remote control 2 actuators move in parallel 2.Actuators moving speed adjustable by potentiometer 3.Switch button built-in for emergency 4.CE,FCC certificated by SGS |

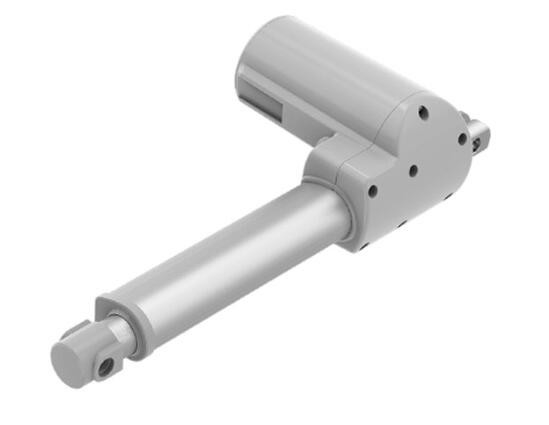

-Electric Linear Actuator LS-PAT-32
| Working voltage | 12V/24VDC |
| Max. thrust | 10000N (Push); 4000N (Pull) |
| Max. Speed | 3.2mm/s (Max. load)；39mm/s ( no load) |
| Max. current | ≤5.5A |
| Stroke | 25mm~1000mm |
| Retracted length | ≥Stroke+163mm |
| IP rating | IP66W |
| Limit switches | Built-in |
| Options | Hall sensors |
| Features |
1. High loading force 2. Long stroke option |
| Application |
Patient hoist application Medical bed Door/hatch automation application |
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
