QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-83 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 29~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Working Voltage: | 12V/24V DC | Color: | Black / Grey |
|---|---|---|---|
| Max. Thrust: | 2000N | Max. Speed: | 6.2mm/s （full Load）; 20mm/s ( No Load） |
| Stroke: | 20~300mm | Retracted Length: | ≥ 160mm |
| Limit Switch: | Built In | IP Rating: | IP66 |
| Signal Output: | Hall Sensors ( Optional) | ||
| Highlight: | IP66 Electric Linear Actuator,High Force Electric Linear Actuator,2000N Electric Linear Actuator |
||

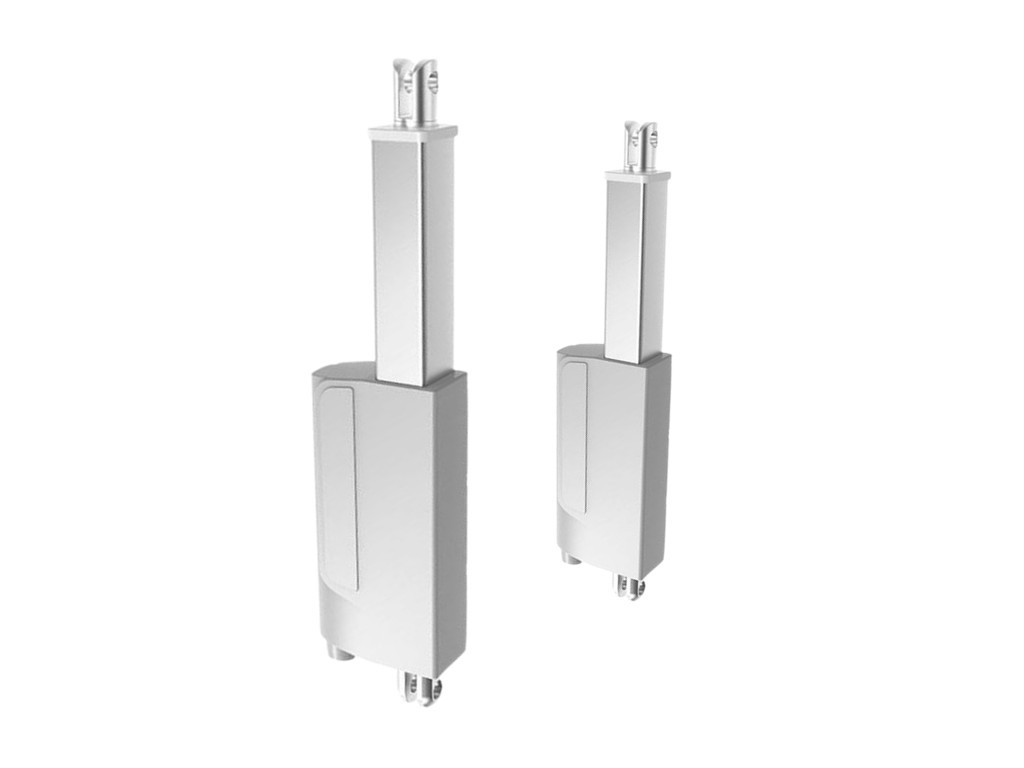

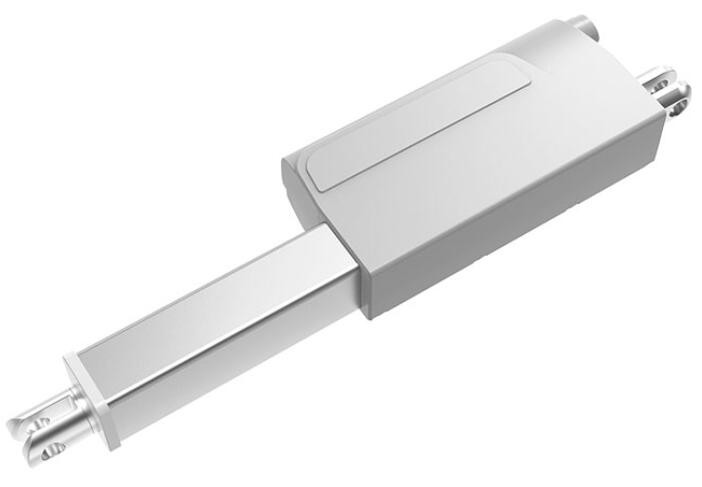

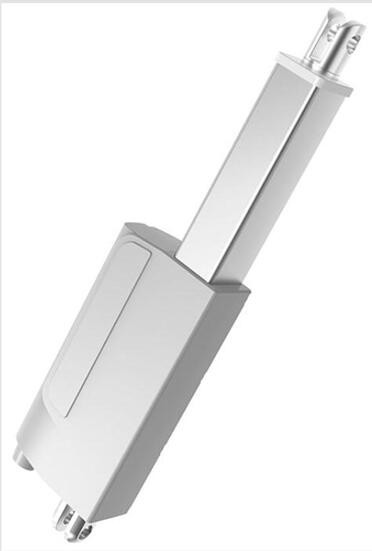

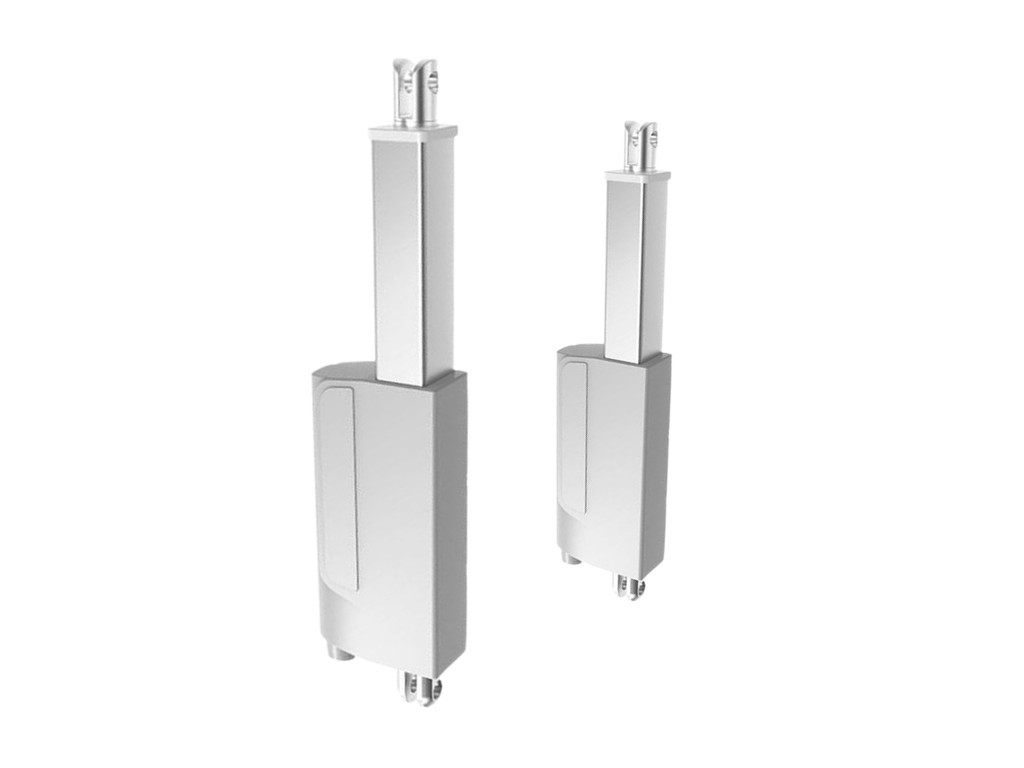

Slim Electric Linear Actuator High Force 2000N IP66 For Window Blinds
This DC mini linear actuator is purpose-built for medical applications that demand a compact and efficient design. With its ultra-slim profile and minimal installation requirements, it offers manufacturers exceptional flexibility during the design phase. The compact, palm-sized motor delivers up to 2000N of force, making it perfect for products where space is limited.
Specifications:
| Voltage | DC 12V/ 24V |
| Loading force | 500N / 1500N / 2000N |
| Max. speed | 20mm/s ( no load) ; 6.2mm/s (full load) |
| Stroke | 20mm~300mm |
| Retracted length | ≧160mm |
| IP Rating | IP54 / IP66 |
| Output signals | Hall sensors (optional ) |
| Limit switch | Built in |
Features:
Applications:
smart window blinds, automated shelving, and motorized doors/gates
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
