QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-14 |
| Minimum Order Quantity: | 2 |
| Price: | USD 29~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Working Voltage: | 12V / 24V DC | Max. Thrust: | 6000N |
|---|---|---|---|
| Max. Speed: | 4.2mm/s (full Load) ; 14.5mm/s (no Load) | Stroke: | 25mm ~ 300mm |
| Retracted Length: | ≧S + 188mm | Color: | Black / Grey |
| Signal Output: | Hall Sensors | ||
| Highlight: | IP66 Precision Electric Linear Actuators,12V Precision Electric Linear Actuators |
||

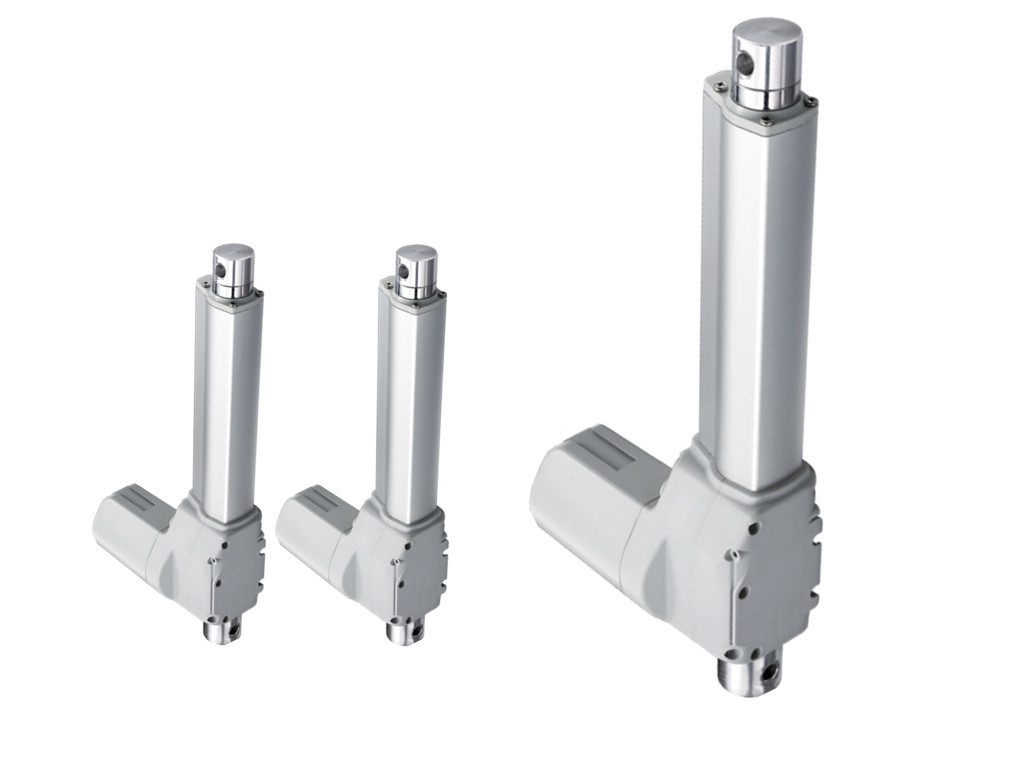

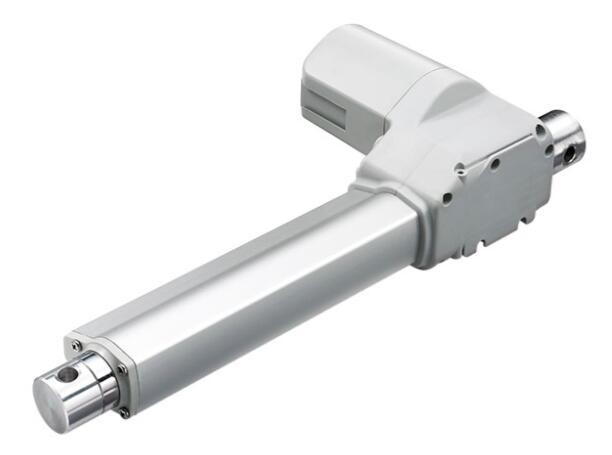

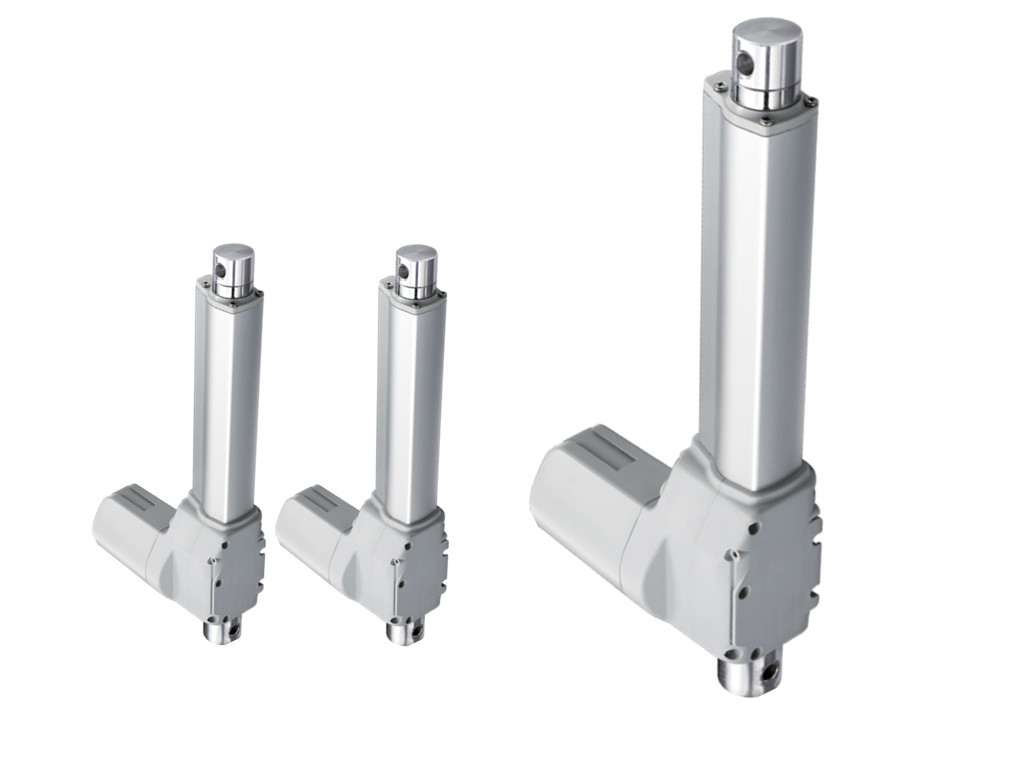

6000N Precision Electric Linear Actuators IP54/IP66 12V for X-ray Table
Designed for demanding applications, this electric linear actuator supports 12V and 24V power options and provides a maximum thrust of 6000N. It is equipped with a manual crank attachment, allowing medical professionals to manually adjust patient beds with ease. Optional IP54 or IP66 protection ratings are also available for enhanced durability.
NOTE:
The products are tailored items, the specifications and price for reference only.
Please provide us with the parameters of the actuators you need, we can give you some recommendations
Features:
Specifications:
Voltage : DC 12V / 24V
Loading : 6000N (push) ; 4000N (pull)
Stroke : 25mm ~ 300mm

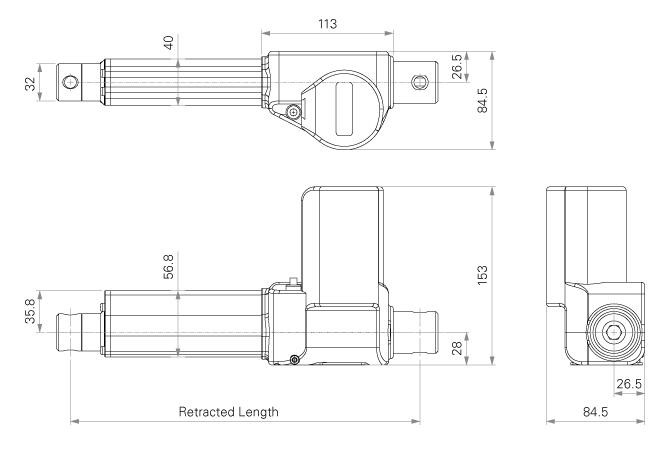

Retracted length : ≧ Stroke + 188mm
Max. speed : 4.2mm/s ( full loading) ; 14.5mm/s ( no loading)
Color : Black / Grey
Signal Output : Hall sensors
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
