QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-19 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 20~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12/24V DC | Max. Thrust: | 12000N (push); 6000N (pull) |
|---|---|---|---|
| Max. Speed: | 4mm/s (full Load); 57.3mm/s ( No Load) | Stroke: | 25~1000mm |
| Retracted Length: | ≥ Stroke + 210mm | IP Rating: | IP66W |
| Signal Output: | Hall Sensors, POT | Color: | Black, Grey |
| Options: | Safety Nut, Quick Release, Manual Release | ||
| Highlight: | DC Linear Actuator For Healthcare Device,Manual Release DC Linear Actuator |
||

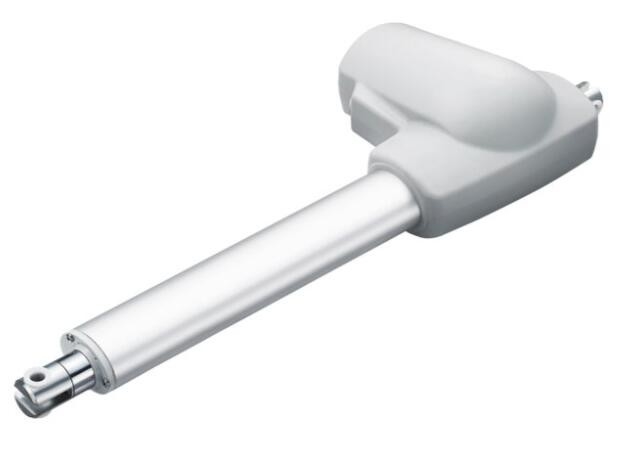

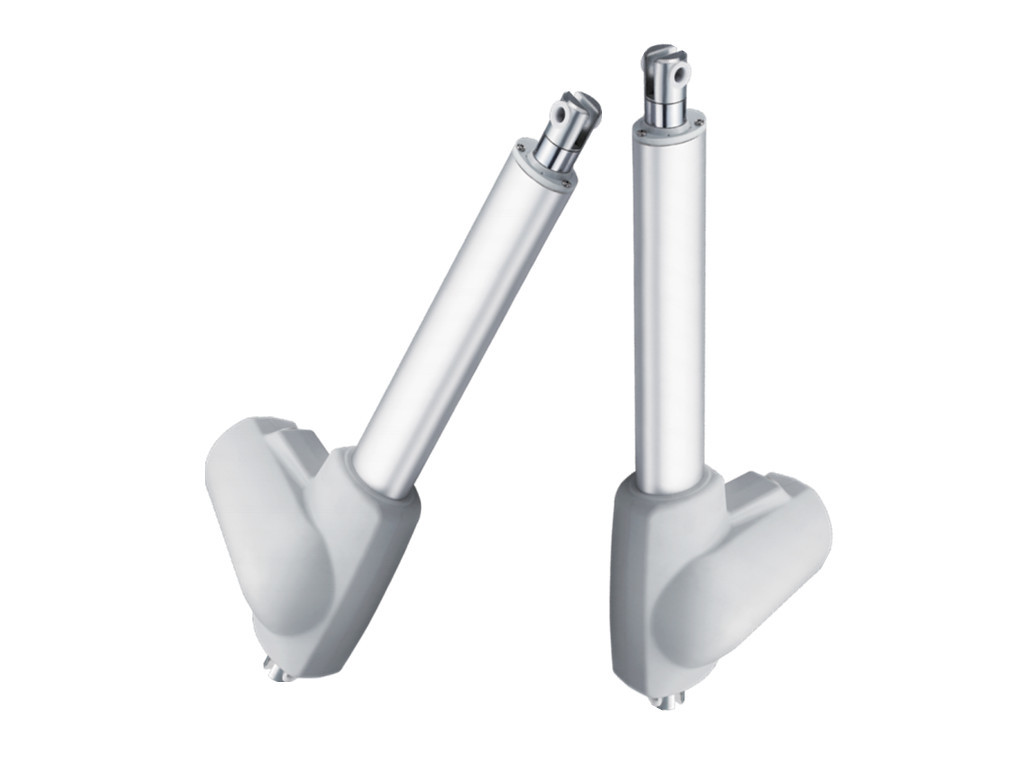

DC Linear Actuator for Healthcare Device High-load w/ Manual Release
This electric linear actuator is specifically engineered for heavy-duty use in patient lifts and bariatric beds. These critical applications demand a device that prioritizes safety, dependability, and smooth functionality. A key feature of this model is its manual release capability, which ensures patients can be safely lowered during emergencies or power failures.
NOTE:
price and specification for reference only as the actuators are customized products.
Please provide us with hte specification of the actuators you need, we can offer recommendations per your request.
Specifications:
Working voltage : 12V / 24V DC
Loading force : 1500N / 2500N / 4000N / 7000N / 10000N / 12000N
Stroke : 25mm ~ 1000mm
Retracted length : ≧Stroke + 210mm
Max. speed : 4mm/s (full load) ; 57.3mm/s ( no load)
IP rating : IP66W
Output signals : Hall sensors
Color : Black / Grey
Options : Safety nut / quick release / manual release
Features:
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
