QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-RSK-H1+LS-PAT-83 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 29~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24VDC | Loading Force: | 500N / 1500N / 2000N |
|---|---|---|---|
| Max. Speed: | 6.2mm/s（full Load） ; 20mm/s (No Load） | Stroke: | 20mm~300mm |
| Retracted Length: | ≥ 160mm | Color: | Black / Grey |
| IP Rating: | IP66 | Output Signals: | Hall Sensors |
| Highlight: | 450lb Electric Cylinder Actuator,IP66 Electric Cylinder Actuator,Synchronization System Electric Cylinder Actuator |
||

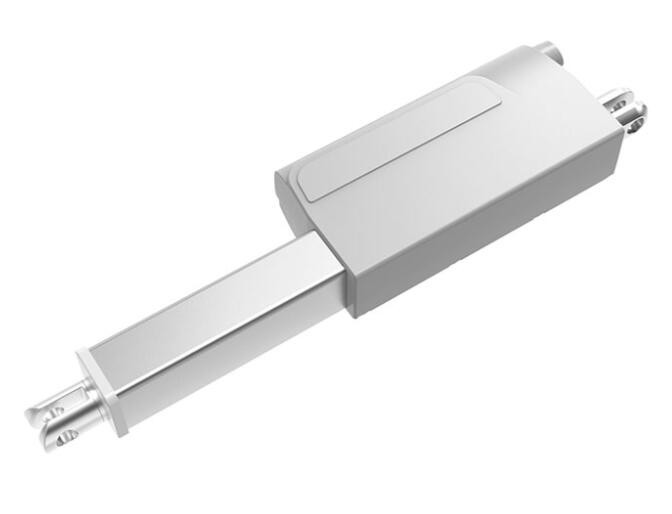

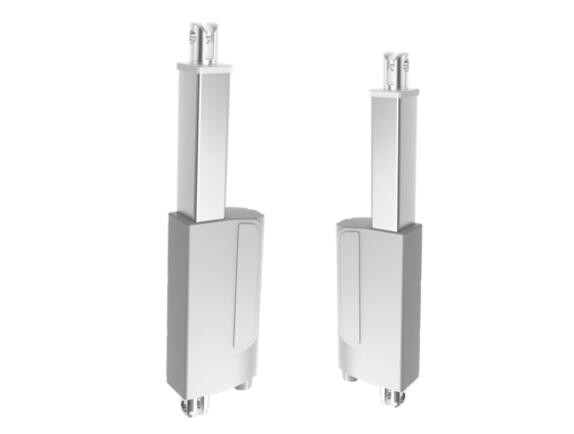

24V IP66 450lb Loading Electric Cylinder Actuator Synchronization System
Engineered for recline, wheelchair, and exam chair applications, this linear actuator combines a compact form factor with outstanding performance. Its slim design and minimal installation footprint give users the freedom to innovate and optimize layouts. With a small yet powerful motor capable of producing up to 2000N of force, it is an excellent choice for tight spaces in medical or furniture equipment. Work along with LINSHENG 1/2 actuator controller, you can operate the actuators easily via a remote control or a wired switch.
Specifications:

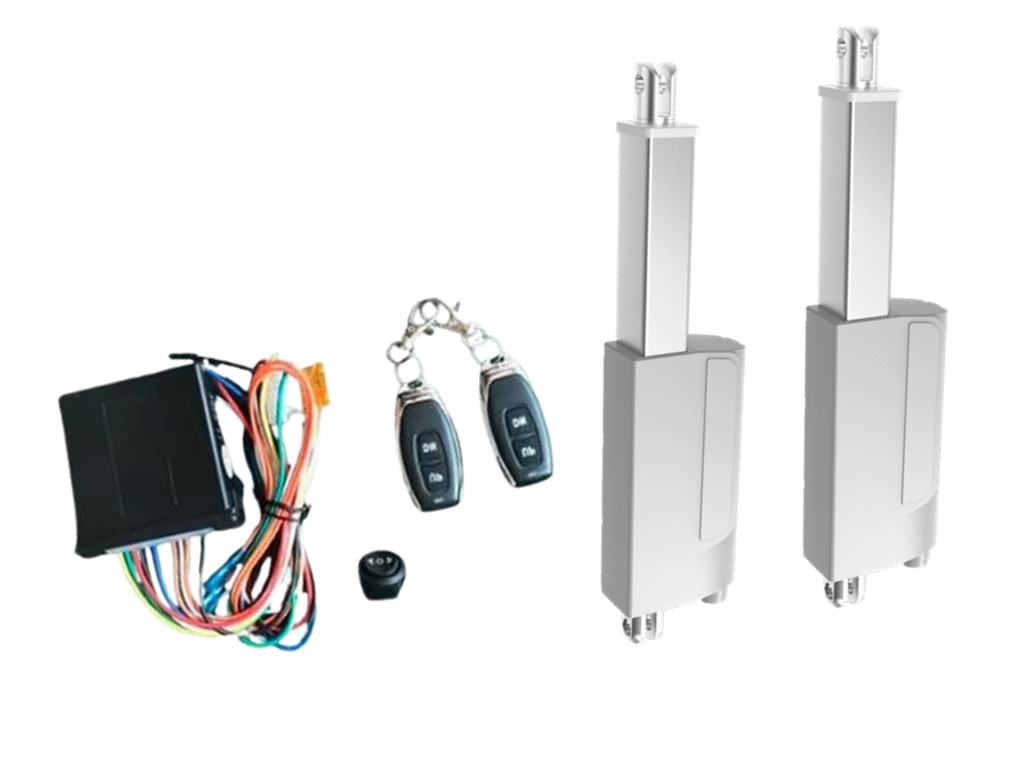

| Actuators LS-PAT-83 | Control box LS-RSK-2b (safety) |
|

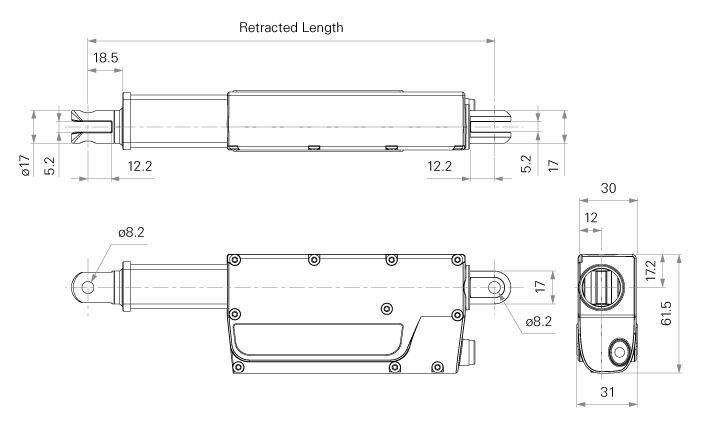

Voltage: 12V / 24VDC Loading: 500N/ 1500N/ 2000N Max. speed: 6.2mm/s(full load) ; 20mm/s (No load) Stroke: 20mm~300mm Retracted length: ≥ 160mm Output signals: Hall sensors Color: Black / Grey IP rating : IP66 |
Voltage: 12V / 24VDC Max. current: 20A Frequency: 433.92MHz Remote range: 30 meters Control 1 / 2 actuators work in paralle Wired switch and remote dual operation Overloading safety protection in built CE, FCC are certificated by SGS
|
Features:
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
