QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-HD1 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 79~299/PC |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V / 24V DC | Max. Load: | 7000N |
|---|---|---|---|
| Stroke: | 50mm-1000mm | Speed: | 5.5mm/s-35mm/s |
| IP Rating: | IP65 | Duty Cycle: | 25% |
| Limit Switch: | Built In | Signal Output: | Hall Sensors |
| Temperature: | -40℃ ~ 65℃ | Color: | Black |

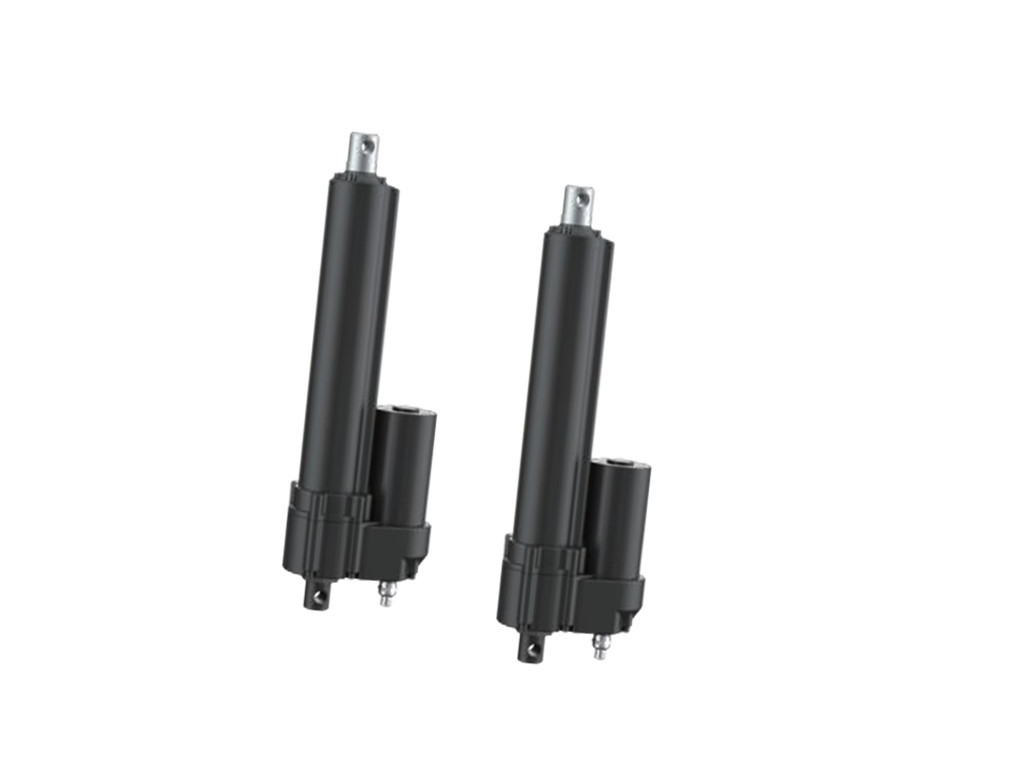

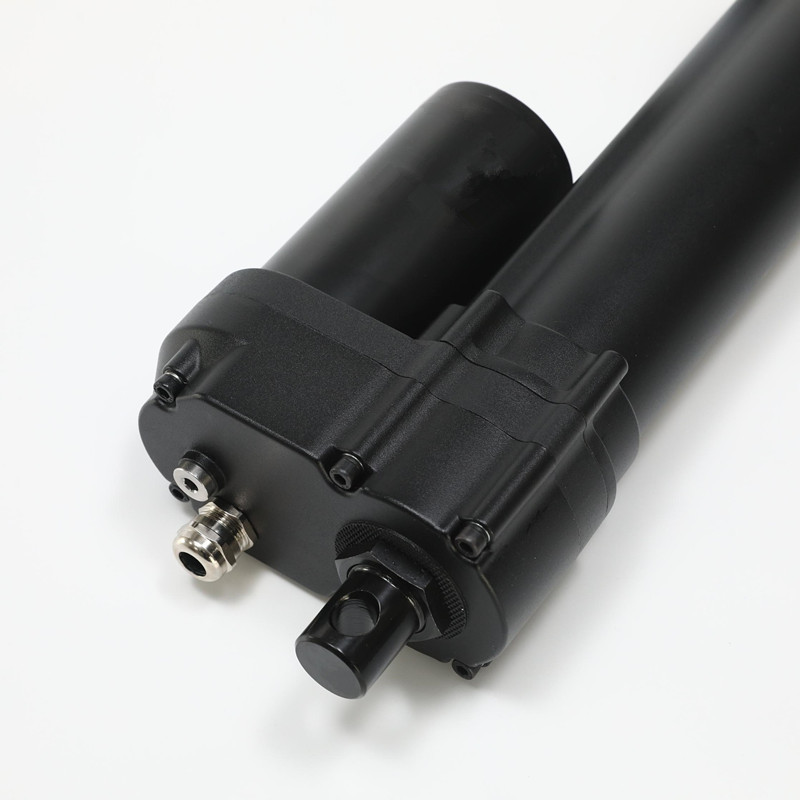

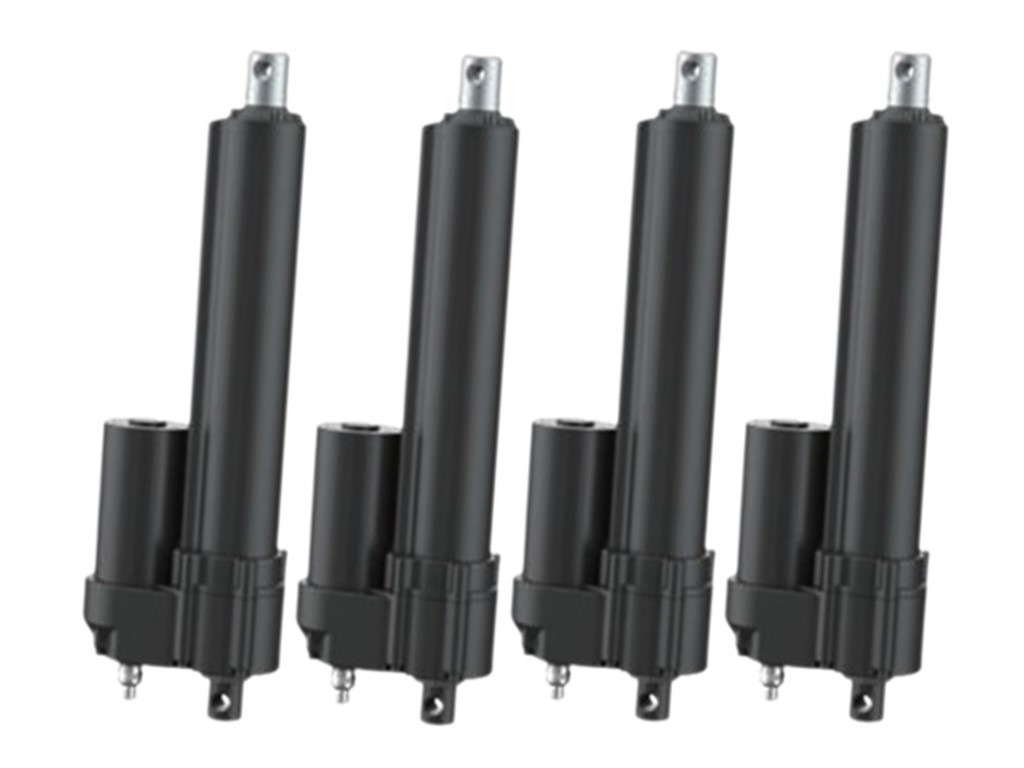

Heavy-Duty Linear Electric Cylinder 2000N ~ 7000N Force Waterproof DC Motor
This robust industrial actuator delivers exceptional performance with a maximum load force of 7000N (1500 lb) and tailored stroke from 50mm to 1000mm. Built for reliability, it boasts an IP65-rated enclosure and integrates overload protection through a clutch mechanism. With a customizable stroke and load froce, it is well-suited for a wide variety of applications.
Specifications:
| Working voltage | 12V / 24VDC |
| Max. load force | 7000N |
| Speed | 5.5mm/s ~ 35mm/s |
| IP rating | IP65 |
| Duty cycle | 25% |
| Limit switch | Built-in |
| Overload protection | Clutch |
Features:
Customizable stroke: tailored stroke from 50mm to 1000mm for different projects.
Durable Design: IP65-rated housing for protection in tough environments.
Heavy-Duty Performance: Reliable operation for industrial and heavy-duty use.
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
