QUALITY IS EVERYTHING
| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-RSK-H4+LS-PAT-42 |
| Minimum Order Quantity: | 1 piece |
| Price: | 199USD ~ 1999 USD/PCS |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24VDC (Column); 12V~28V (Controller) | Max. Load Force: | 330KG |
|---|---|---|---|
| Column Outer Dimension: | 110*110mm Square | Stroke: | 100mm ~ 600mm |
| Column Color: | Silver | Controller Features: | Synchronization ; Dual Operation ; Safety Protection |
| Highlight: | Medical Equipment Telescopic Actuator,3-Stage Telescopic Actuator,3000N Telescopic Actuator |
||

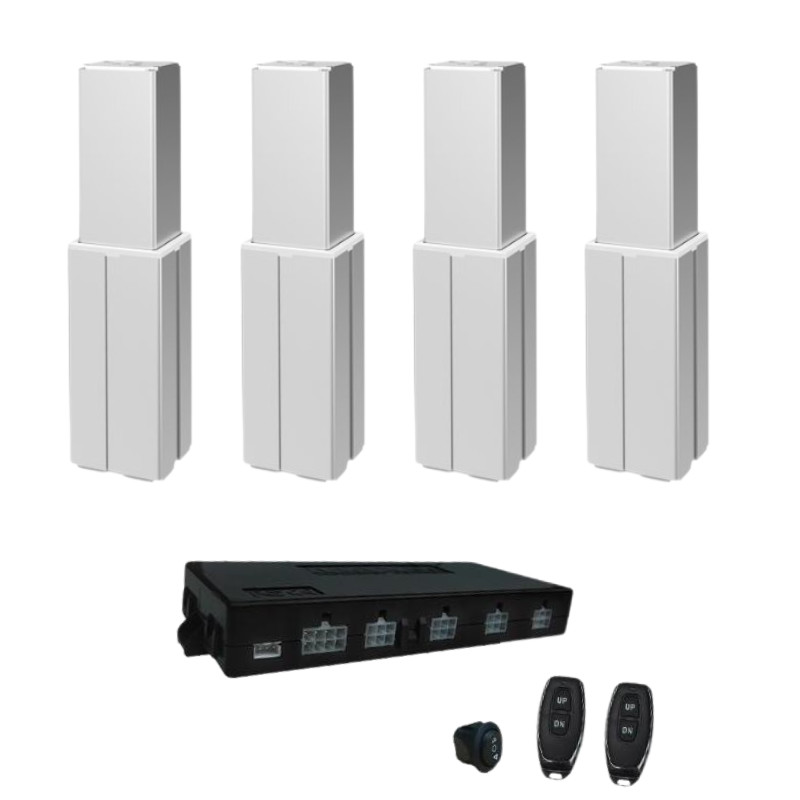

3-Stage Extruded Aluminum Column 3000N Telescopic Actuator Synchronize Control System
This 3-stage telescopic actuator, constructed from high-strength extruded aluminum, delivers a 3000N load capacity with smooth and stable height adjustments. Designed for precision and durability, compatible with the synchronized control unit LS-RSK-H4 to ensure multiple columns operate in perfect unison. Ideal for medical, industrial, and ergonomic applications requiring high load support and precise motion control.
Features:
Lifting column
-Square profile, 2-stage high quality extruded aluminum
-Stroke is customizable from 100mm to 600mm
-Max. load force up to 3300N (330KG)
Column controller
- 2CH/3CH/4CH Hall sensor electric actutors synchronization can be done via one unit
- 12V~28VDC in one box
- Plug and play, easy to be operated
Applications:
Operating tables, Dental chairs or other medical examination equipment
Healthcare Therapy Equipment
Adjustable workstation; screen, display platform
Main Specifications:
| Controller LS-RSK-H4 | |
| Working voltage | Wide voltage 12V~28VDC |
| Currernt | 30A work against heavy-duty actuators |
| Operation | Hard-wired switch and remote control |
| Frequency | 433.92MHz |
| Remote range | 50 meters |
| New remotes | Programmable (4 remote at most) |
| Feature 1 | Synchronize multiple Hall effect actuators (2/3/4) |
| Feature 2 | Overcurrent safety protection function |
| Lifting column LS-PAT-42 | |
| Working voltage | 12VDC / 24VDC |
| Max. load | 3300N |
| Max. speed | 6.5mm/s ( with load); 36mm/s (no load) |
| Retracted length | ≧Stroke/2 + 188mm |
| Stroke | 100mm ~ 600mm ; 2 stage |
| Signal output | Hall sensors / Pot (Option) |
| Max. bending moment | 200Nm (Dynamic) ; 400Nm(Static) |
| Color | Silver |
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
