| Place of Origin: | China |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-RSK-H4+LS-PAT-50 |
| Minimum Order Quantity: | 1 piece |
| Price: | 119USD ~ 1999 USD/PCS |
| Packaging Details: | Carton |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/month |
| Voltage: | 12V/24VDC (Column); 12V~28V (Controller) | Max. Load Force: | 800N |
|---|---|---|---|
| Column Outer Dimension: | 120*70mm Rectangular | Stroke: | 675mm |
| Column Color: | Black / Grey | Controller Features: | Wide Voltage; Synchronization ; Dual Operation ; Safety Protection |
| OEM/ODM: | Support | Sample Order: | Support |
| Highlight: | Protection Lifting Columns,Synchronize Control System Lifting Columns,1235mm Lifting Columns |
||
1235mm Fully Length Telescoplic Lifting Columns Synchronize Control System w/ Protection
This lifting column remote control system is a high-precision height adjustment solution designed for seamless operation in low-load industrial and ergonomic applications.3-stage telescopic lifting columns LS-PAT-50 feature a 1235mm full length (stroke+ retracted length),800N max. load force. Integrated hall sensors enable precise positioning and synchronization. With the dual operations control box LS-RSK-H4, the users can control the columns easily in the way they prefer. Moreover, the controller's inbuilt overload safety protection will protect your device/system from damage.
Features:
Lifting column
- 3 stage with fixed retracted length and stroke
- High-quality extruded steel appearance
- Compact size with stable lifting
Column controller

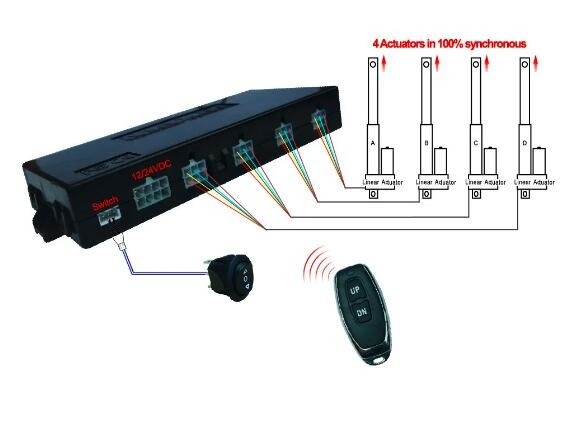

- Full synchronization of up to 4 lifting columns, even with varying loads
- Wide voltage range (12VDC–28VDC) for compatibility with both 12V and 24V columns
- Dual operation: wired switch and remote control for flexible use
- Overcurrent protection: stops or reverses movement to prevent damage
Applications:
Workstations, Medical equipment, Automation systems, Adjustable furniture
Main Specifications:
| Controller LS-RSK-H4 | |
| Working voltage | 12V / 24V |
| Current | 8A per channel, Max.32A current |
| Operation | Wired-swtich, wireless remote control |
| Frequency | 433.92MHz |
| Remote range | 50 meters |
| New remotes | Up to 4 pcs per controller, programmable |
| Feature 1 | Overload protection and the Amp. value is adjustable |
| Feature 2 | Synchronization multiple lifting columns with different loads |
| Lifting column LS-PAT-50 | |
| Working voltage | 24VDC |
| Max. load | 500N / 800N |
| Max. speed | 20mm/s ( with load); 36mm/s (no load) |
| Retracted length | 560mm |
| Stroke | 675mm ; 3 stage |
| Signal output | Hall sensors (Option) |
| Outer dimension | 120*70mm rectangular |
| Color | Black / Grey |
