Electric DC Tubular Actuator 20mm Tube 5KG//10KG/15KG Thrust 10mm-400mm Travel Rod

Electric DC Tubular Actuator 20mm Tube 5KG//10KG/15KG Thrust 10mm-400mm Travel Rod

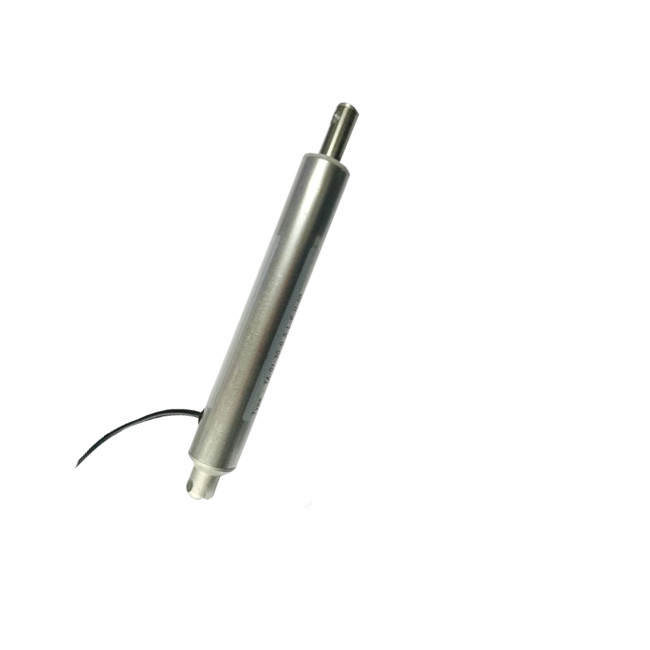

Need compact, powerful linear motion? The LS-TB-20 Tubular Actuator is a pen-sized DC motor with a 5KG–15KG (50N–150N) load capacity and an customized 4"–15" stroke. Whether for medical instruments, robotics, or automated systems, this actuator provides precision, reliability, and a space-saving design. Customizable options ensure it fits your exact

Parameters:

Specifications:

Voltage: 12V / 24V DC

Load force: 40N / 100N / 150N

Stroke: 10mm ~ 400mm

Limit switches: Built in

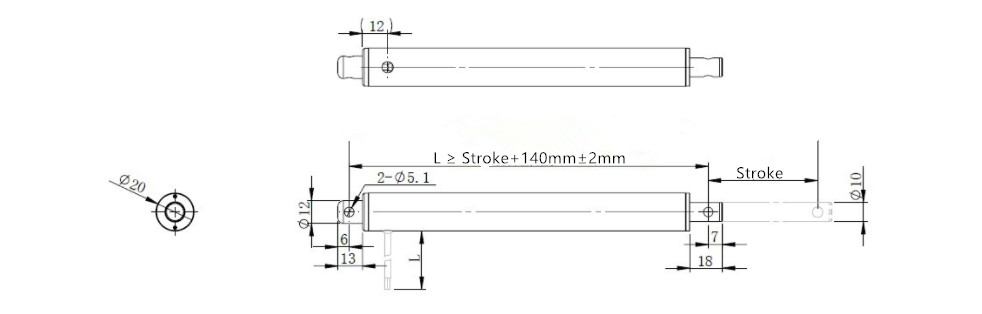

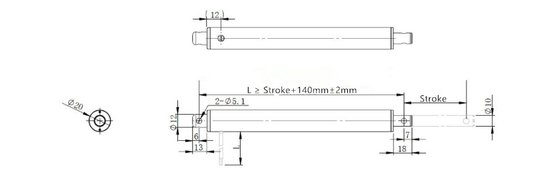

Retracted length: ≥Stroke+140mm

Color: Silver

Application:

Small automation applications such as drawers, cabinet opener

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
