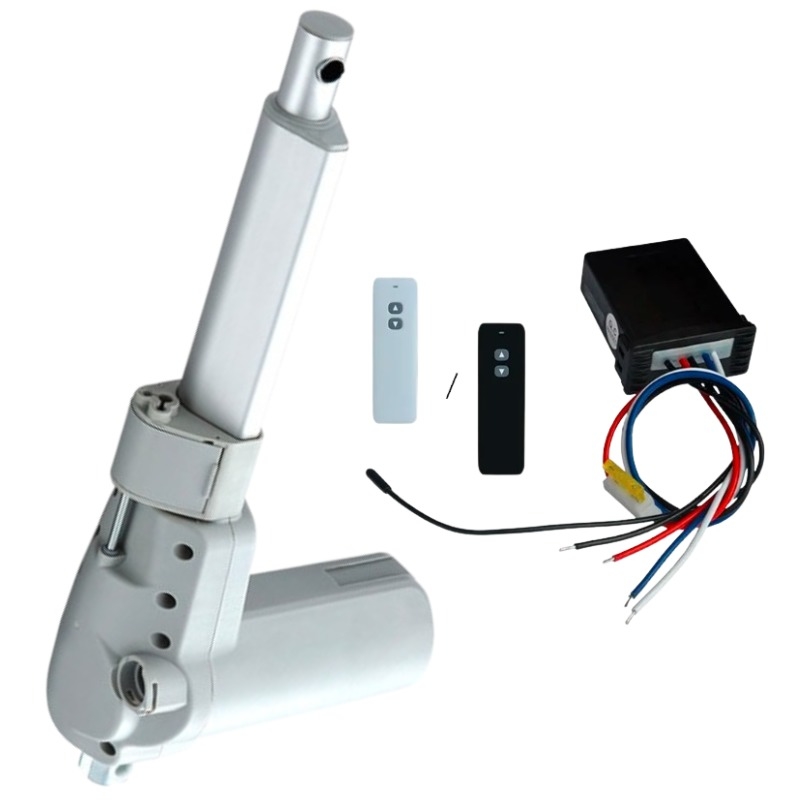

High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection

High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection
High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Model Number: LS-PAT-22+LS-RSK-1
Minimum Order Quantity: 1 piece
Price: USD59~USD299/PC
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000pcs/month
Get Best Price Contact Now
Voltage: DC24V Max. Load: 10000N(push); 5500N(pull)
Max. Speed At Max. Load: 4mm/s Max. Speed At No Load: 14mm/s
Stroke: 30mm-800mm Retracted Length: Stroke+210mm
IP Rating: IP66 Options: Quick Release
Control Unit: 24V, 15A, Remote Control One Actuator Up/down/stop





            High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection







Specially developed for motorized lifting bed applications, this 24VDC electric actuator combines strength, safety, and reliability. It supports stroke customization from 30mm to 800mm to meet diverse lifting needs. A key highlight is its quick release mechanism, which enables immediate lowering of the patient during emergencies or electrical outages, ensuring safety and peace of mind in critical moments. When used with Linsheng’s single control unit LS-RSK-1, the actuator offers smooth and user-friendly control.







Features:

High Force 10000N in Push
Quick Release Function Optional
2-key big remote, two colors are available





Specifications:

Actuator LS-PAT-22:
Voltage      24V DC
Max. load force      1000Kg(Push); 550Kg(Pull)
Max. speed at max. load      4mm/s
Max. speed at no load      14mm/s
Stroke      30mm -800mm

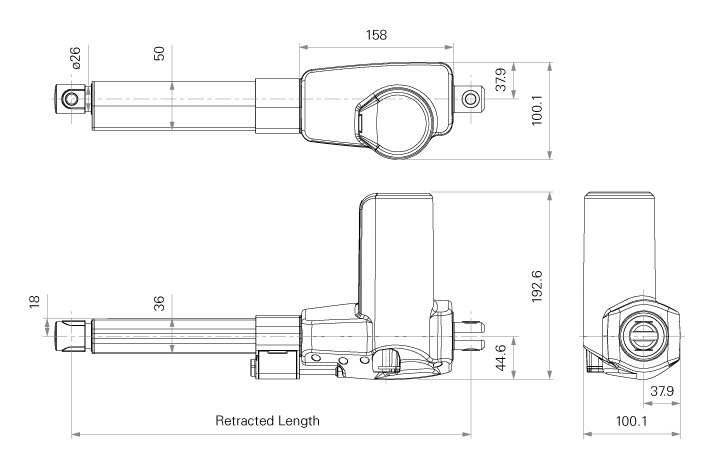

Retracted length      ≥Stroke+210mm
IP rating      IP66
Options      Quick release
Controller LS-RSK-1:
Voltage      24V DC
Max. current      15A
New remote      Programmed ( 4 remote at most)
Protection      Built-in overloading safety protection
Remote range 30 meters

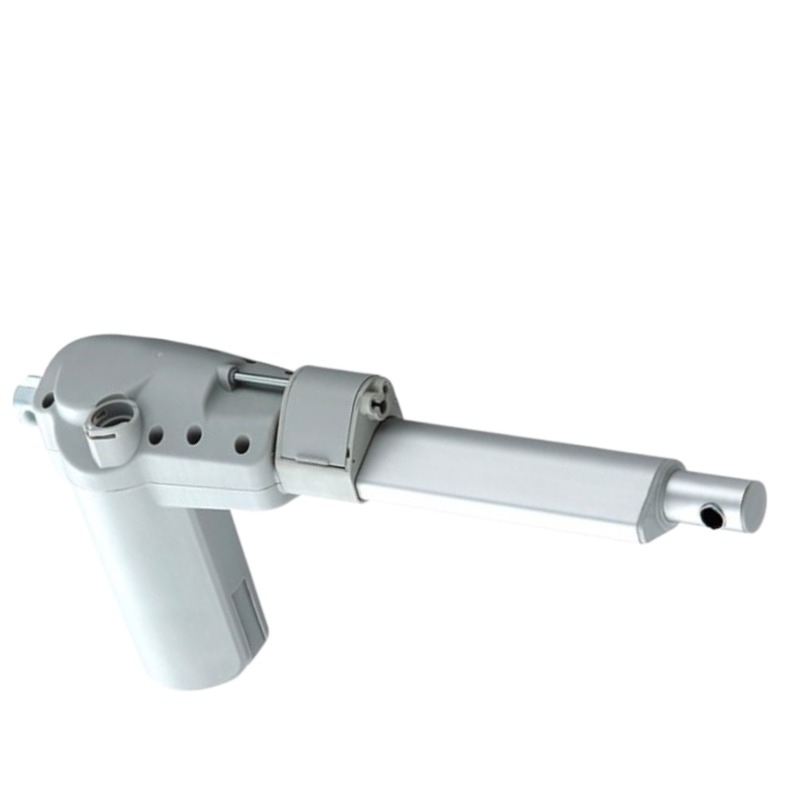

High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection 0

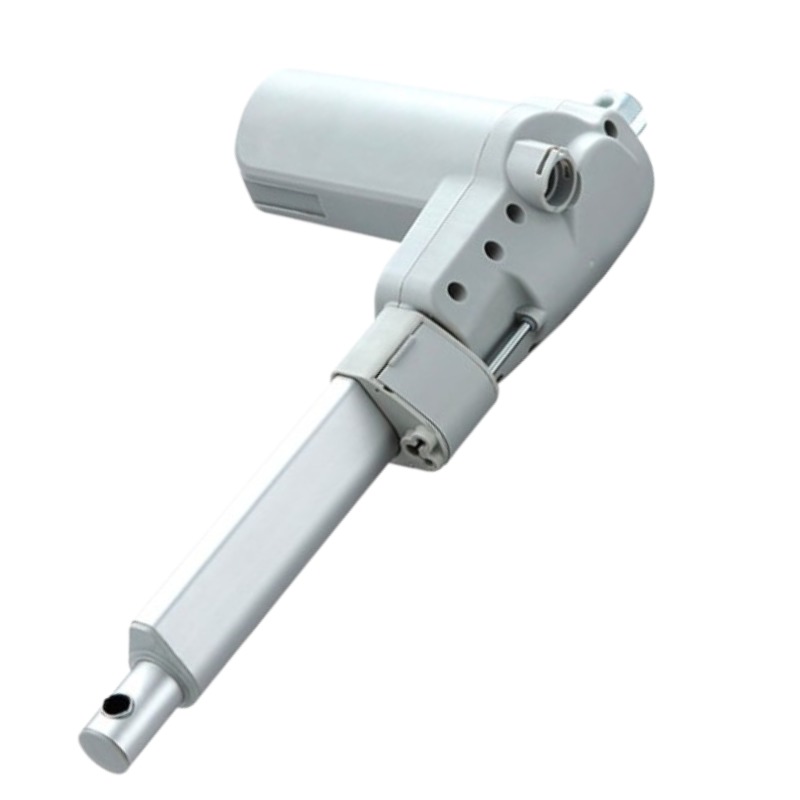

High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection 1

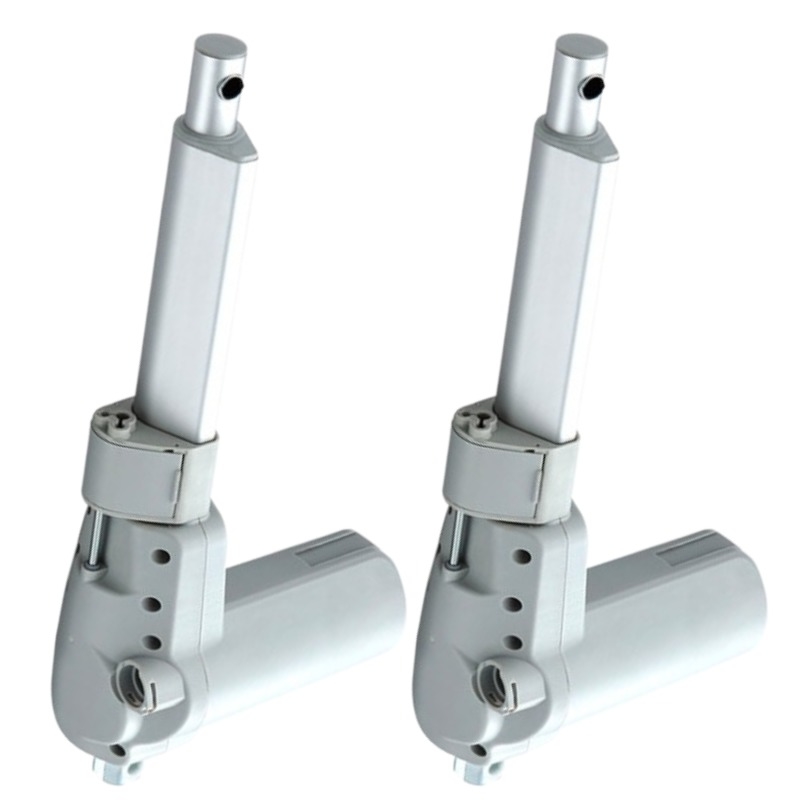

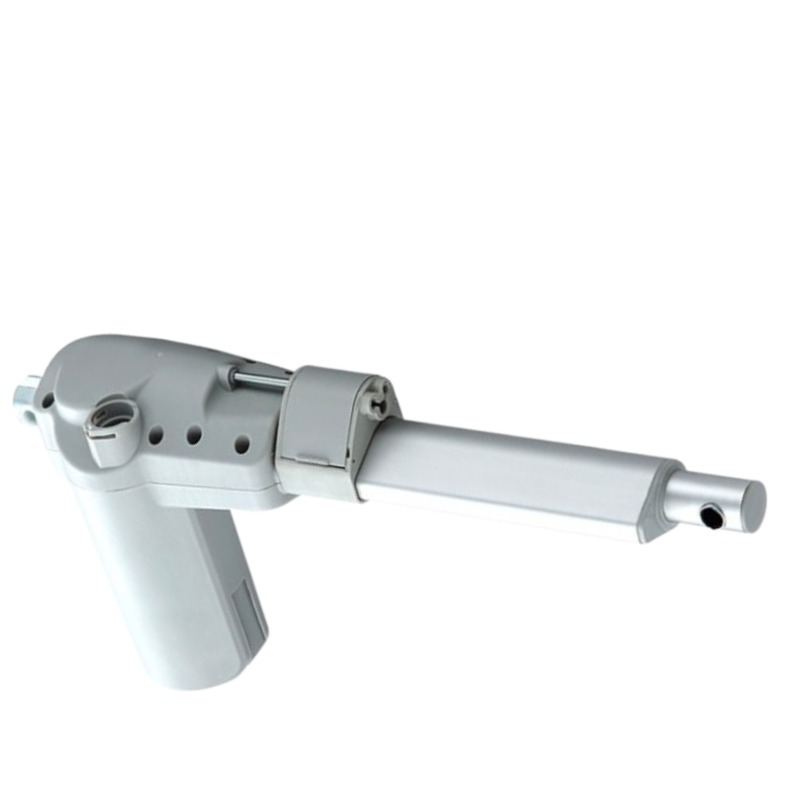

High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection 2High-thrust 10000N IP66 Motorized Actuator Remote Control System 24VDC with Protection 3



About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
