12V DC Heavy-Duty Electric Actuator Remote Control Kit 1300lb Load IP66

Basic Information

Place of Origin:	China
Brand Name:	Linsheng Auto II MaxM
Model Number:	LS-RSK-1 +LS-PAT-26

Minimum Order Quantity:	1
Price:	USD 59~299/PC
Packaging Details:	Carton
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T, PayPal
Supply Ability:	1000pcs/month

Get Best Price Contact Now

Voltage:	DC 12V	Max. Thrust:	1300lb(Push) ; 700lb(Pull)

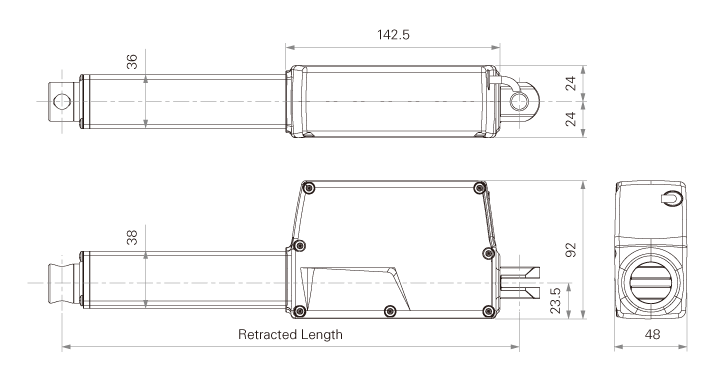

Stroke:	1"- 23.5"	Retracted Length:	≥ 7"
IP Rating:	IP66	Signal Output:	POT; Hall Sensors
Color:	Black , Grey	Customization:	Support
Feature:	Remote Control 1 Actuator UP/DN/ST

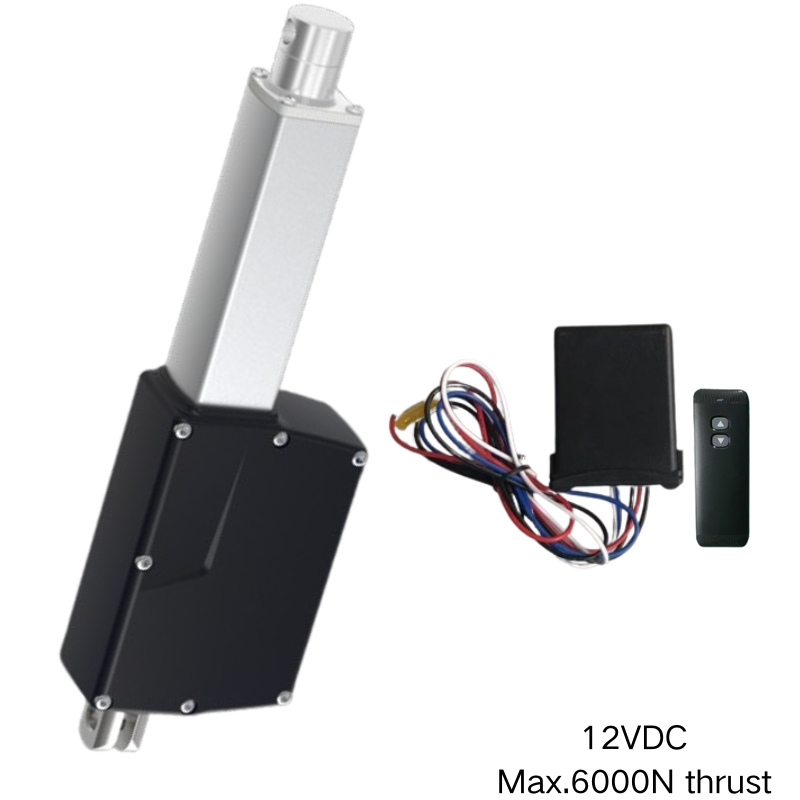

12V DC Heavy-Duty Electric Actuator Remote Control Kit 1300lb Load IP66

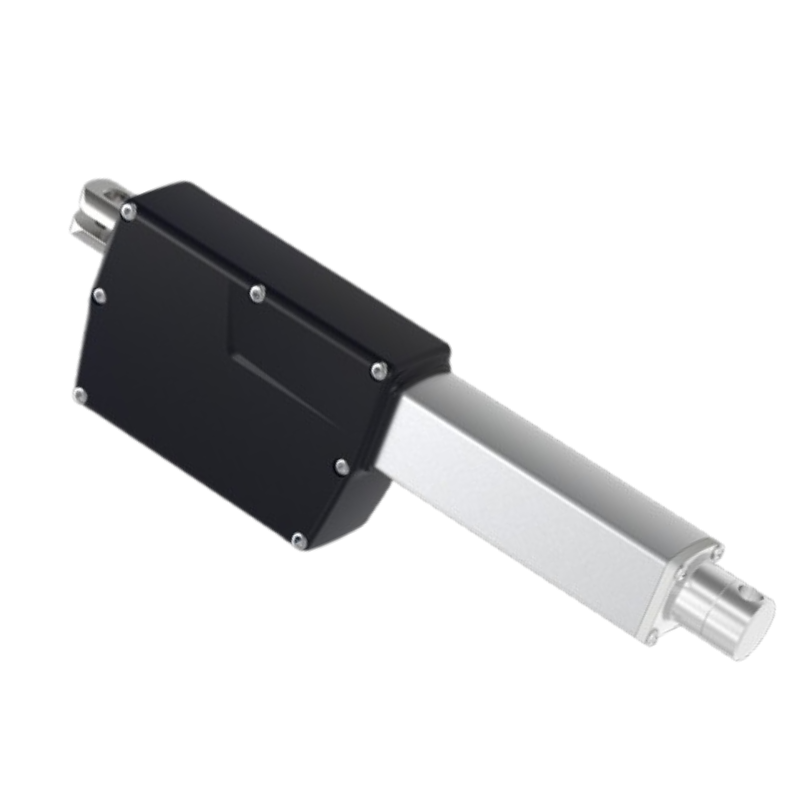

This compact electric actuator offers strong and reliable performance, delivering up to 1300lb of pushing force and 700lb of pulling force. Its customizable stroke length ranges from 25mm to 600mm, and the short retracted length ensures easy integration into space-limited applications. With an IP66-rated waterproof design, it performs reliably even in harsh or outdoor environments. Paired with the LS-RSK-1 single actuator control unit, the system enables effortless motion control via a wireless remote—simple, efficient, and user-friendly.

Specifications:

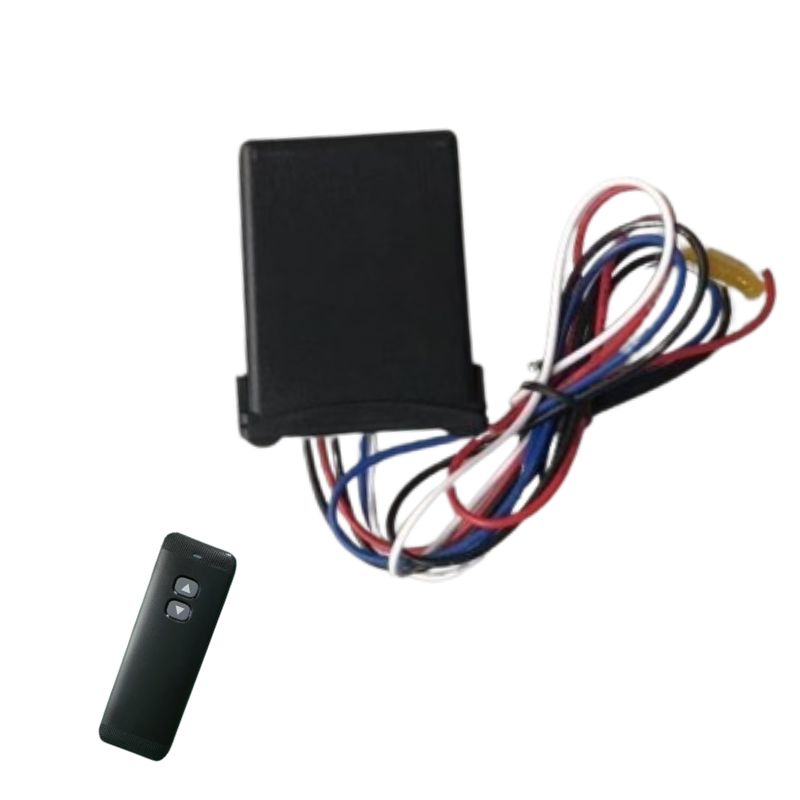

Actuator LS-PAT-26	Control Unit LS-RSK-1
Voltage: 12V / 24V	Voltage: 12V / 24V
Max. load force: 1300lb	Max. current: 15A
Stroke: 1" - 23.5"	Operation :Wiress remote ( Wired switch is optional)
Close length: ＞7"	Remote range: 30 meters
Position feedback: Hall sensors; POT	Frequency: 433.92MHz
IP rating: IP66	IP rating: IP66
Color: Grey; Black	Color: Black

Features:

Slim-profile actuator for space-saving installation
High thrust output suitable for light industrial applications
IP66-rated actuator and controller for enhanced protection
Durable construction with high load capacity and premium quality

Applications:

Medical chair,

healthcare equipment,

patient lift,

automotive conversion

12V DC Heavy-Duty Electric Actuator Remote Control Kit 1300lb Load IP66 0

12V DC Heavy-Duty Electric Actuator Remote Control Kit 1300lb Load IP66 1

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
