3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor

3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor
3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Model Number: LS-PAT-65+LS-RSK-H1
Minimum Order Quantity: 1 piece
Price: USD 219- USD 699/PC
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 1000pcs/month
Get Best Price Contact Now
Voltage: 12V / 24V Load Force: 1000N / 2000N
Stroke: 200mm - 400mm Retracted Length: ≧Stroke/2+150mm
Max. Speed: 9mm/s (full Load) ; 16mm/s (free Load) IP Rating: IPX6
Max. Dynamic Bending Moment: 500Nm Max. Static Bending Moment: 1000Nm
Limit Switch: Built-in Position Feedback: Hall Sensors
Color: Silver
Highlight:

3-stage telescopic lifting column

,

round lifting column actuator

,

24V DC motor lifting column









                  Round Telescopic Column 3-Stage 2000N Max. Thrust DC Motor 24V 12V Control System

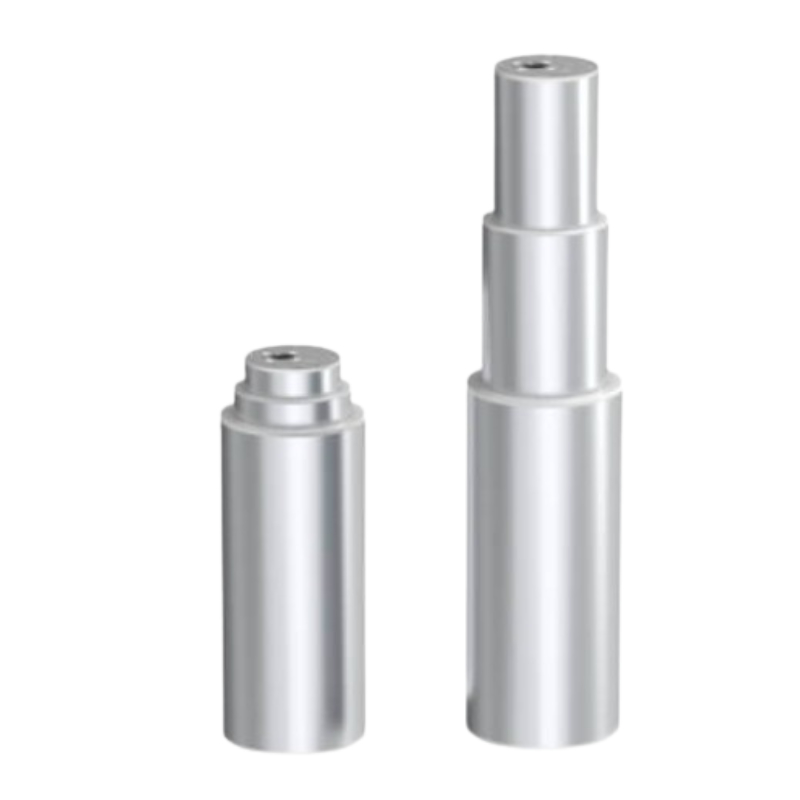

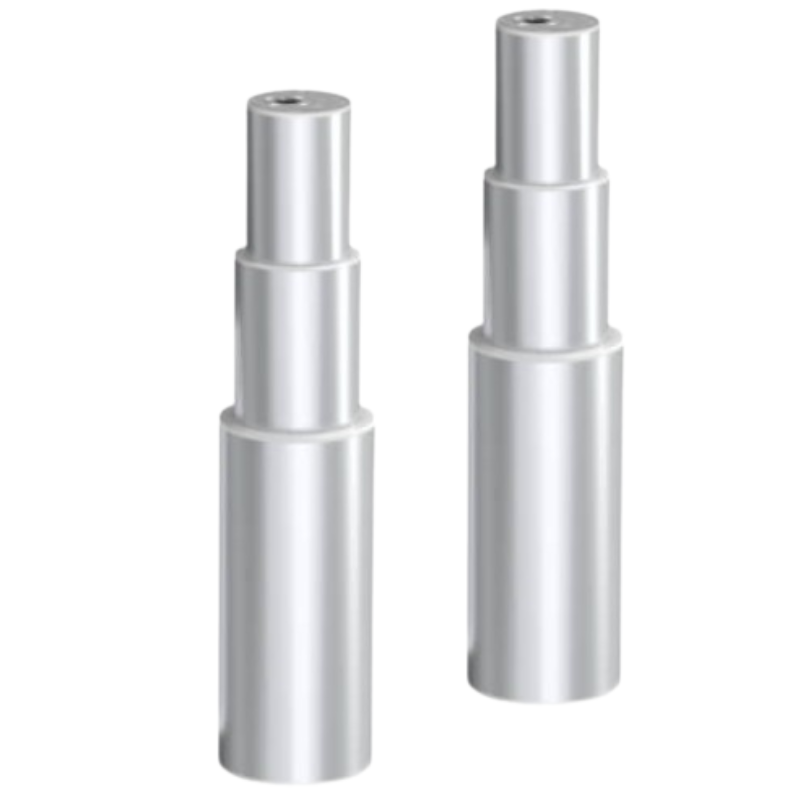

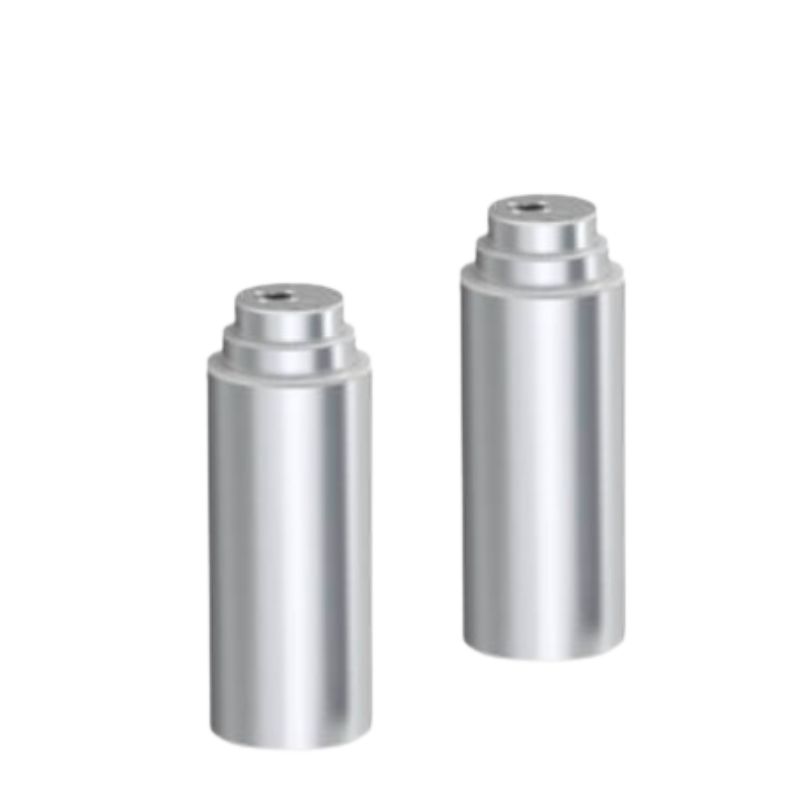

The LS-PAT-65 lifting column features a three-stage design with a round outer profile measuring 144 mm in diameter. It delivers a maximum thrust of up to 2000 N and supports a customizable stroke range of 200 mm to 400 mm. Equipped with Hall sensor position feedback, it works seamlessly with Linsheng’s two-way Hall effect synchronization control system. This system is widely used in height-adjustable tables, examination equipment, and workbenches, offering exceptional stability and convenient remote operation.







Specifications:

Column model LS-PAT-65
Load force 1000N / 2000N
Stroke 200mm - 400mm
Max. bending moment 500Nm (Dynamic) ; 1000Nm(Static)
Max. speed 9mm/s (Full load); 16mm/s(No load)

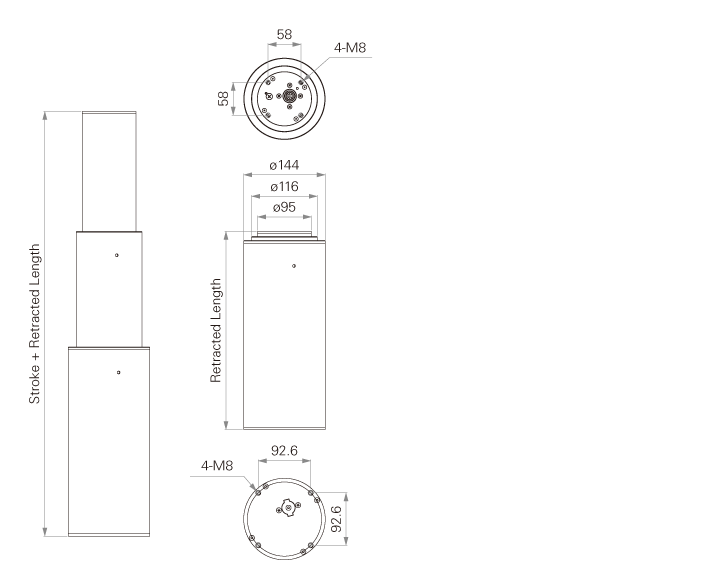

Outer profile ∅144mm; 3 stage
Limit switches Built in
Position feedback Hall sensors
Color Silver

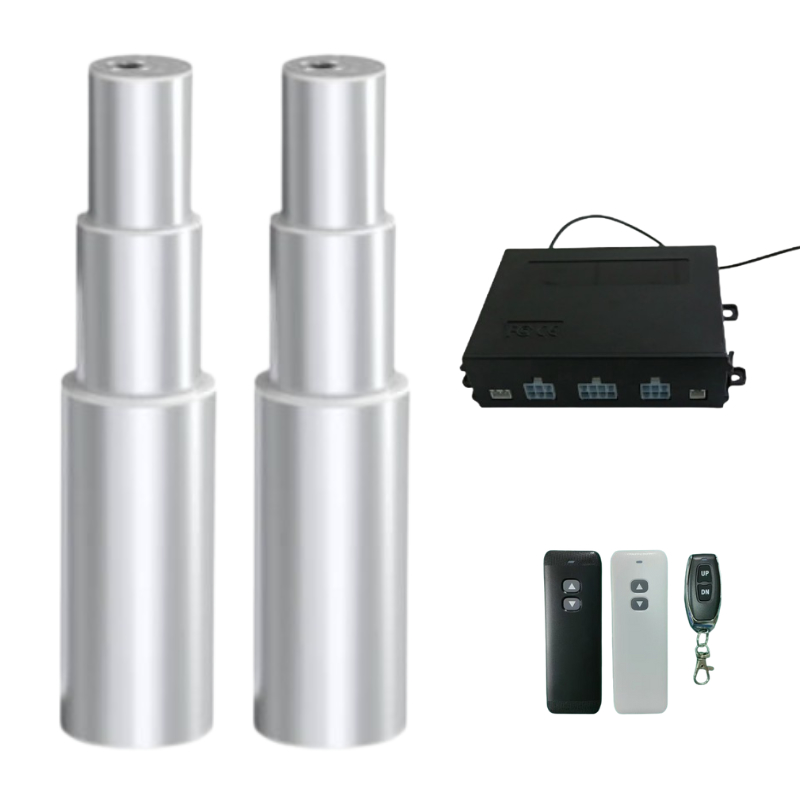

Control system LS-RSK-H1
Voltage 12V-28VDC
Max. current 25A
Color Black
Frequency 433.92Mhz
Safety protection Inbuilt
Connection Plug-and-play
Operation Wired switch and wirless remote control







Features:

1. Compact size, stable performance

2. Two piallrs work in sync

3. Remote and switch two operations







Applications:

Worktable upgrades and modifications
Custom workbench construction
Height-adjustable counters and tables

3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 0

3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 1

3-Stage Round Telescopic Lifting Column 2000N Thrust 24V DC Motor 2

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
