1500lb Heavy-Duty Linear Actuator 24VDC Drive IP69K Rugged Industrial Electric Cylinder

Basic Information

Place of Origin:	China
Brand Name:	Linsheng Auto II MaxM
Model Number:	LS-PAT-44

Minimum Order Quantity:	1 piece
Price:	USD99~299/PC
Packaging Details:	Carton
Delivery Time:	2 weeks
Payment Terms:	L/C, T/T, PayPal
Supply Ability:	1000pcs/month

Get Best Price Contact Now

Voltage:	DC24V	Max. Load Force:	1700lb
Speed:	0.04"/s - 2.5"/s	Stroke:	25mm - 1000mm
IP Rating:	IP69K	Max. Current:	12A
Limit Switch:	Builtl-in	Signal Output:	POT / Hall Sensors
Working Temperature:	-40 ~ +85 Degree Celsius

1500lb Heavy-Duty Linear Actuator 24VDC Drive IP69K Rugged Industrial Electric Cylinder

This heavy-duty DC industrial actuator is engineered for demanding environments, offering reliable protection up to IP69K. With a maximum push and pull force of 1700 lb, its rugged construction ensures durability, while customizable stroke lengths and multiple attachment options provide flexibility for a wide range of industrial applications.

Specifications:

Voltage	24VDC
Max.thrust	1700lb (Push/Pull)
Speed	0.04"/s - 2.52"/s
Stroke	1" ~ 39"
IP rating	IP69K
Limit switches	Built in
Signal output	Hall sensors / POT
Working temperature	-40 ~ +80 degree celsius

Features:

* 1700 lb high push and pull force

* Robust design with high-level IP protection

* Powerful performance with customizable long stroke options

Applications:

Renewable Energy & Construction
Solar panel tracking systems
Adjustable platforms and lifting systems

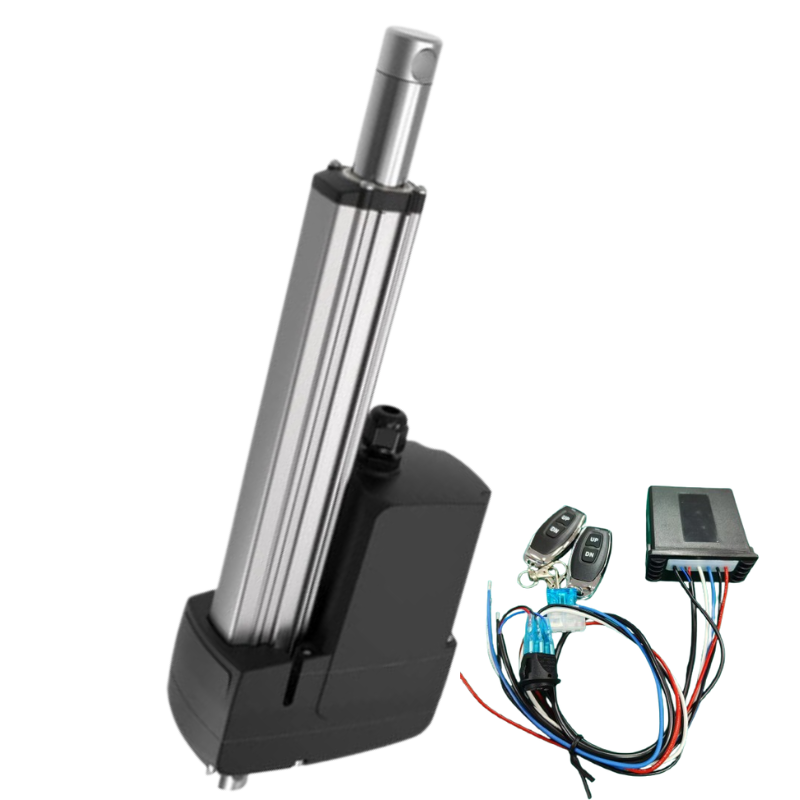

* The Linsheng LS-RSK-1 one-way heavy-duty actuator control system offers users two operation modes for simple and convenient actuator control. It features a built-in overload protection function to safeguard both the actuator and the control system.

1500lb Heavy-Duty Linear Actuator 24VDC Drive IP69K Rugged Industrial Electric Cylinder 0

1500lb Heavy-Duty Linear Actuator 24VDC Drive IP69K Rugged Industrial Electric Cylinder 1

1500lb Heavy-Duty Linear Actuator 24VDC Drive IP69K Rugged Industrial Electric Cylinder 2

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
