Place of Origin: | China |
---|---|
Brand Name: | Linsheng Auto II MaxM |
Model Number: | LS-INLA-4 |
Minimum Order Quantity: | 1 piece |
Price: | USD 99 ~USD 299/PC |
Packaging Details: | Carton |
Delivery Time: | 2 weeks |
Payment Terms: | L/C, T/T, PayPal |
Supply Ability: | 1000pcs/month |
Voltage: | DC24V / 12V | Load Force: | 3000N |
---|---|---|---|
Speed: | 6mm/s (free Load); 3mm/s (rated Load) | Stroke: | 20mm - 500mm |

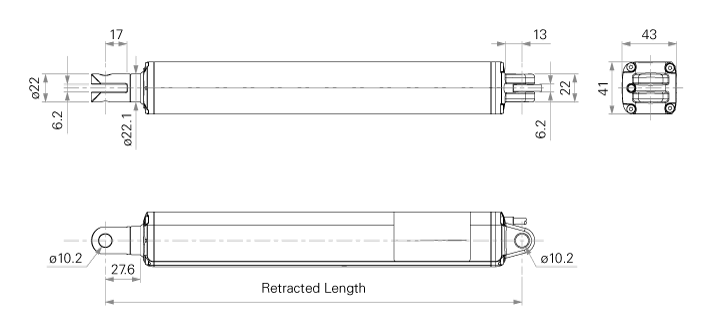

Retracted Length: | ≧ Stroke+248mm | Signal Output: | Hall Sensors |
IP Rating: | IP66 | Working Temperature: | -20°C~+60°C |
Limit Switches: | Built In |

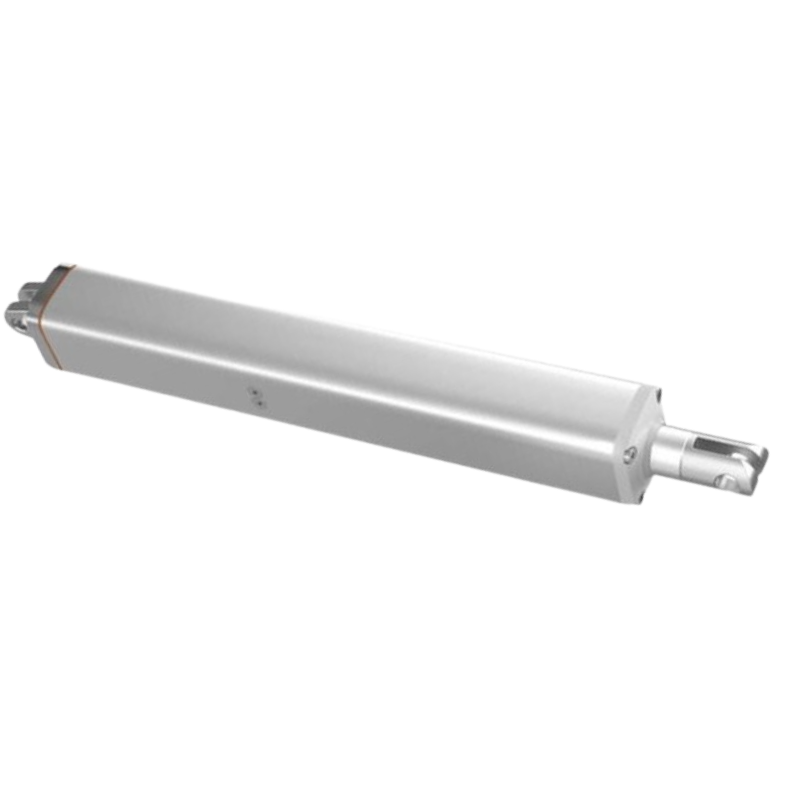

High-quality Aluminum Actuator DC 24V 3000N IP66 for Greenhouse Building Ventilation
The LS-INLA-4 inline actuator is powered by a 12V/24V DC motor and delivers up to 3000N thrust. It is specially designed for ventilation systems to rapidly exhaust smoke and heat during a fire, helping maintain a safer smoke layer near the floor. Built with durable aluminum, it is well-suited for building and greenhouse applications.
Specifications:
Model | LS-INLA-4 |
Load force | 3000N (300KG) |
Voltage | 12V / 24V DC |
Speed | 3mm/s - 6mm/s |
Stroke | 20mm - 500mm |
IP rating | IP66 |
Limit switches | In-built |
Signal output | Hall sensors |
Features:
- High-quality aluminum Construction
- Long-lasting durability
- Precision control
Applications:
- Industrial Smoke Extraction
- Automated Greenhouse Window System
- Building ventilation
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
