Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation

Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation
Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation
Basic Information
Place of Origin: China
Brand Name: Linsheng Auto II MaxM
Model Number: LS-PAT-1
Minimum Order Quantity: 1 piece
Price: 79USD/PC~299USD/PC
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, PayPal
Supply Ability: 500pcs/month
Get Best Price Contact Now
Features: Compact, Silent, Weather-resistant, Durability Voltage: DC 12V-24V
Thrust: 2000N / 4000N / 6000N Noise Level: ≤58dB
Stroke: 50mm - 1000mm Mini. Retracted Length: ≧ 230mm
Options: Manual Drive Limit Switches: In-built
Singal Output: POT / Hall Sensors Working Temperature: -25℃~+65℃
Max. Speed: 7mm/s (Free Load); 3mm/s (Full Load) IP Rating: IP66 / IP69
Cable Length: Straight Cable 2000mm Rated Current: Max. 6.5A (24V)
Highlight:

≤58dB Electric Linear Actuator

,

6000N Thrust DC Linear Actuator

,

Home Office Automation Linear Actuator

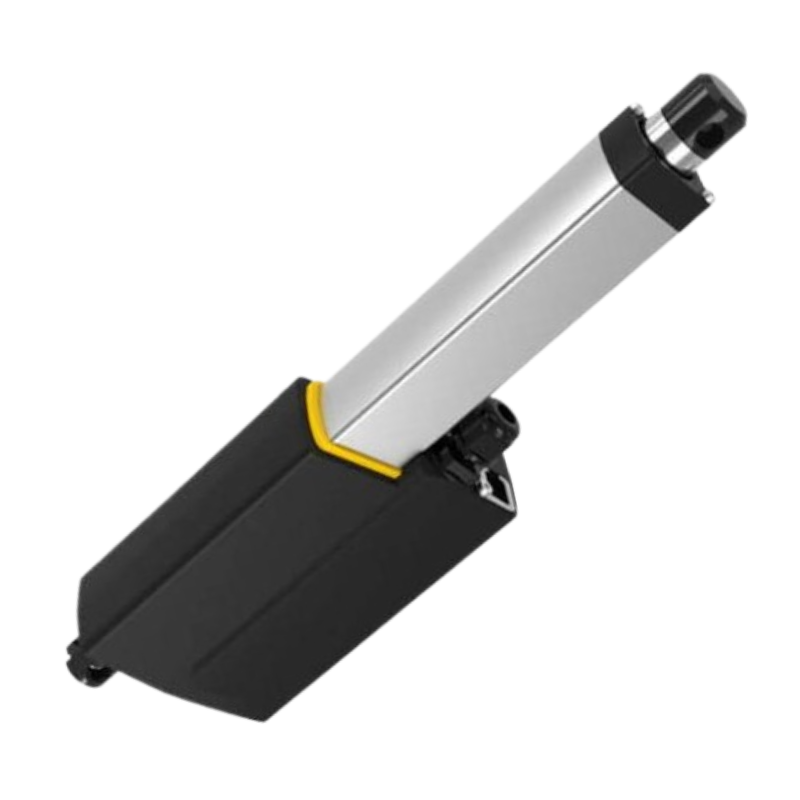

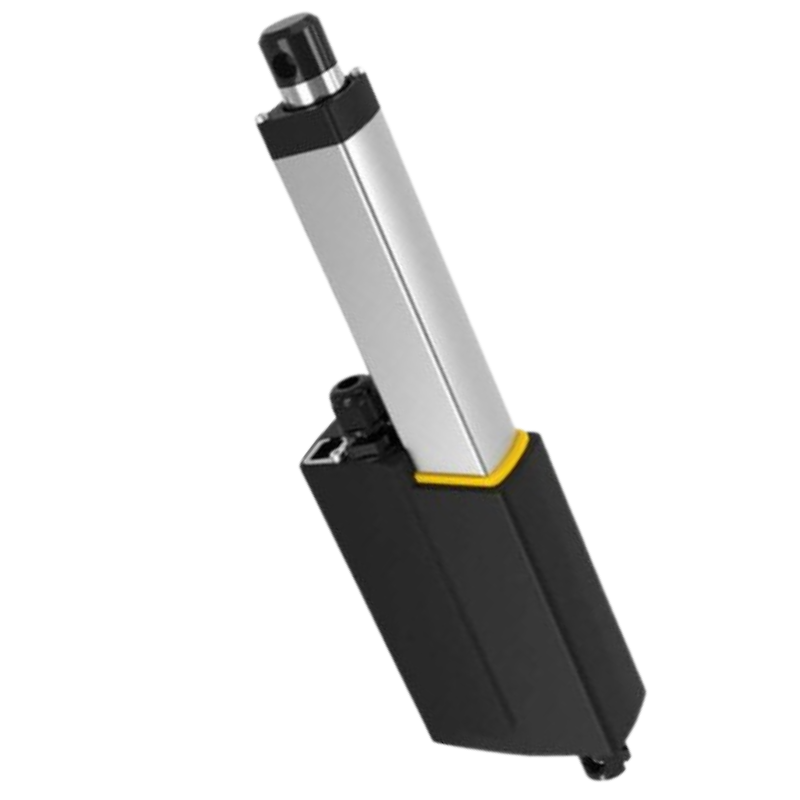

                 Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation







LS-PAT-1 DC actuator is an industrial-grade linear actuator engineered for applications demanding a quiet and resilient solution. It combines robust construction, a high IP69K rating, and strong thrust, making it the ideal choice for light industrial automation.







Specifications:

Working voltage 12V / 24V DC
Load capacity Max. 6000N (Push); 4000N(Pull)
Stroke 50mm - 1000mm

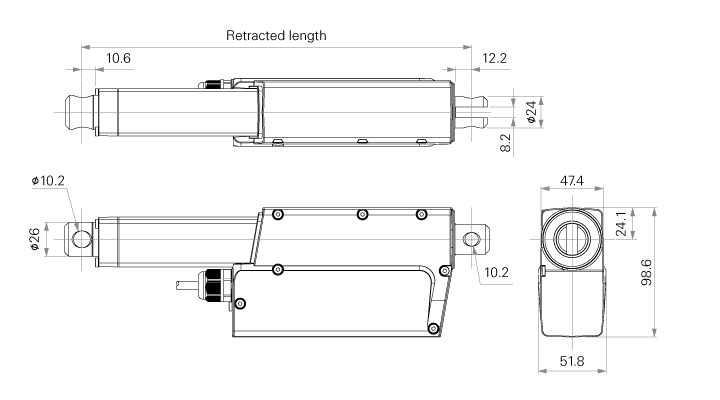

Mini. installation length ≧230mm
Max. speed 3mm/s (Full load); 7mm/s (No load)
Limit switches Built in
Output signals Hall sensors / POT
Noise level ≤58dB
Working temperature -25℃~+65℃
Options Manual Drive







Features:

* IP rating up to IP69 for demanding environment

* Max. load capacity is 600KG (Push)

* Travle quietly

* Long customizable stroke



Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation 0

Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation 1Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation 2

Low-noise DC Electric Linear Actuator 12V 6000N Thrust For Home Office Automation 3









About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.




Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.




Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
