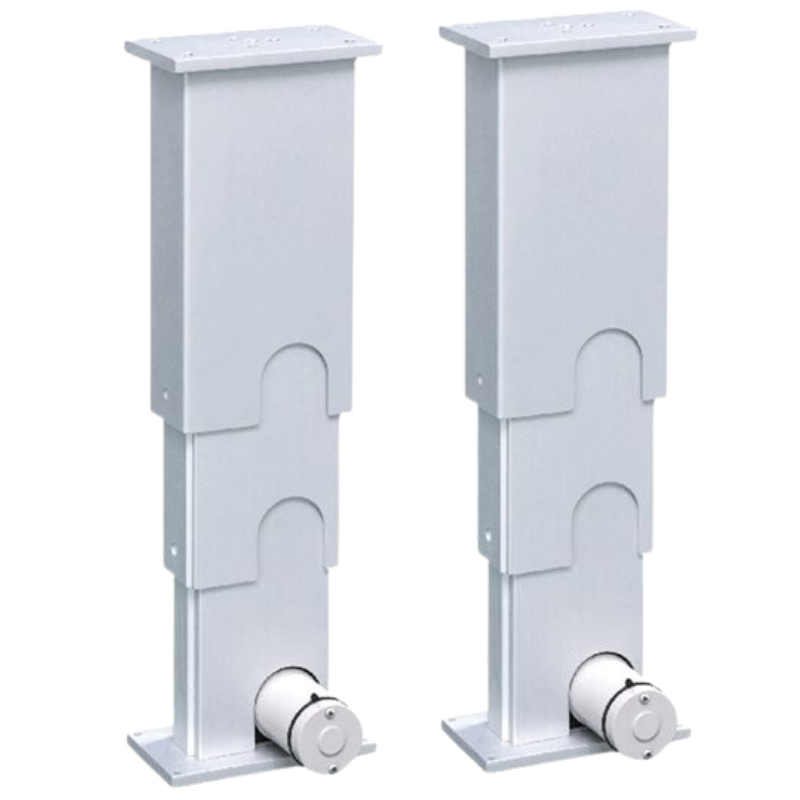

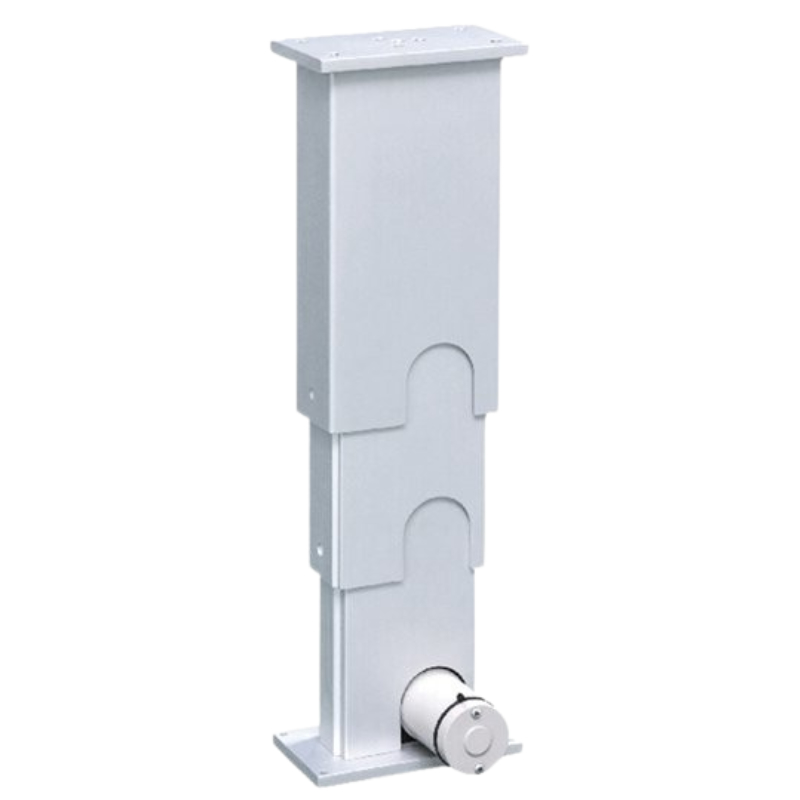

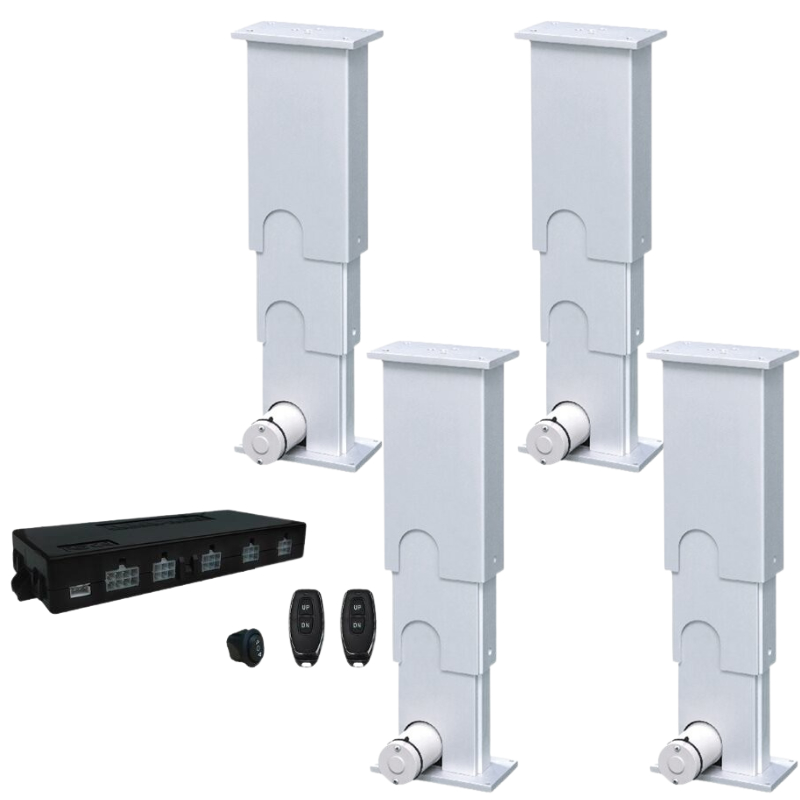

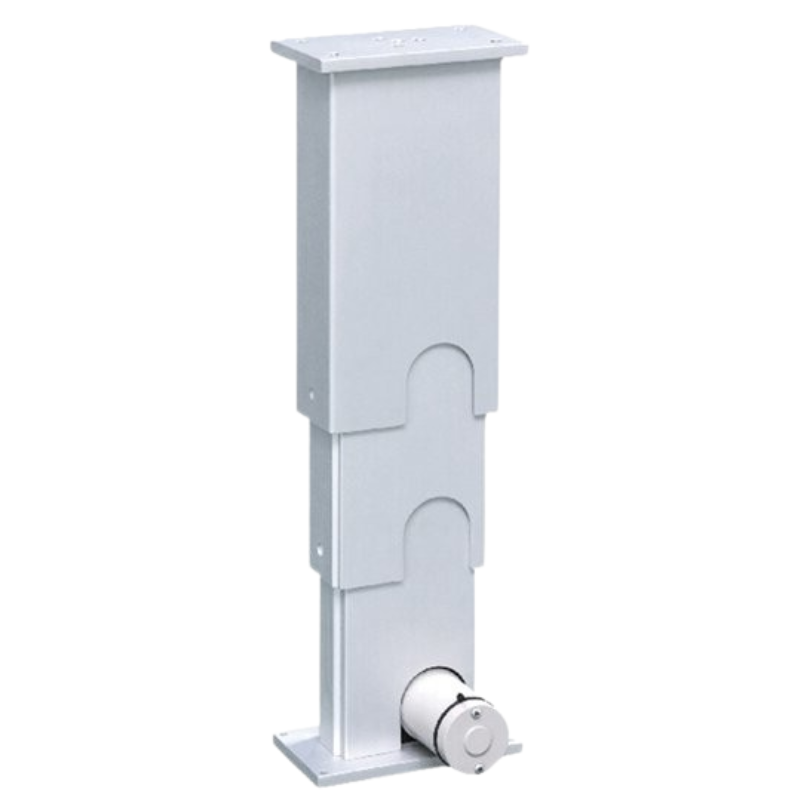

Four Hall Effect Telescopic Motorized Columns DC24V with Wired and Wireless Remote Operation

Product Description:

DC-powered telescopic lifting columns provide precise, quiet, and stable vertical motion, making them ideal for a wide range of uses. In industrial automation, they raise or lower workbenches, platforms, and operator panels to achieve ergonomic, efficient production. In office and furniture systems, they power sit-stand desks, conference tables, and adjustable workstations for user comfort.

Compact, customizable, and energy-efficient, these lifting columns are the perfect choice for any application requiring safe and flexible height adjustment.



Controller Features:

• Model: LS-RSK-H4
• Working voltage: DC 12V- 28V
• Max. current: 25A
• Operation: Wired switch and Wireless remote control
• Remote range: 30 meters
• Frequency: 433.92Mhz
• Remote modes: Momentary and non-momentary
• Protection : In-built overcurrent safety protection
• Function: Synchronize 2 Hall effect lifting column motion (UP/DOWN/STOP) in any situation

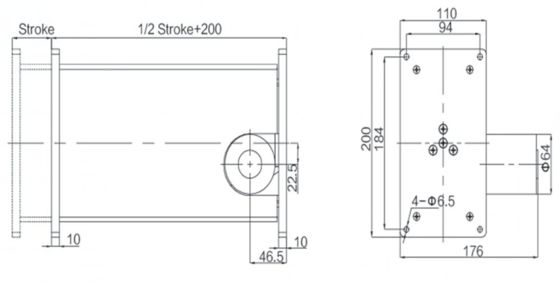

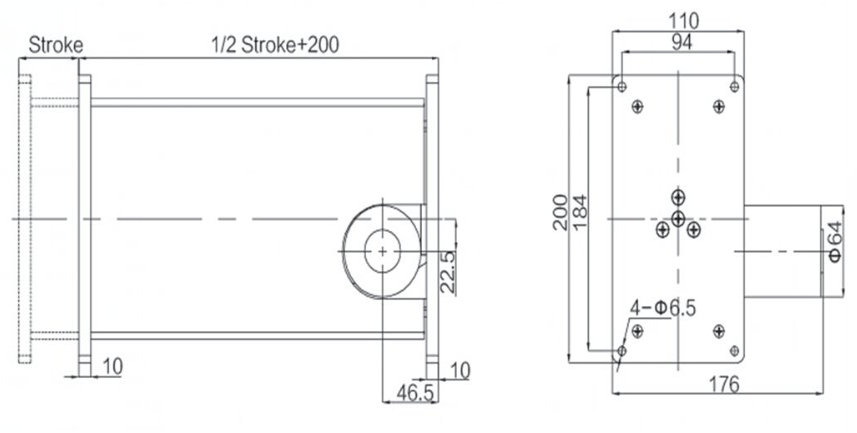

Lifting Column Technical Parameters:

Working Temperature	-15℃ - +45℃
Stroke	Customize
Load force	2000N
Speed	8mm/s - 25mm/s
Signal Output (optional)	Hall Sensors
Working Voltage	DC 12V, 24V
Limit switches	Built in
Duty Cycle	10% (2 Min. ON/18 Min. OFF)
Speed	8mm/s - 25mm/s
Color	Grey, Black
IP rating	IP20



Applications:

They combine compact design, customizable stroke, and low-voltage safety, making them suitable for both industrial and everyday ergonomic applications.

Home automation lifts – Used in smart TV lifts, kitchen counters, or hidden storage mechanisms.

Adjustable standing platforms – For home workshops, studios, or DIY projects requiring stable lift motion.



Support and Services:

The Lifting Column Actuator is a versatile product designed to provide smooth and reliable vertical movement in various applications. Our Product Technical Support team is dedicated to assisting customers with any inquiries regarding the installation, operation, and maintenance of the actuator. We offer a range of services, including troubleshooting assistance, product customization options, and recommendations for optimizing performance.



Packing and Shipping:

Product Packaging for Lifting Column Actuator:

- The lifting column actuator will be securely packed in a sturdy cardboard box to prevent any damage during transportation.

- The product will be surrounded by protective packaging materials to cushion it against any impact.

Shipping Information:

- The lifting column actuator will be shipped via a trusted courier service to ensure safe and timely delivery.

- Customers will receive a tracking number to monitor the status of their shipment.

- Shipping times may vary depending on the destination, but we strive to deliver orders promptly.
